Allied Telesis AT-S60 - Manual (Page 752)

Chapter 40: SNMPv3 Protocol
Section VI: Web Browser Management 752
Displaying
Target Address
Table Entries
To display entries in the SNMPv3 Target Address Table, perform the
following procedure.
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the SNMP Tab.
The SNMP Monitoring Tab is shown in Figure 195 on page 596.
3. From the SNMP Monitoring Tab, click the circle next to View Target
Address Table.
4. Click View at the bottom of the page.
The Monitoring, SNMPv3 Target Address Table Page is shown in
Figure 272.

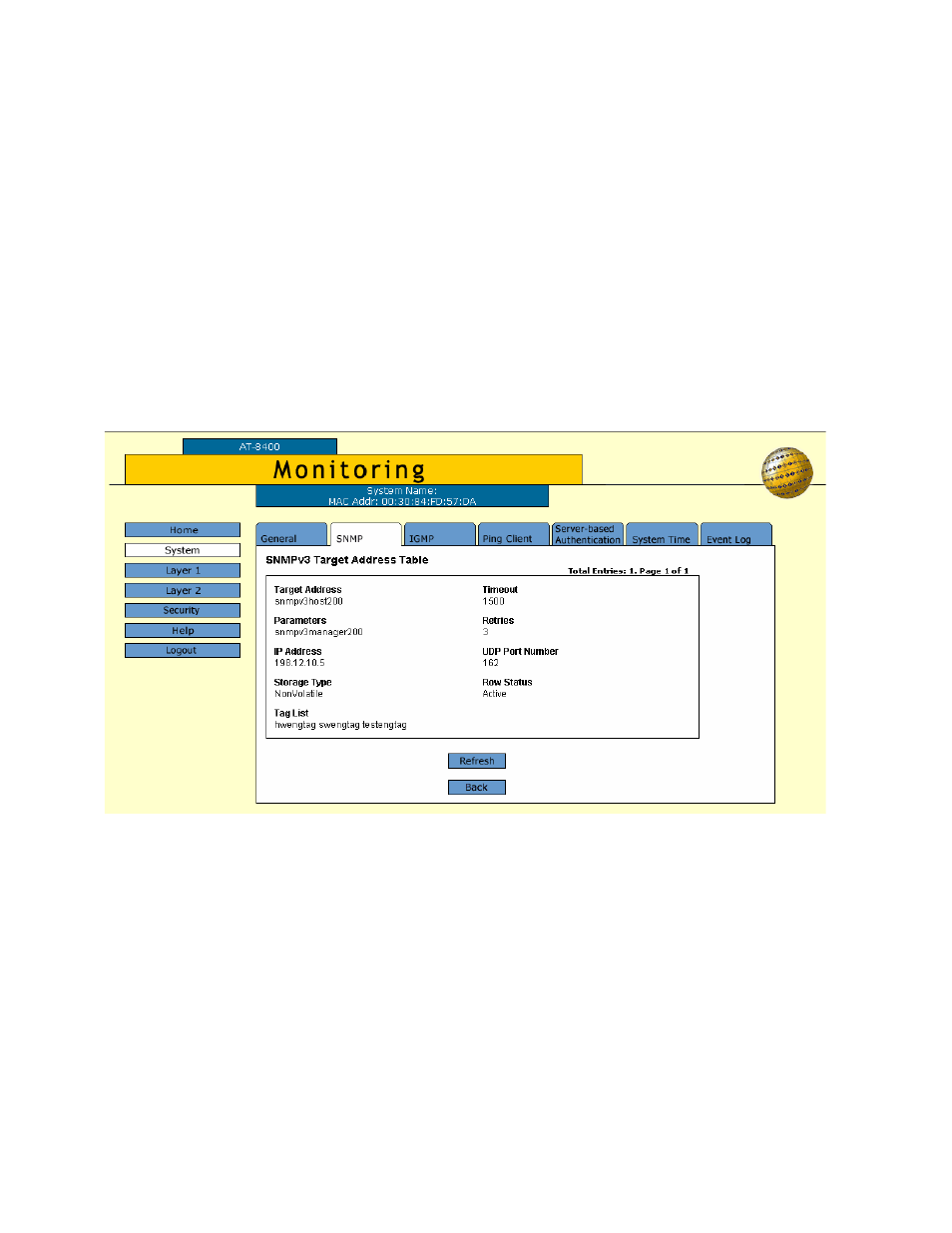

Figure 272 Monitoring, SNMPv3 Target Address Table Page
