Chapter 11: File Downloads and Uploads
Section II: Advanced Features 190
Uploading an Image File Using Xmodem
To upload an image file using Xmodem (this procedure shows how to
use the Hilgraeve HyperTerminal program), perform the following
procedure:
1. Type X at the prompt displayed in Step 4 in the procedure that begins
on page 187.
The following prompt is displayed:
You are going to invoke the Xmodem upload utility.
Do you wish to continue? [Yes/No]
2. Type Y.
The following prompt is displayed:
Use HyperTerminal’s ‘Transfer/Receive File’ option
to select Protocol
3. In the HyperTerminal main window, select the Transfer menu. Then
select Receive File from the pull-down menu, as shown in Figure 55.

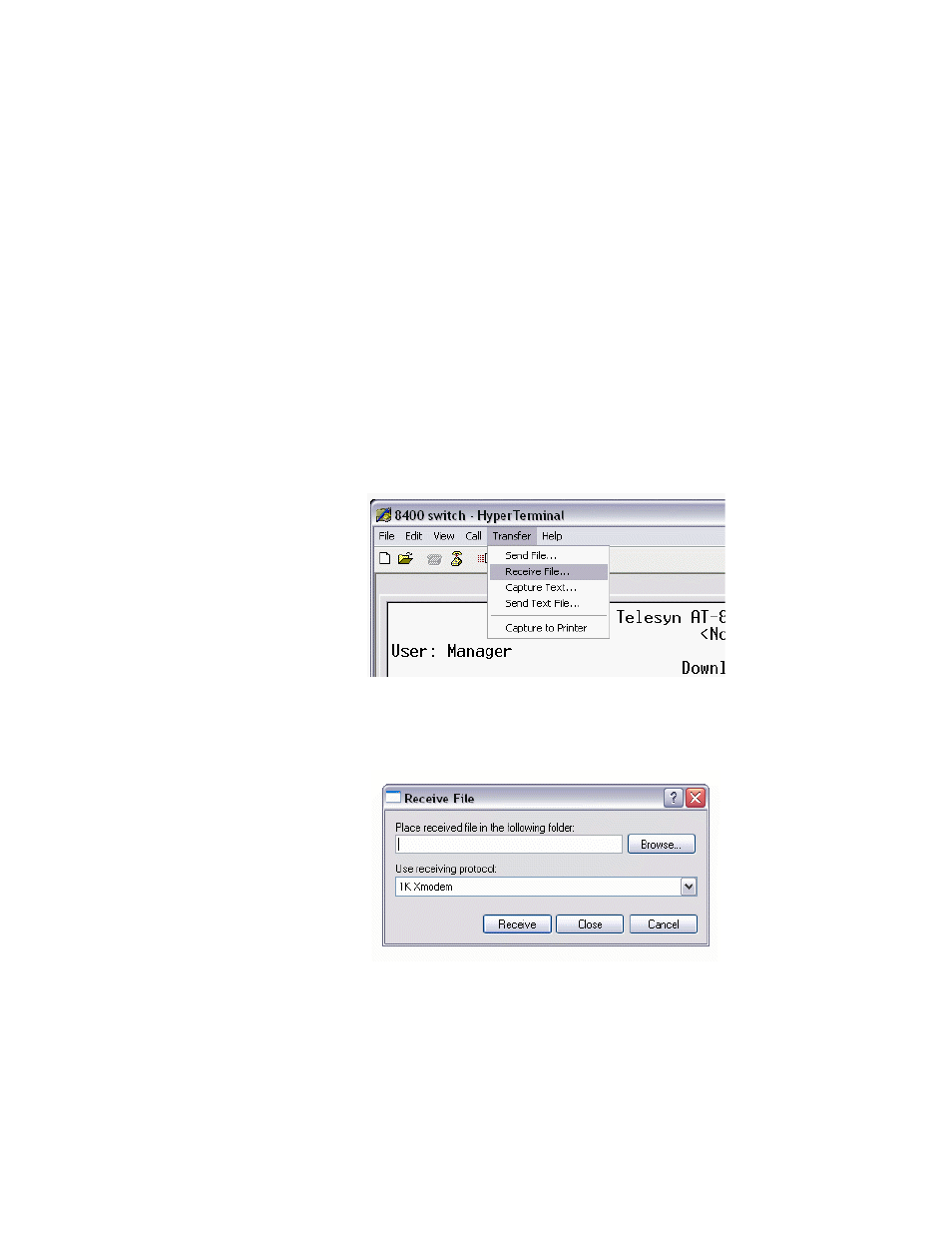

Figure 55 Transfer Menu
The Receive File window is shown in Figure 56.
Figure 56 Receive File Window
4. In the Place received file in the following folder field, type the path to
the destination folder, or click the Browse button to locate the
destination folder.
