AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 685
Creating,
Deleting, or
Modifying MSTI
IDs
To create, delete, or modify MSTI IDs, perform one of the following
procedures.
Creating an MSTI ID
To create an MSTI ID, do the following:
1. Display the Spanning Tree Expanded Page for MSTP by performing
Steps 1 through 4 in the procedure Configuring MSTP Parameters on
page 681.
2. In the CIST/MSTI Table section of the tab, click Add.
The Add New MSTI Page is displayed as shown in Figure 236.

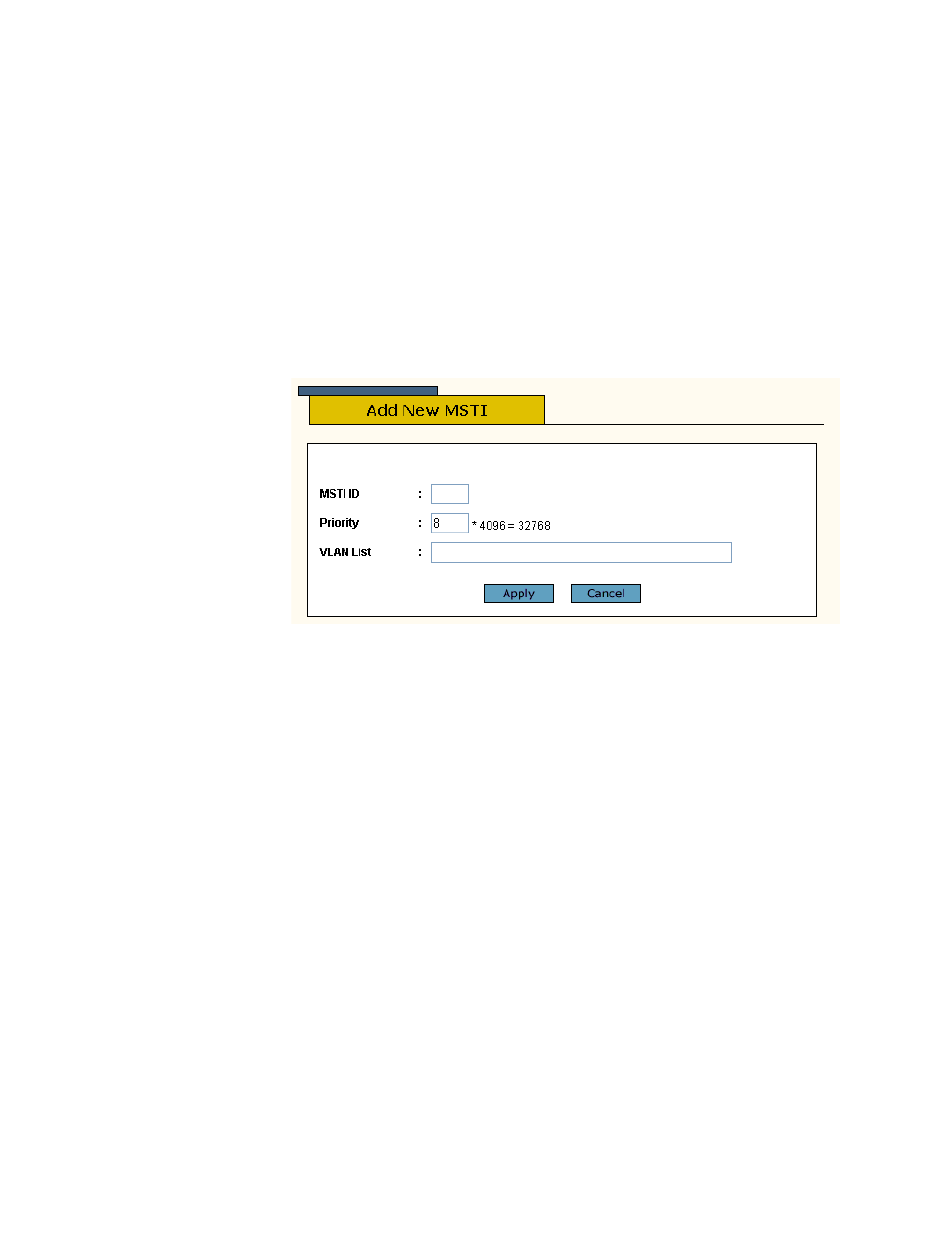

Figure 236 Add New MSTI Page
3. In the MSTI ID field, enter a new MSTI ID. The range is 1 to 15.
4. In the Priority field, enter an MSTI Priority value. This parameter is
used in selecting a regional root for the MSTI. The range is 0 (zero) to
61,440 in increments of 4,096, with 0 being the highest priority. This
parameter is used in selecting a regional root for the MSTI. For a list of
the increments, refer to Table 9, Bridge Priority Value Increments on
page 231. The default is 0.
5. Click Apply.
To save your changes, return to the General Tab and click Save
Changes. The changes you made are saved on the switch.
6. Repeat this procedure to create more MSTI IDs.
