Chapter 43: Port Security
Section VI: Web Browser Management 784
Displaying the Port Security Level
To display the switch’s port security levels, perform the following
procedure:
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Layer 2 option.
The Monitoring Layer 2 Page is displayed with the MAC Address
Tab selected by default, as shown Figure 212 on page 634.
3. Select the Port Security Tab.
A graphical image that reflects the line cards installed in your
chassis is displayed on the Port Security Tab, as shown in Figure
289.

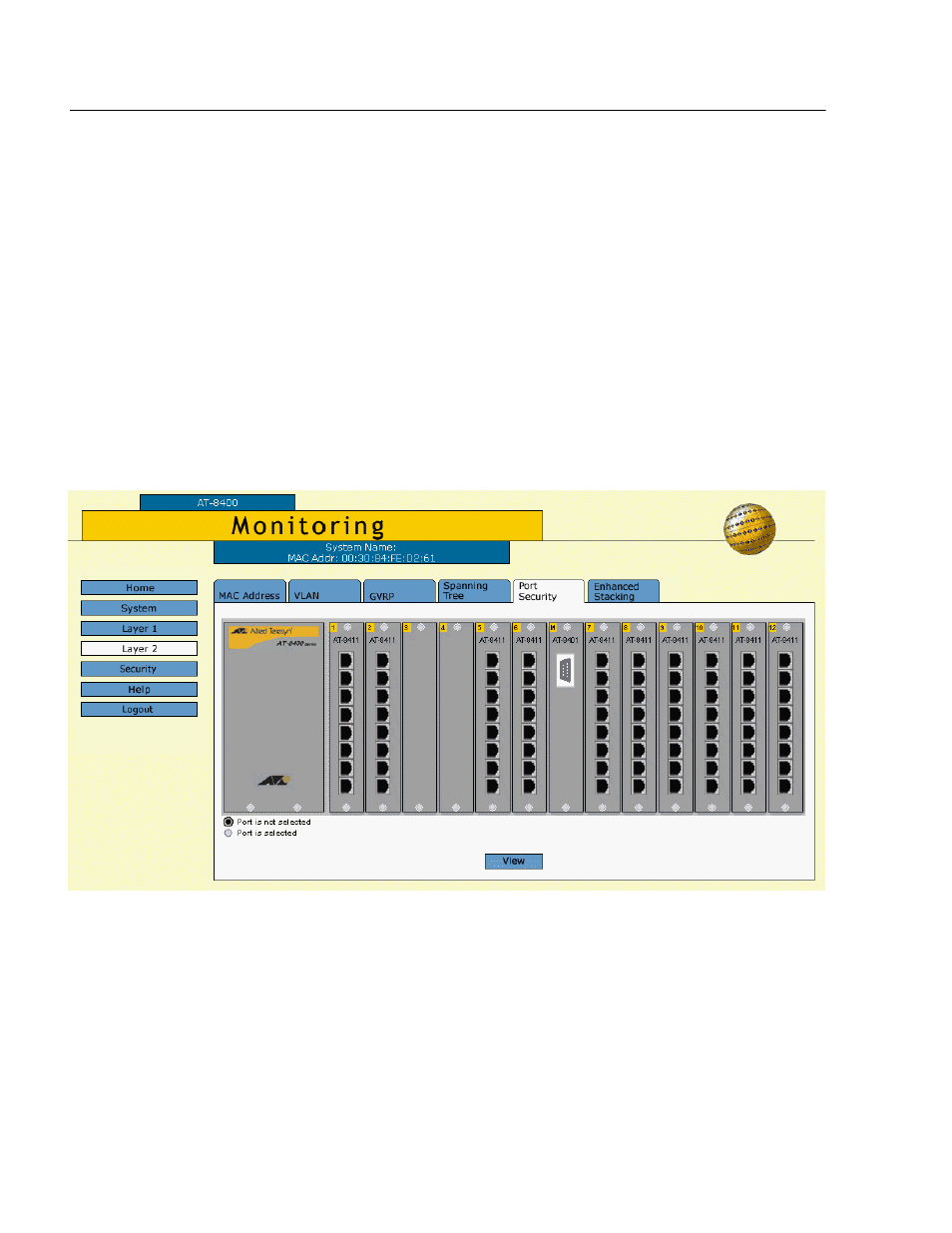

Figure 289 Monitoring Layer 2 Page, Port Security Tab
