Chapter 36: Port Mirroring
Section VI: Web Browser Management 654
Displaying the Port Mirror List
This procedure allows you to view the list of port mirrors using a web
browser management session.
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Layer 1 option.
The Layer 1 Page is displayed with the Port Settings Tab selected
by default, as shown in Figure 209 on page 626.
3. Select the Port Mirroring Tab.
The Port Mirroring Tab is shown in Figure 222.

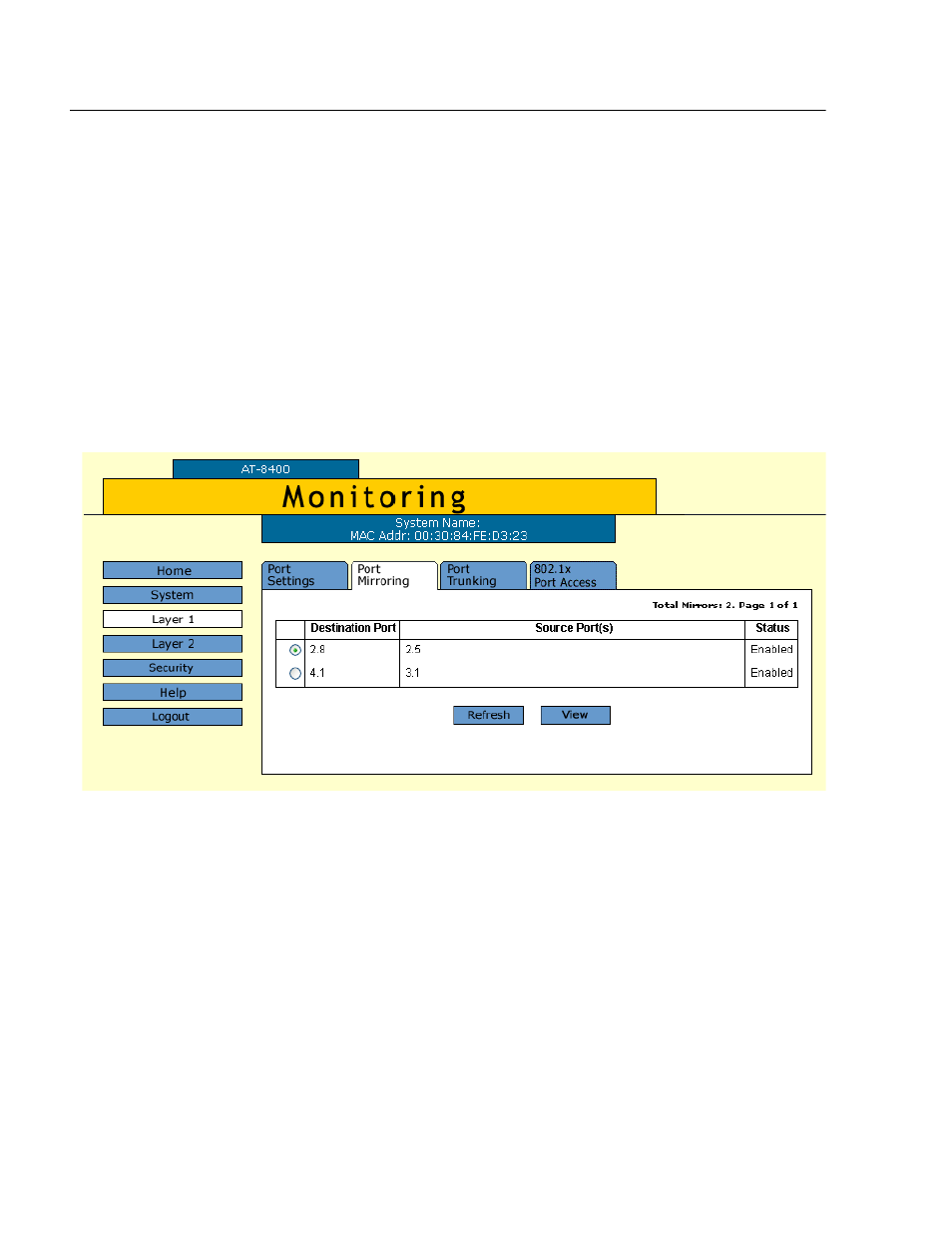

Figure 222 Monitoring Layer 1 Page, Port Mirroring Tab
