AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 753
Displaying
Target
Parameters
Table Entries
To display entries in the SNMPv3 Target Parameters Table, perform the
following procedure.
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the SNMP Tab.
The SNMP Monitoring Tab is shown in Figure 195 on page 596.
3. From the SNMP Monitoring Tab, click the circle next to the View
Target Parameters Table.
4. Click View at the bottom of the page.
The Monitoring, SNMPv3 Target Parameters Table Page is shown
in Figure 272.

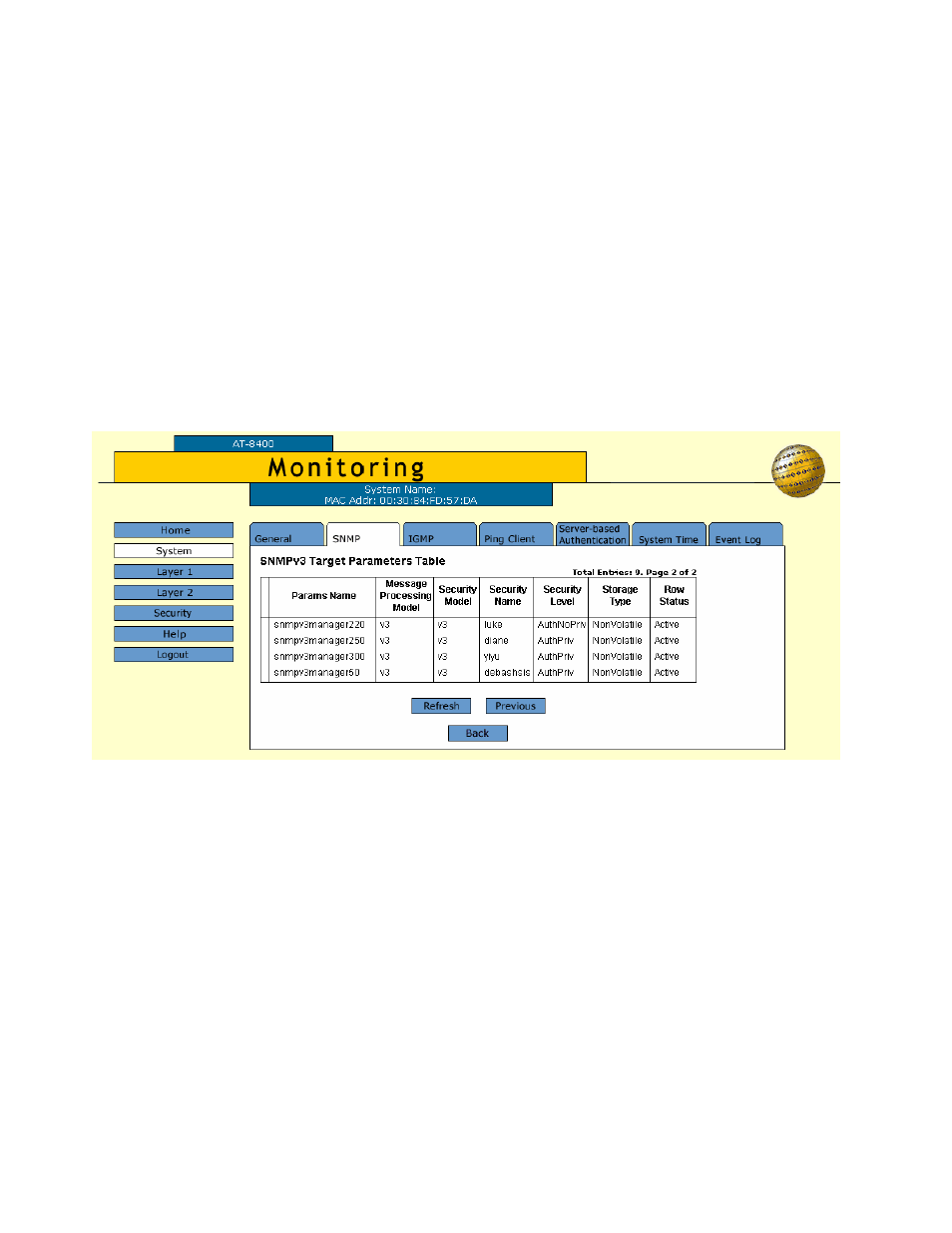

Figure 273 Monitoring, SNMPv3 Target Parameters Table Page
