Chapter 42: GARP VLAN Registration Protocol
Section VI: Web Browser Management 778
Displaying GIP
Connected
Ports Ring
To display the GIP Connected Ports Ring information, perform the
following procedure.
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Layer 2 option.
The Monitoring Layer 2 Page is displayed with the MAC Address
Tab selected by default, as shown Figure 212 on page 634.
3. Select the GVRP Tab.
The GVRP Tab is shown in Figure 283 on page 772.
4. To display the GIP Connected Ports Ring, click the circle next to View
GIP Connected Ports Ring in the View GVRP Parameters section of
the page. Then click View.
The GIP Connected Ports Ring Page is shown in Figure 287 on
page 778.

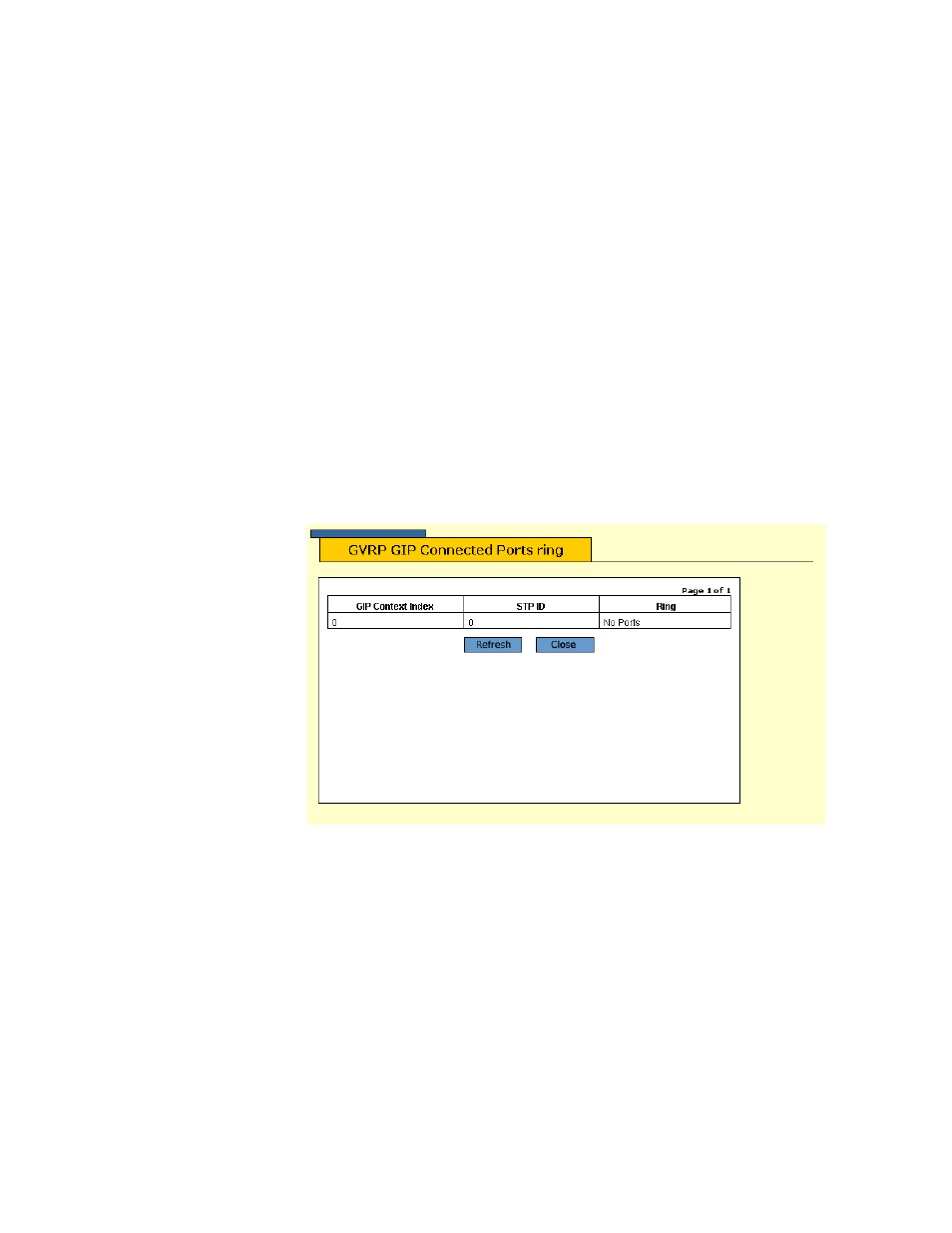

Figure 287 GVRP GIP Connected Ports Ring Page
