Chapter 34: MAC Address Table
Section VI: Web Browser Management 634
Displaying the MAC Address Table
To view the MAC address table, perform the following procedure:
1. From the Home Page, select either Configuration or Monitoring.
If you select Configuration, the Configuration System Page is
displayed with the General Tab displayed by default, as shown in
Figure 192 on page 584.
2. Select the Layer 2 option.
The Layer 2 Page is displayed with the MAC Address Tab shown by
default. Figure 212 shows how this page appears when you
display it through the Configuration main menu selection.
If you display the MAC Address Tab through the Monitoring
main menu selection, the Add button is not included. This button
is used to add static and multicast addresses to the switch. (For
instructions on how to add static and multicast MAC addresses,
refer to the next procedure.)

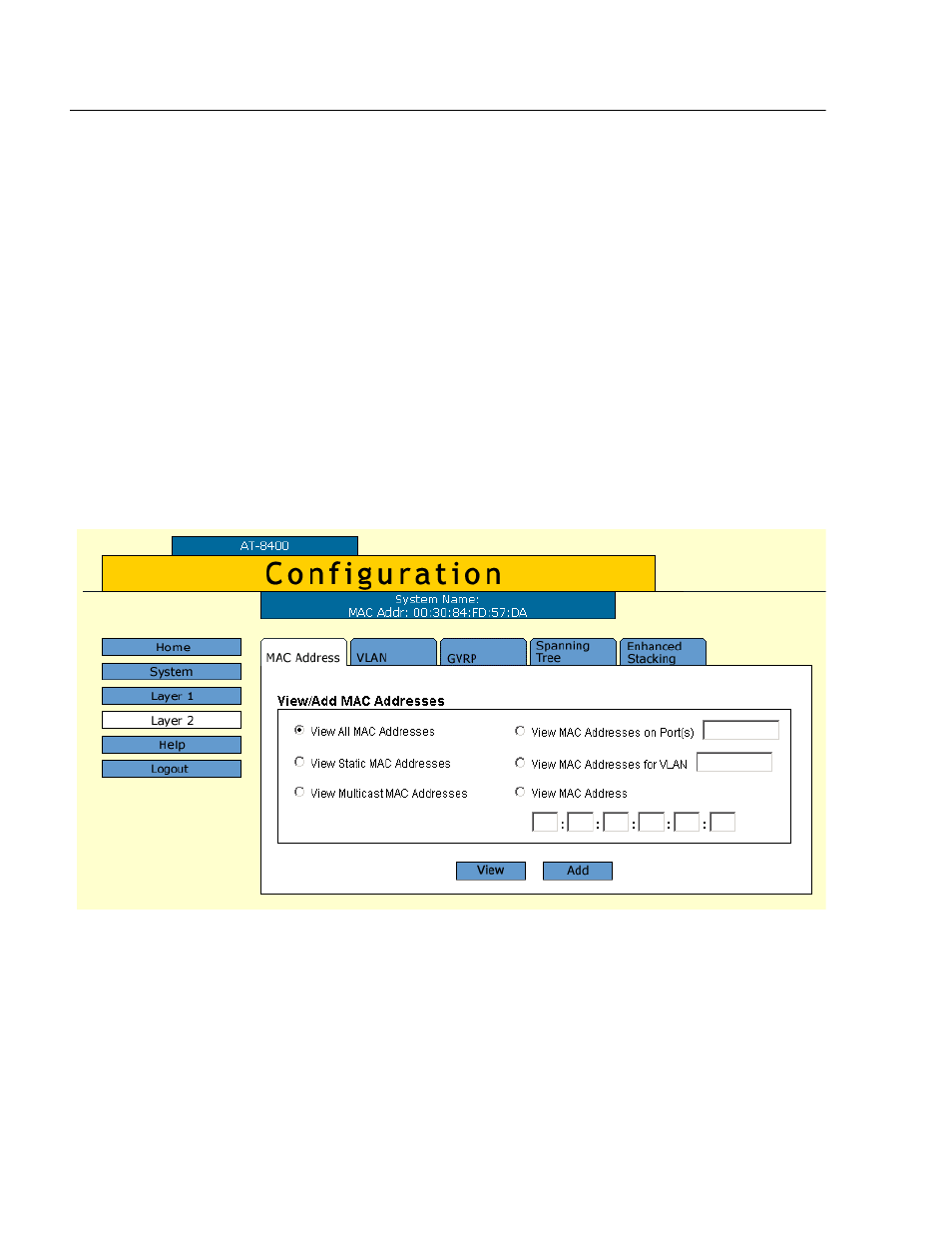

Figure 212 Configuration Layer 2 Page, MAC Address Tab
The options for displaying MAC addresses are described below.
View All MAC Addresses
This option displays both static and dynamic MAC addresses. This
is the default setting.
