Chapter 41: Port-based VLANs
Section VI: Web Browser Management 756
Creating a Port Based VLAN
To create a new port-based or tagged VLAN, perform the following
procedure. Before you create a VLAN, you may want to set the VLAN
mode for a switch. See Setting the Switch’s VLAN Mode on page 765.
1. From the Home Page, select Configuration.
The Configuration System Page is displayed with the General Tab
selected by default, as shown in Figure 192 on page 584.
2. From the Configuration menu, select the Layer 2 option.
The Layer 2 Page is displayed with the MAC Address Tab selected
by default, as shown in Figure 212 on page 634.
3. Select the VLAN Tab.

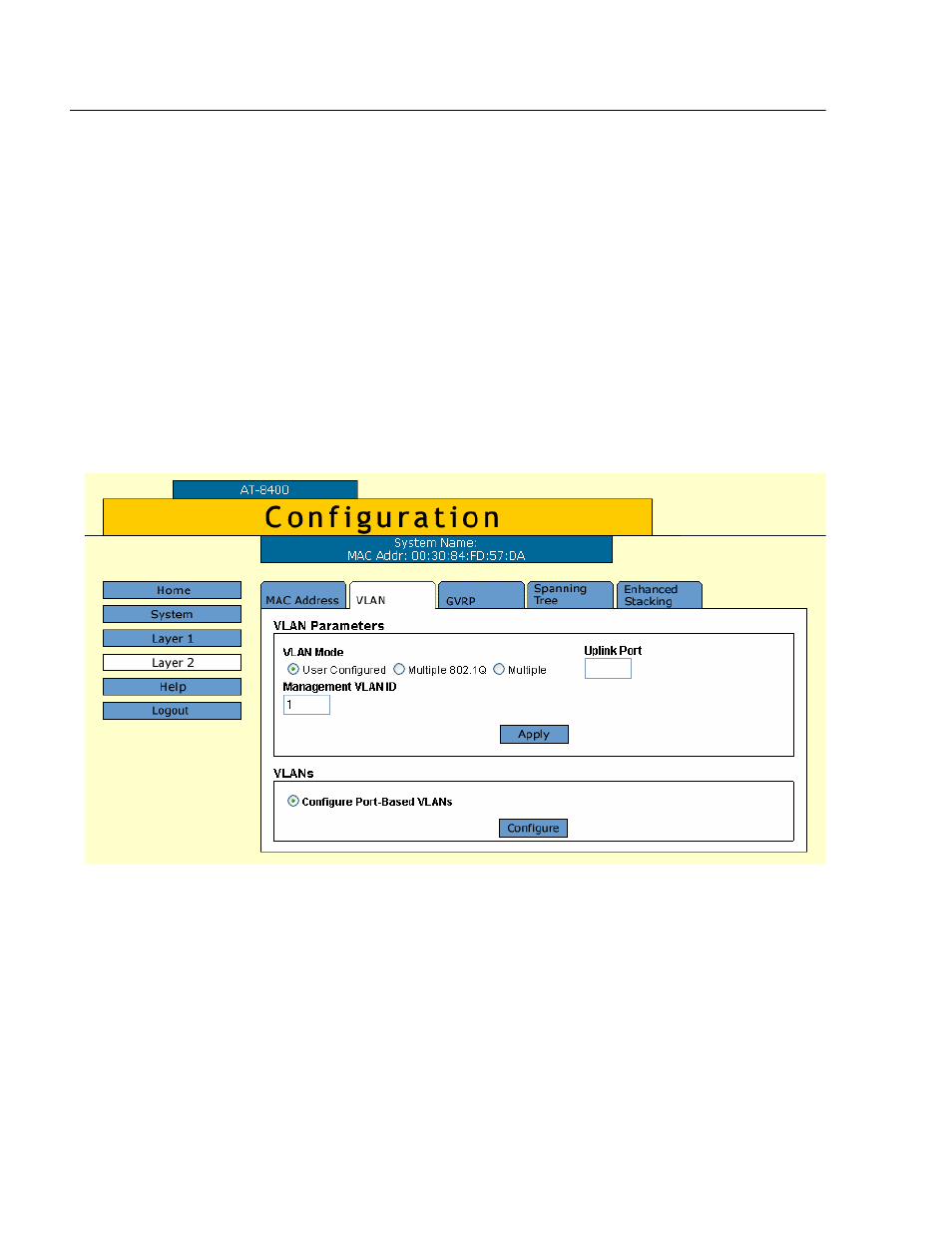

The VLAN Tab is shown in Figure 275.
Figure 275 Configuration Layer 2 Page, VLAN Tab
4. In the VLANs section, click Configure.
The Port-Based VLANs Page is displayed in Figure 276 on page
757.
