900 Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
42
Access Control Lists
Showing ACL Hardware Counters
Use the Security > ACL > Configure Interface (Show Hardware Counters) page to show statistics for
ACL hardware counters.
CLI References
• “show access-list” on page 253
Parameters
These parameters are displayed:
• Port – Port identifier. (Range: 1-12)
• Type – Selects the type of ACL.
• Direction – Selects ingress or egress traffic.
• Query – Displays statistics for selected criteria.
• ACL Name – The ACL bound this port.
• Action – Shows if action is to permit or deny specified packets.
• Rules – Shows the rules for the ACL bound to this port.
• Time-Range – Name of a time range.
• Hits – Shows the number of packets matching this ACL.
• Clear Counter – Clears hit counter for rules in specified ACL.
Interface
To show statistics for ACL hardware counters:
1. Click Security, ACL.
2. Select Configure Interface from the Step list.
3. Select Show Hardware Counters from the Action list.
4. Select a port.
5. Select ingress or egress traffic.

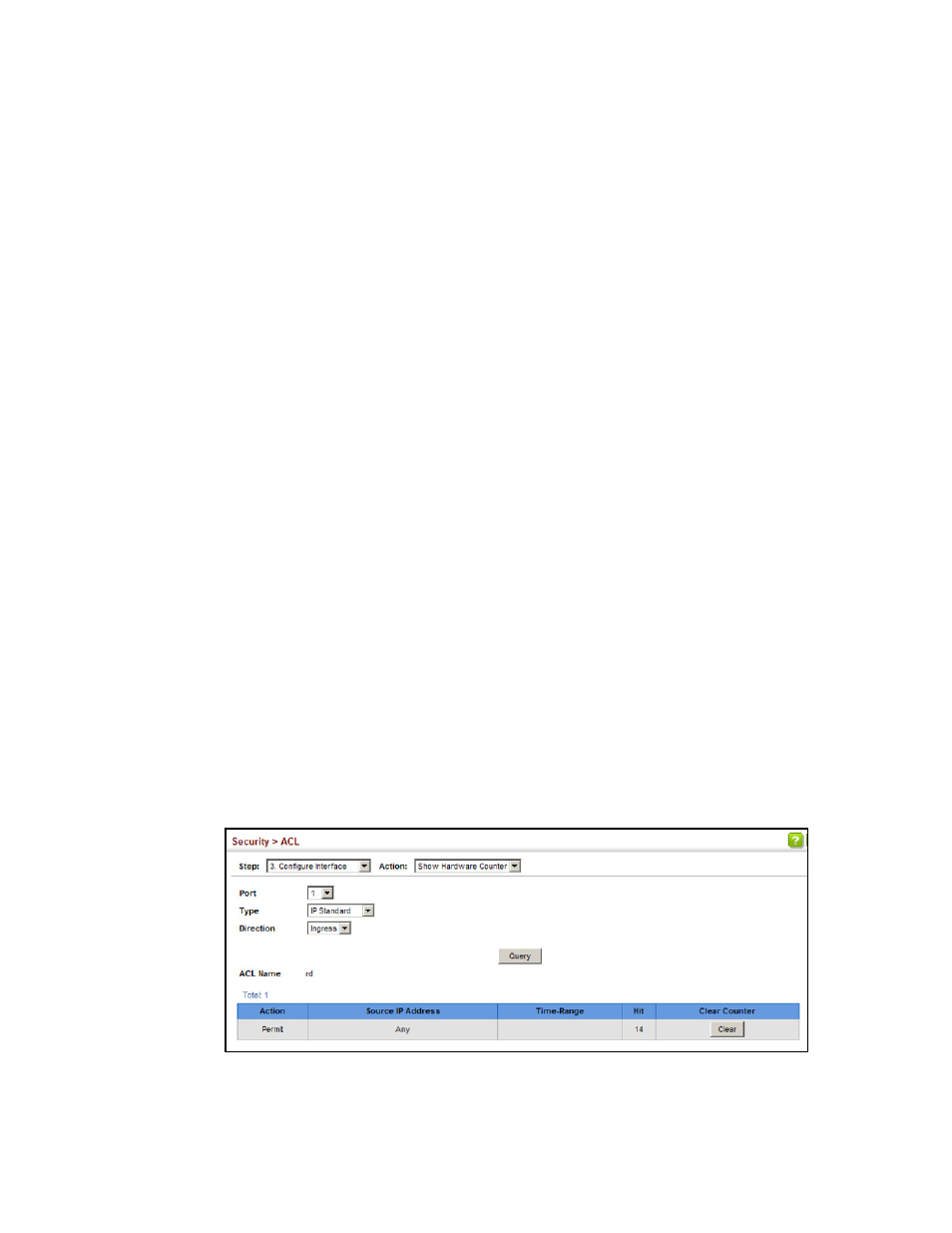

FIGURE 217 Showing ACL Statistics
