Brocade 6910 Ethernet Access Switch Configuration Guide (Supporting R2.2.0.0) - Manual (Page 925)

Brocade 6910 Ethernet Access Switch Configuration Guide 869
53-1002651-02
42
Network Access (MAC Address Authentication)
Configuring Port Link Detection
Use the Security > Network Access (Configure Interface - Link Detection) page to send an SNMP
trap and/or shut down a port when a link event occurs.
CLI References
• “Network Access (MAC Address Authentication)” on page 193
Parameters
These parameters are displayed:
• Link Detection Status – Configures whether Link Detection is enabled or disabled for a port.
• Condition – The link event type which will trigger the port action.
• Link up – Only link up events will trigger the port action.
• Link down – Only link down events will trigger the port action.
• Link up and down – All link up and link down events will trigger the port action.
• Action – The switch can respond in three ways to a link up or down trigger event.
• Trap – An SNMP trap is sent.
• Trap and shutdown – An SNMP trap is sent and the port is shut down.
• Shutdown – The port is shut down.
Interface
To configure link detection on switch ports:
1. Click Security, Network Access.
2. Select Configure Interface from the Step list.
3. Click the Link Detection button.
4. Modify the link detection status, trigger condition, and the response for any port.
5. Click Apply.

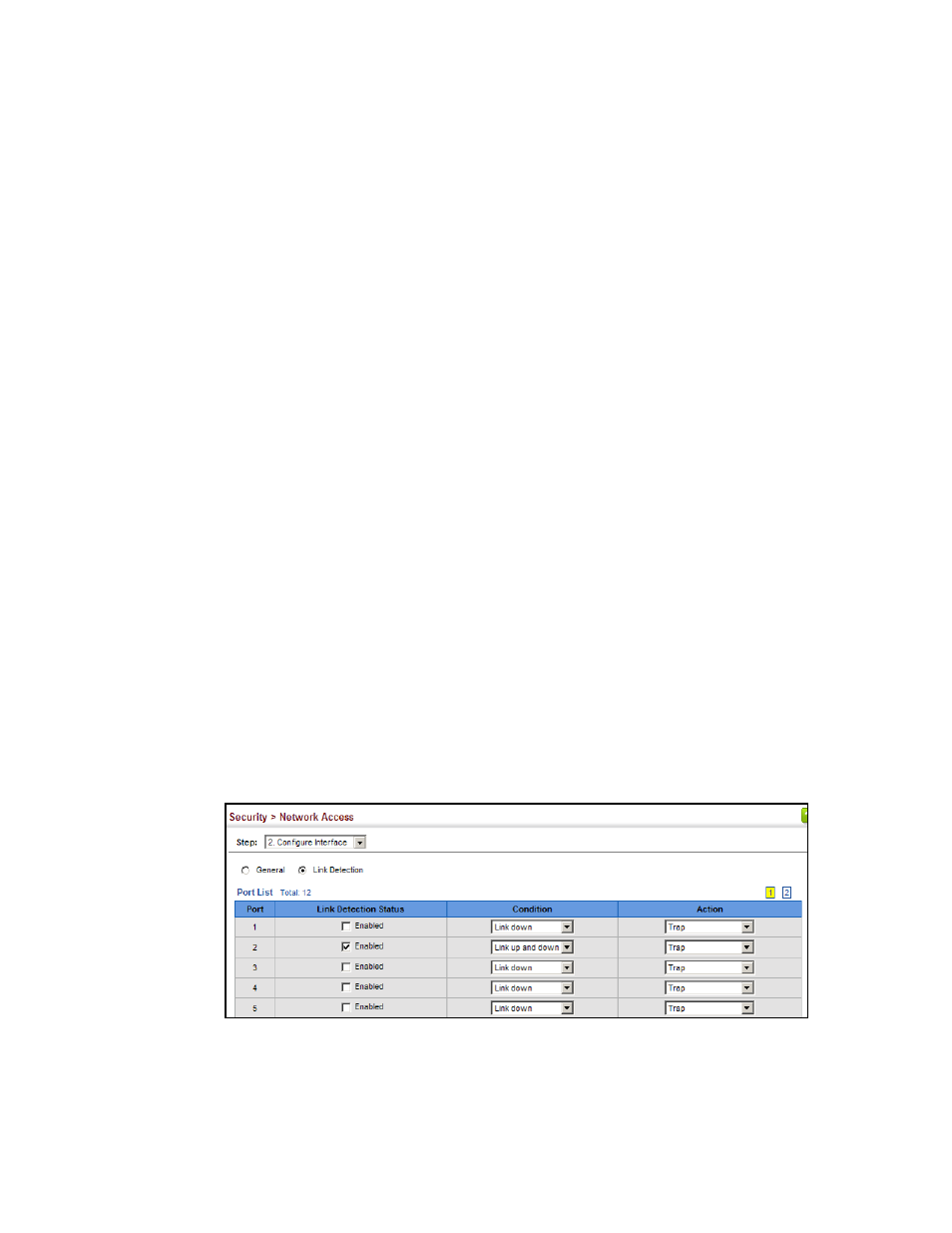

FIGURE 190 Configuring Link Detection for Network Access
