Brocade 6910 Ethernet Access Switch Configuration Guide 887
53-1002651-02
42
Access Control Lists

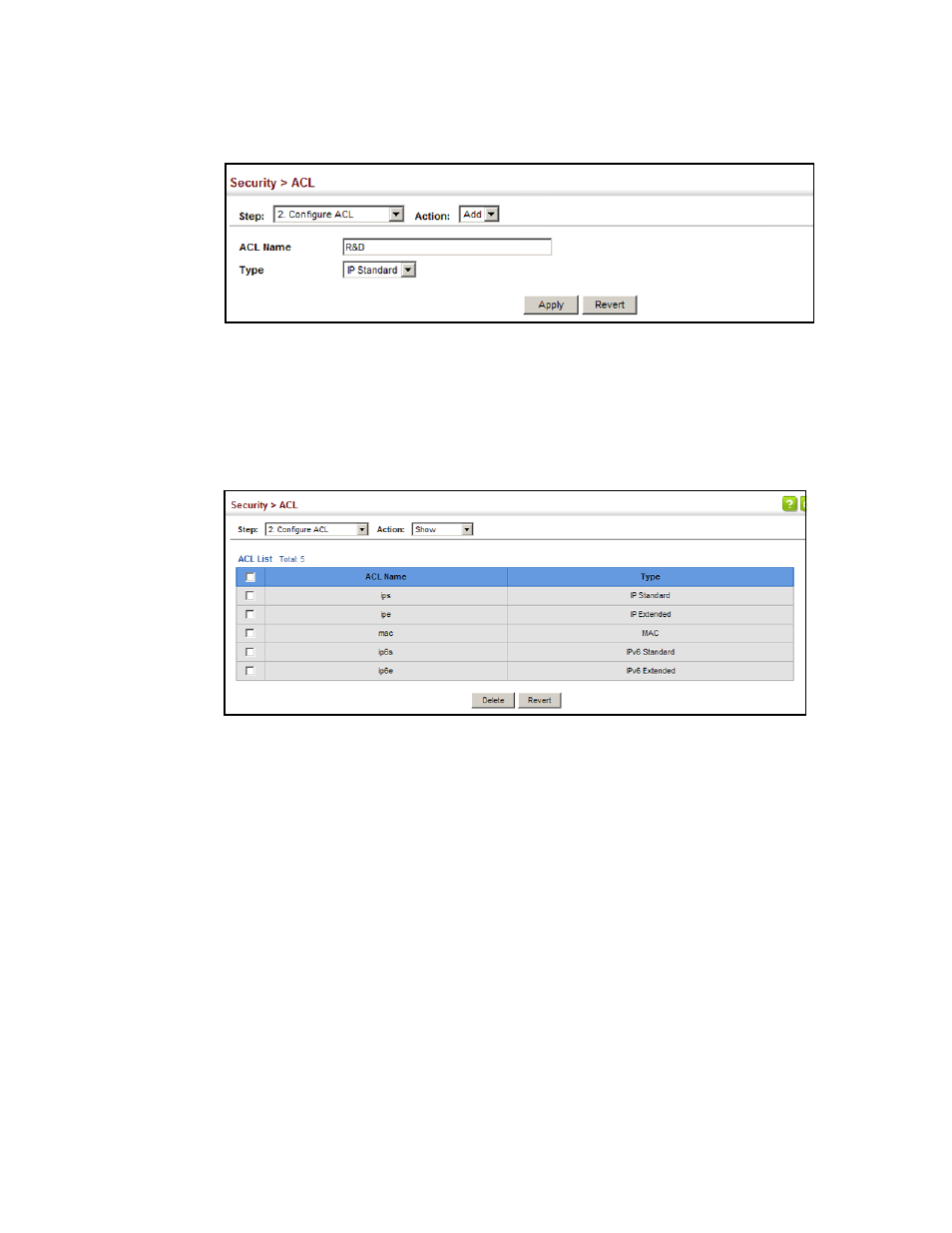

FIGURE 206 Creating an ACL
To show a list of ACLs:
1. Click Security, ACL.
2. Select Configure ACL from the Step list.
3. Select Show from the Action list.
FIGURE 207 Showing a List of ACLs
Configuring a Standard IPv4 ACL
Use the Security > ACL (Configure ACL - Add Rule - IP Standard) page to configure a Standard IPv4
ACL.
CLI References
• “permit, deny (Standard IP ACL)” on page 235
• “show ip access-list” on page 239
• “Time Range” on page 101
Parameters
These parameters are displayed:
• Type – Selects the type of ACLs to show in the Name list.
• Name – Shows the names of ACLs matching the selected type.
• Action – An ACL can contain any combination of permit or deny rules.
