824 Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
39
Layer 3/4 Priority Settings
4. Set the PHB and drop precedence for any DSCP value.
5. Click Apply.

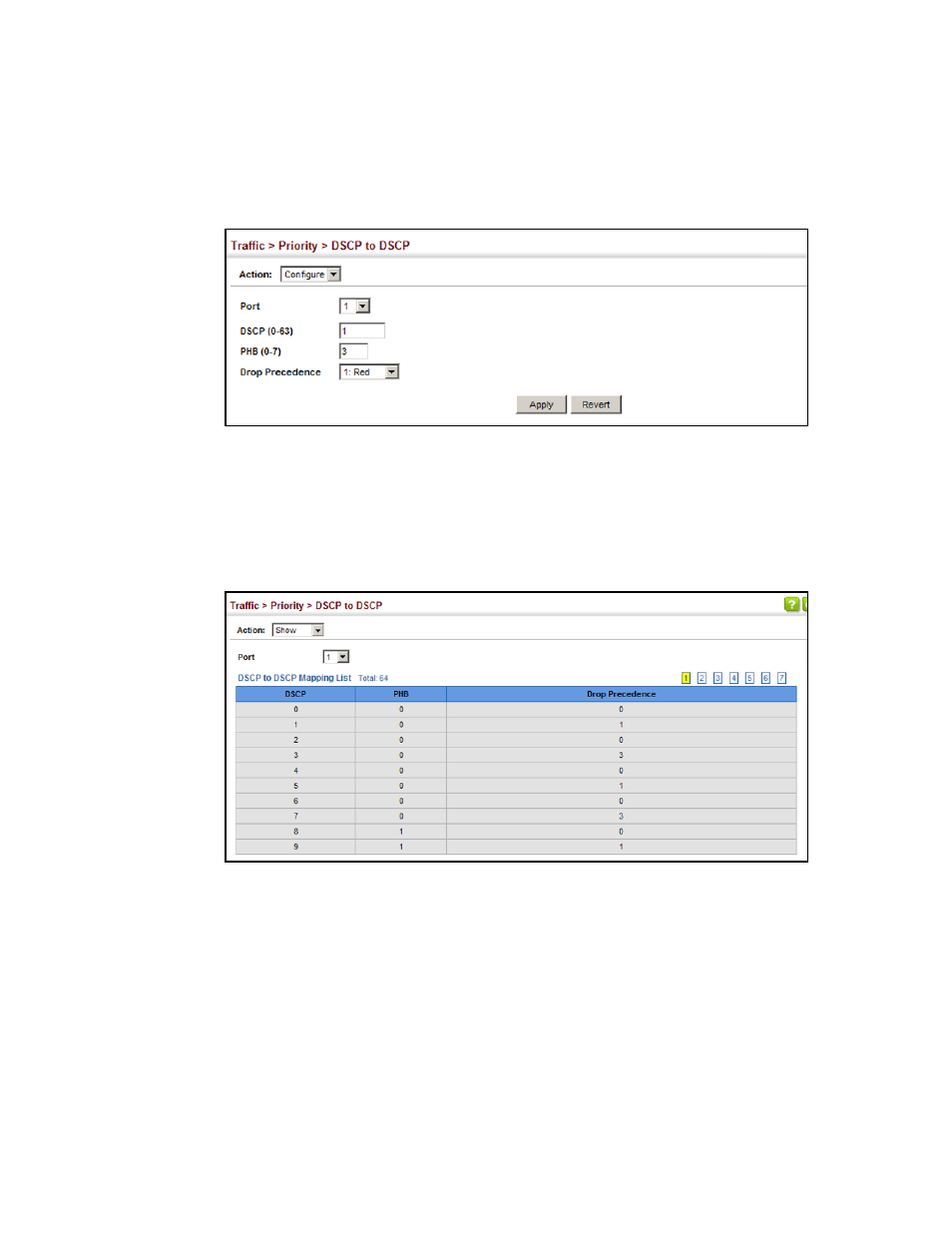

FIGURE 150 Configuring DSCP to DSCP Internal Mapping
To show the DSCP to internal PHB/drop precedence map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
3. Select a port.
FIGURE 151 Showing DSCP to DSCP Internal Mapping
Mapping CoS Priorities to Internal DSCP Values
Use the Traffic > Priority > CoS to DSCP page to maps CoS/CFI values in incoming packets to
per-hop behavior and drop precedence values for priority processing.
CLI References
• “qos map cos-dscp” on page 420
Command Usage
• The default mapping of CoS to PHB values is shown in Table 166 on page 825.
• Enter up to eight CoS/CFI paired values, per-hop behavior and drop precedence.
