Configuring IP Subnet VLANs
Binding an Interface to an IP Subnet VLAN
Use the VLAN > IP Subnet (Configure Interface - Add) page to bind an interface to an IP subnet
VLAN.
CLI References
• “subnet-vlan (Interface Configuration)” on page 405
Command Usage
• The IP subnet cannot be a broadcast or multicast IP address.
• Use the Configure IP Subnet (Add) page described in the preceding section to create a IP
subnet VLAN. Then use the Configure Interface (Add) page to bind an interface to an IP subnet
VLAN.
Parameters
These parameters are displayed:
• Interface – Port or trunk identifier.
• IP Address – The IP address for a subnet. Valid IP addresses consist of four decimal numbers,
0 to 255, separated by periods.
• Subnet Mask – This mask identifies the host address bits of the IP subnet.
Interface
To bind an interface to an IP subnet VLAN:
1. Click VLAN, IP Subnet.
2. Select Configure Interface from the Step list.
3. Select Add from the Action list.
4. Select an interface from the Port or Trunk list.
5. Enter an address in the IP Address field.
6. Enter a mask in the Subnet Mask field.
7. Click Apply.

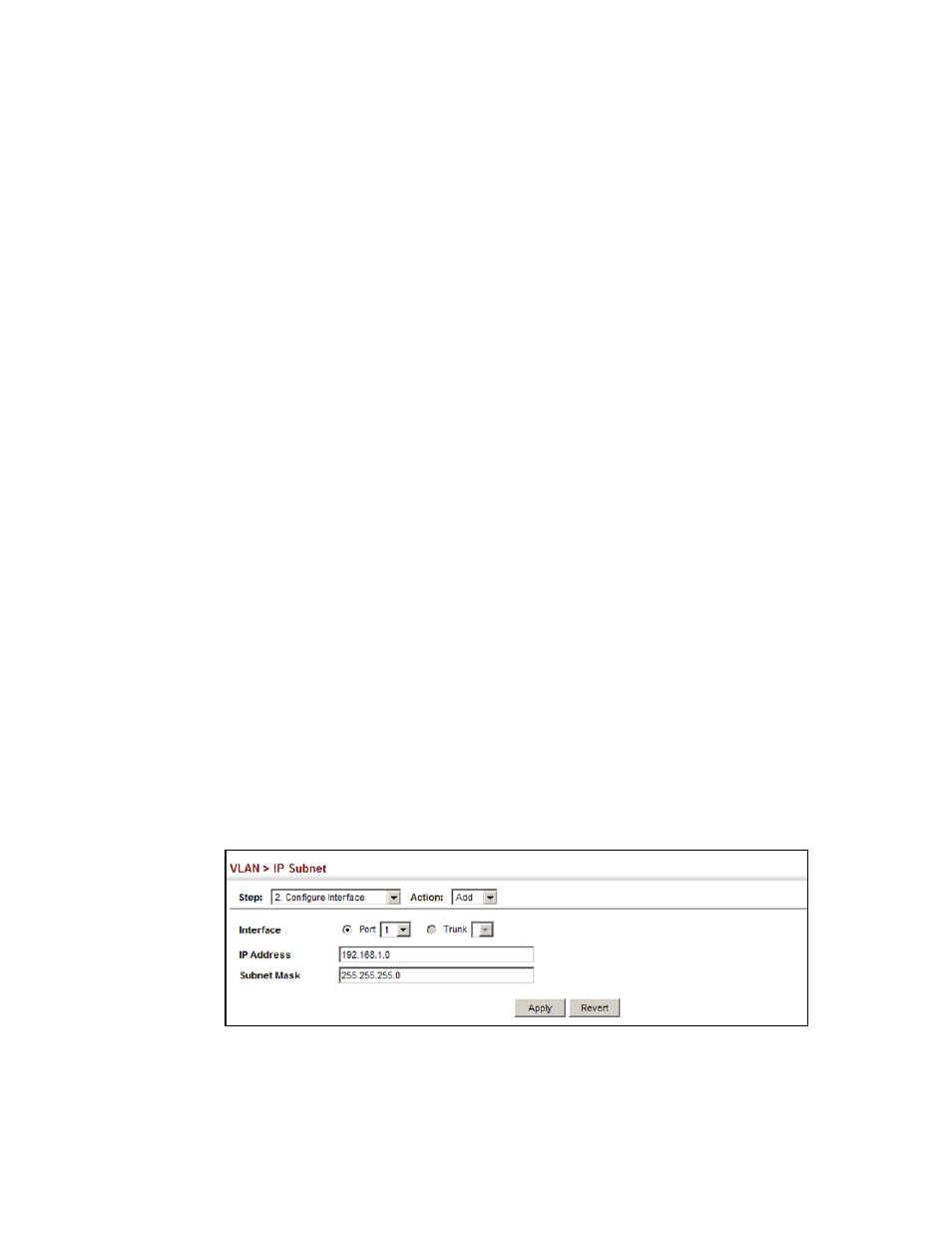

FIGURE 102 Binding an Interface To an IP Subnet VLAN
To show the interfaces bound to IP subnet VLANs:
1. Click VLAN, IP Subnet.
2. Select Configure Interface from the Step list.
