Page 1000

944
Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
43
Link Layer Discovery Protocol
Interface
To display LLDP information for the local device:
1. Click Administration, LLDP.
2. Select Show Local Device Information from the Step list.
3. Select General, Port, or Trunk.

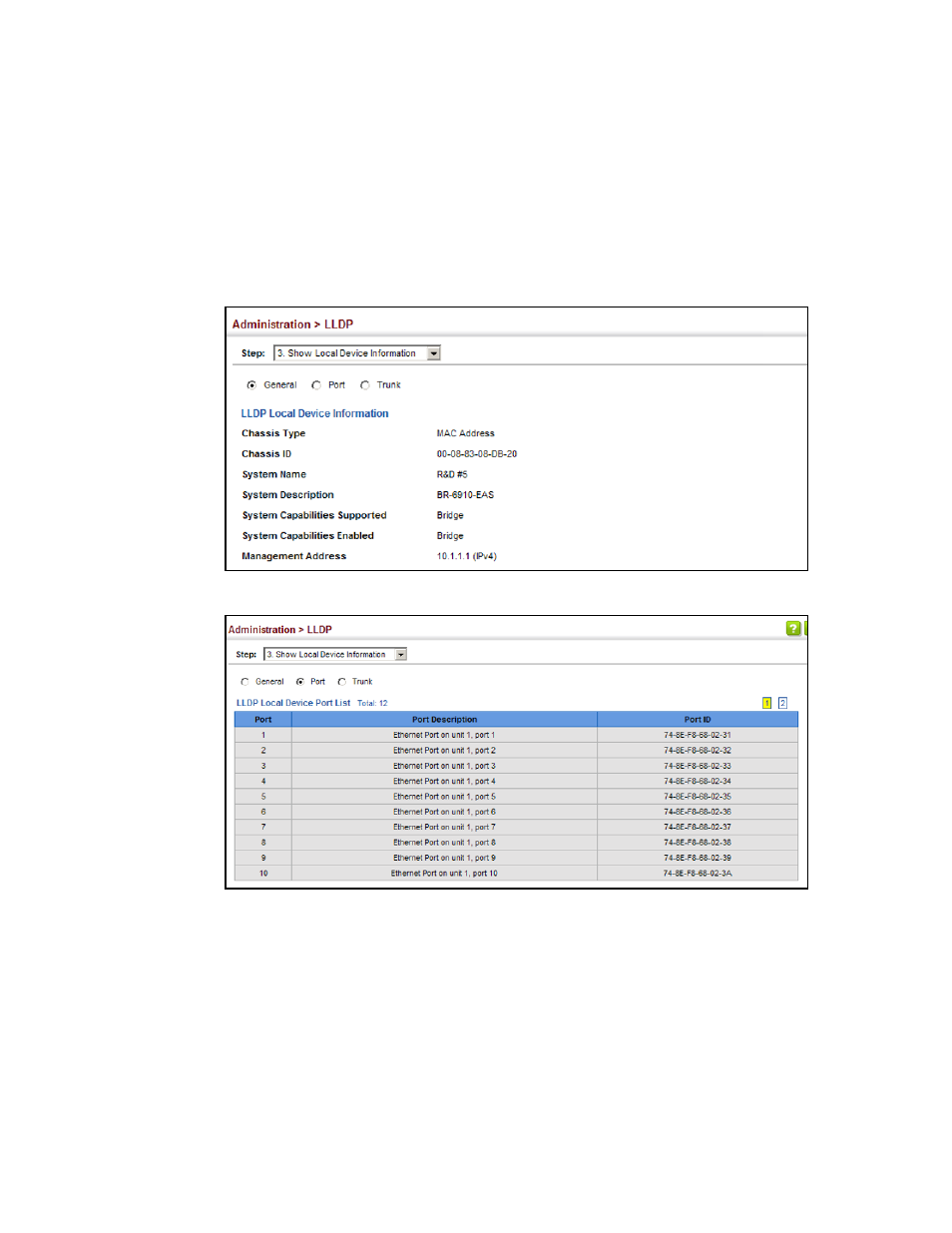

FIGURE 246
Displaying Local Device Information for LLDP (General)
FIGURE 247
Displaying Local Device Information for LLDP (Port)
Displaying LLDP Remote Device Information
Use the Administration > LLDP (Show Remote Device Information) page to display information
about devices connected directly to the switch’s ports which are advertising information through
LLDP, or to display detailed information about an LLDP-enabled device connected to a specific port
on the local switch.
