704 Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
34
Port Configuration
4. Modify the required interface settings.
5. Click Apply.

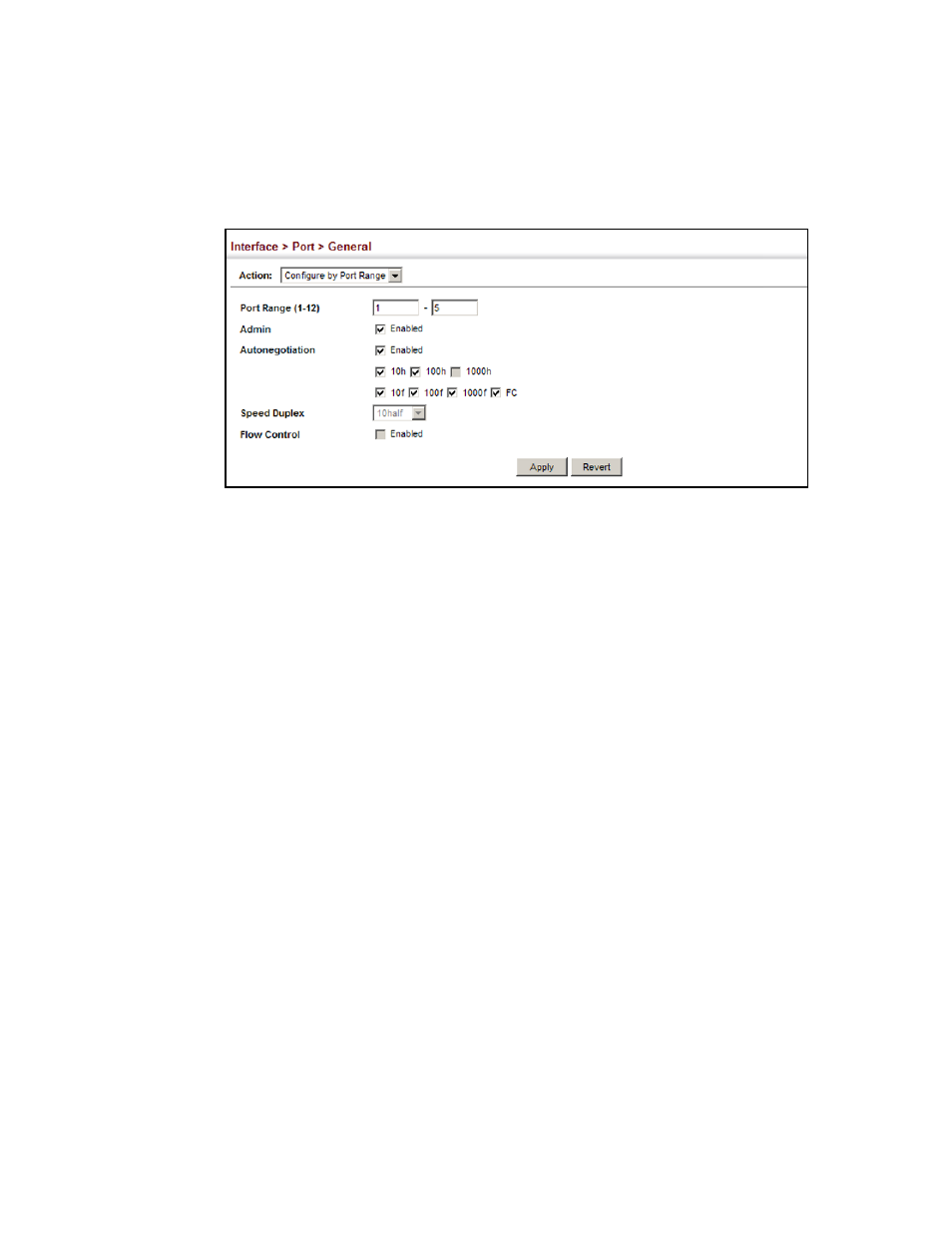

FIGURE 33 Configuring Connections by Port Range
Displaying Connection Status
Use the Interface > Port > General (Show Information) page to display the current connection
status, including link state, speed/duplex mode, flow control, and auto-negotiation.
CLI References
• “show interfaces status” on page 274
Parameters
These parameters are displayed:
• Port – Port identifier.
• Type – Indicates the port type. (100Base-TX, 100Base SFP, 1000Base-T, 1000Base SFP)
• Name – Interface label.
• Admin – Shows if the port is enabled or disabled.
• Oper Status – Indicates if the link is Up or Down.
• Media Type – Media type used for combination ports.
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Oper Speed Duplex – Shows the current speed and duplex mode.
• Oper Flow Control – Shows the flow control type used.
Interface
To display port connection parameters:
1. Click Interface, Port, General.
2. Select Show Information from the Action List.
