770
Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
35
Protocol VLANs
•
Protocol Group ID – Protocol Group ID assigned to the Protocol VLAN Group.
(Range: 1-2147483647)
•
VLAN ID – VLAN to which matching protocol traffic is forwarded. (Range: 1-4093)
•
Priority – The priority assigned to untagged ingress traffic. (Range: 0-7, where 7 is the highest
priority)
Interface
To map a protocol group to a VLAN for a port or trunk:
1. Click VLAN, Protocol.
2. Select Configure Interface from the Step list.
3. Select Add from the Action list.
4. Select a port or trunk.
5. Enter the identifier for a protocol group.
6. Enter the corresponding VLAN to which the protocol traffic will be forwarded.
7. Set the priority to assign to untagged ingress frames.
8. Click Apply.

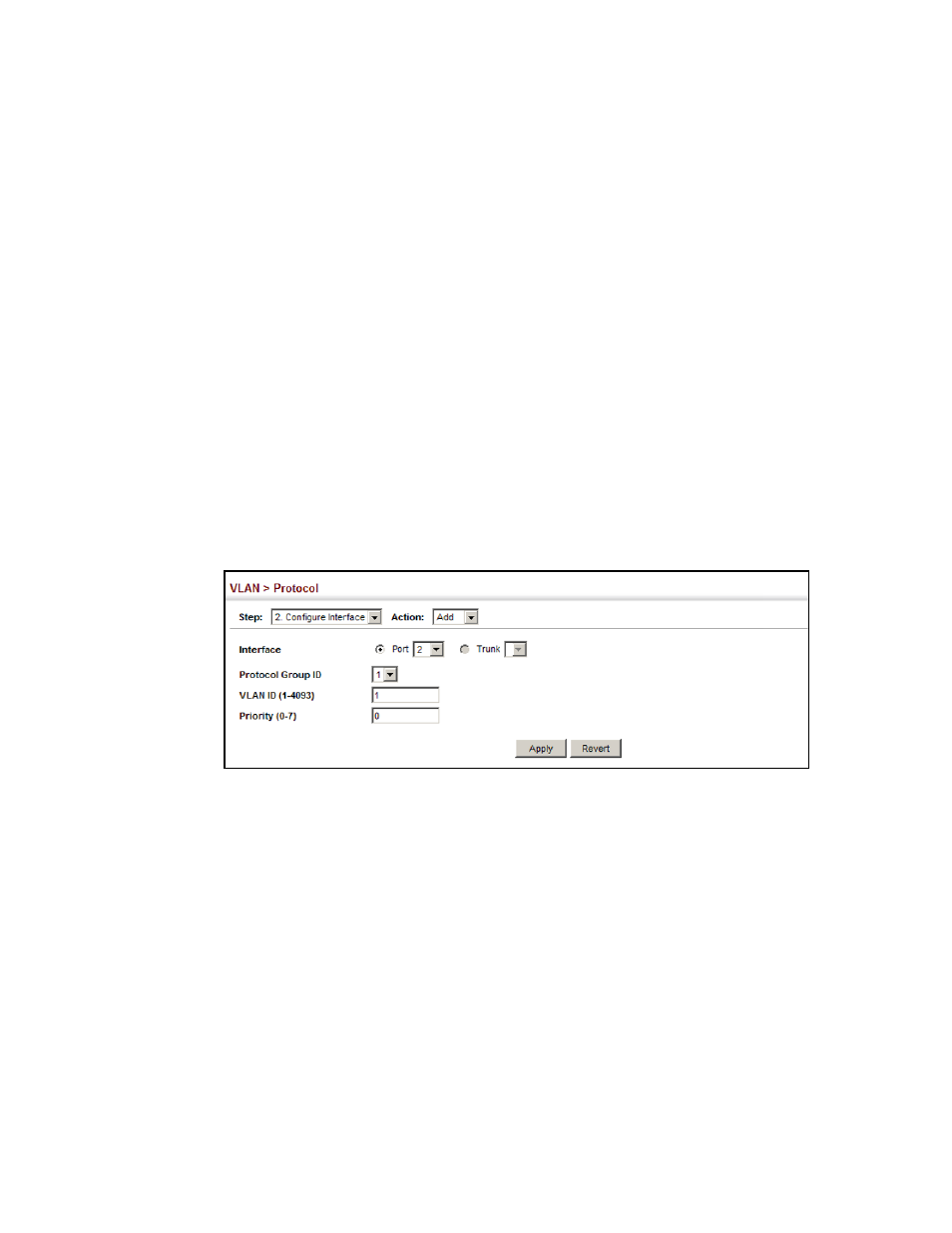

FIGURE 98
Assigning Interfaces to Protocol VLANs
To show the protocol groups mapped to a port or trunk:
1. Click VLAN, Protocol.
2. Select Configure Interface from the Step list.
3. Select Show from the Action list.
4. Select a port or trunk.
