1008

Brocade 6910 Ethernet Access Switch Configuration Guide

53-1002651-02

43

Connectivity Fault Management

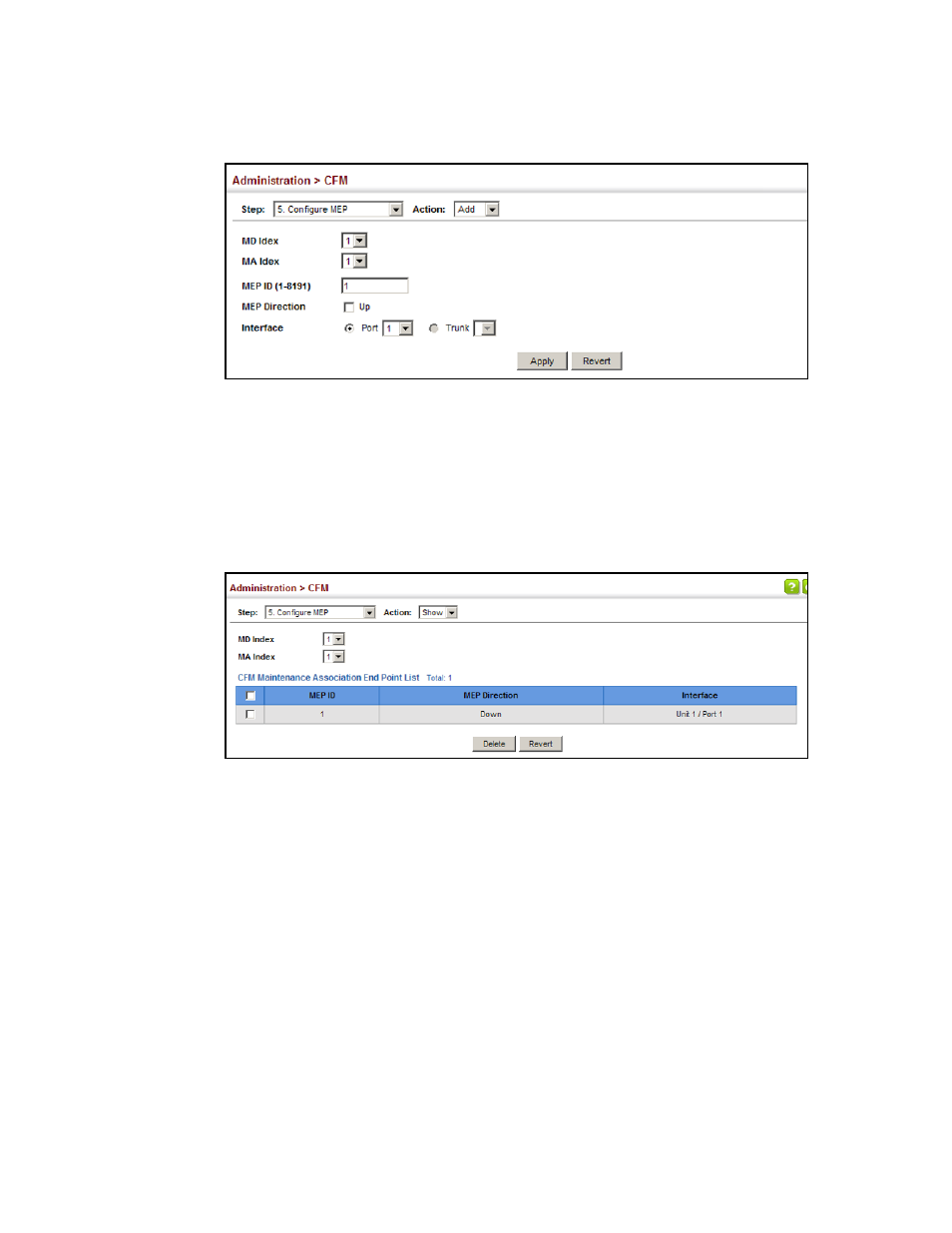

FIGURE 301

Configuring Maintenance End Points

To show the configured maintenance end points:

1. Click Administration, CFM.

2. Select Configure MEP from the Step list.

3. Select Show from the Action list.

4. Select an entry from MD Index and MA Index.

FIGURE 302

Showing Maintenance End Points

Configuring Remote Maintenance End Points

Use the Administration > CFM (Configure Remote MEP – Add) page to specify remote maintenance
end points (MEPs) set on other CFM-enabled devices within a common MA. Remote MEPs can be
added to a static list in this manner to verify that each entry has been properly configured and is
operational. When cross-checking is enabled, the list of statically configured remote MEPs is
compared against the MEPs learned through continuity check messages (CCMs), and any
discrepancies reported via SNMP traps.

CLI References

“CFM Commands”

on page 517

Command Usage

All MEPs that exist on other devices inside a maintenance association should be statically
configured to ensure full connectivity through the cross-check process.
