Brocade 6910 Ethernet Access Switch Configuration Guide
961
53-1002651-02
43
Simple Network Management Protocol
•
Access Mode – Specifies the access rights for the community string:
•
Read-Only – Authorized management stations are only able to retrieve MIB objects.
•
Read/Write – Authorized management stations are able to both retrieve and modify MIB
objects.
Interface
To set a community access string:
1. Click Administration, SNMP.
2. Select Configure User from the Step list.
3. Select Add Community from the Action list.
4. Add new community strings as required, and select the corresponding access rights from the
Access Mode list.
5. Click Apply

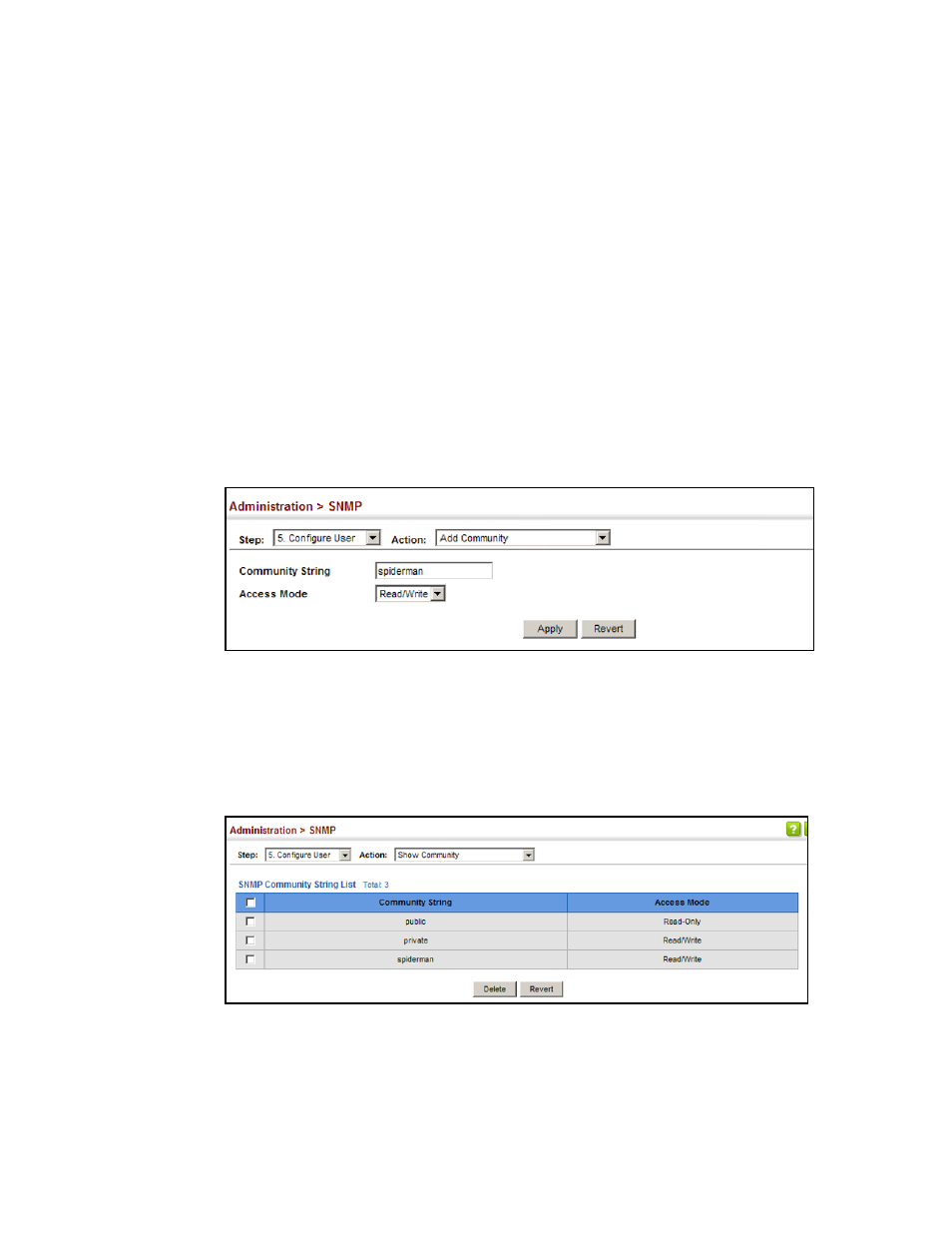

FIGURE 262
Setting Community Access Strings
To show the community access strings:
1. Click Administration, SNMP.
2. Select Configure User from the Step list.
3. Select Show Community from the Action list.
FIGURE 263
Showing Community Access Strings
