Brocade 6910 Ethernet Access Switch Configuration Guide

1073

53-1002651-02

44

Address Resolution Protocol

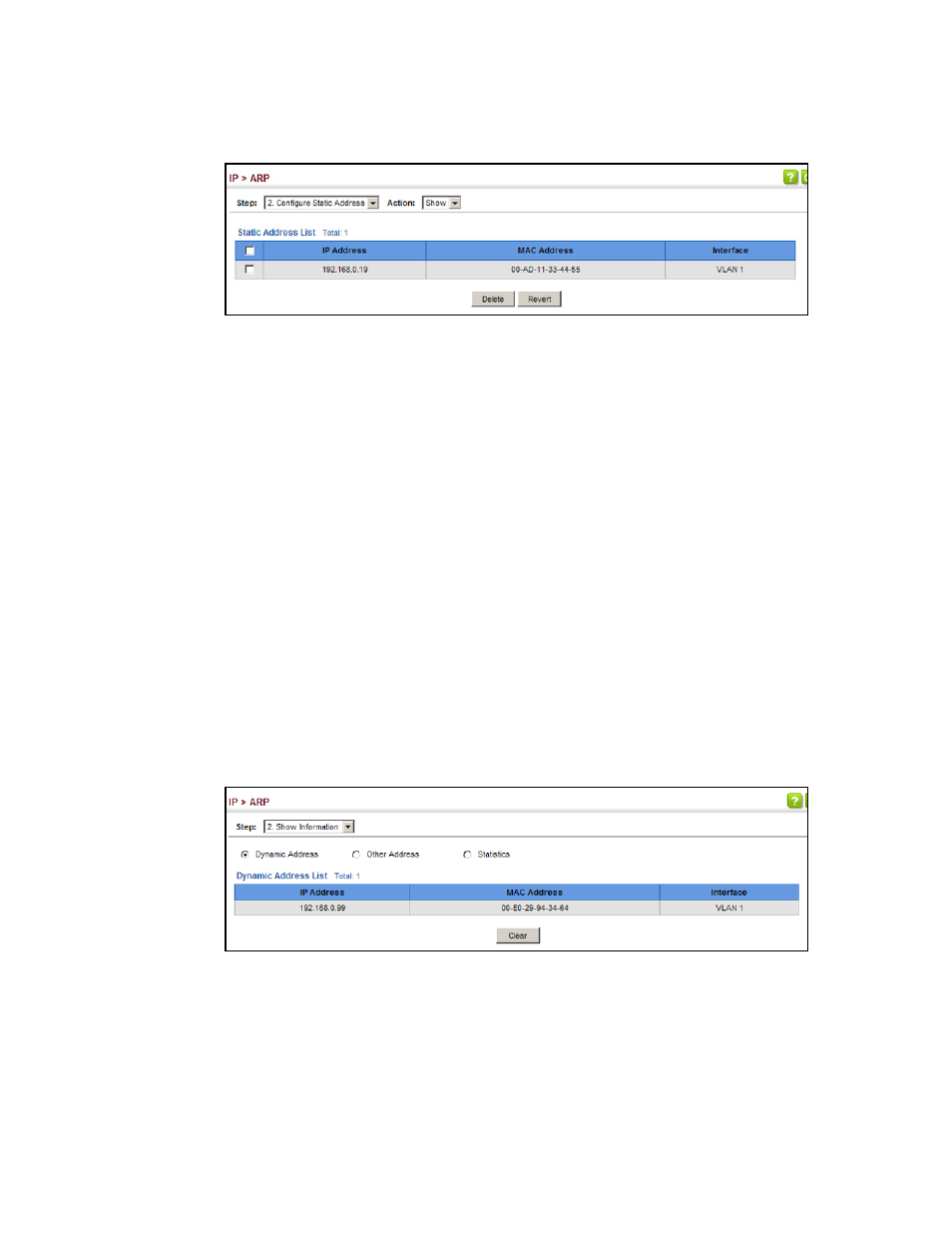

FIGURE 350

Displaying Static ARP Entries

Displaying ARP Entries

Use the IP > ARP (Show Information) page to display dynamic entries in the ARP cache. The ARP
cache contains entries for local interfaces, including subnet, host, and broadcast addresses. These
entries are dynamically learned through replies to broadcast messages.

CLI References

“show arp”

on page 604

“clear arp-cache”

on page 604

Command Usage
Static entries are only displayed for VLANs that are up. In other words, static entries are only
displayed when configured for the IP subnet of a existing VLAN, and that VLAN is linked up.

Interface
To display all dynamic entries in the ARP cache:

1. Click IP, ARP.

2. Select Show Information from the Step List.

3. Click Dynamic Address.

FIGURE 351

Displaying ARP Entries

To display all local entries in the ARP cache:

1. Click IP, ARP.

2. Select Show Information from the Step List.

3. Click Other Address.
