Page 1012: Setting, Snmpv3 views

956
Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
43
Simple Network Management Protocol

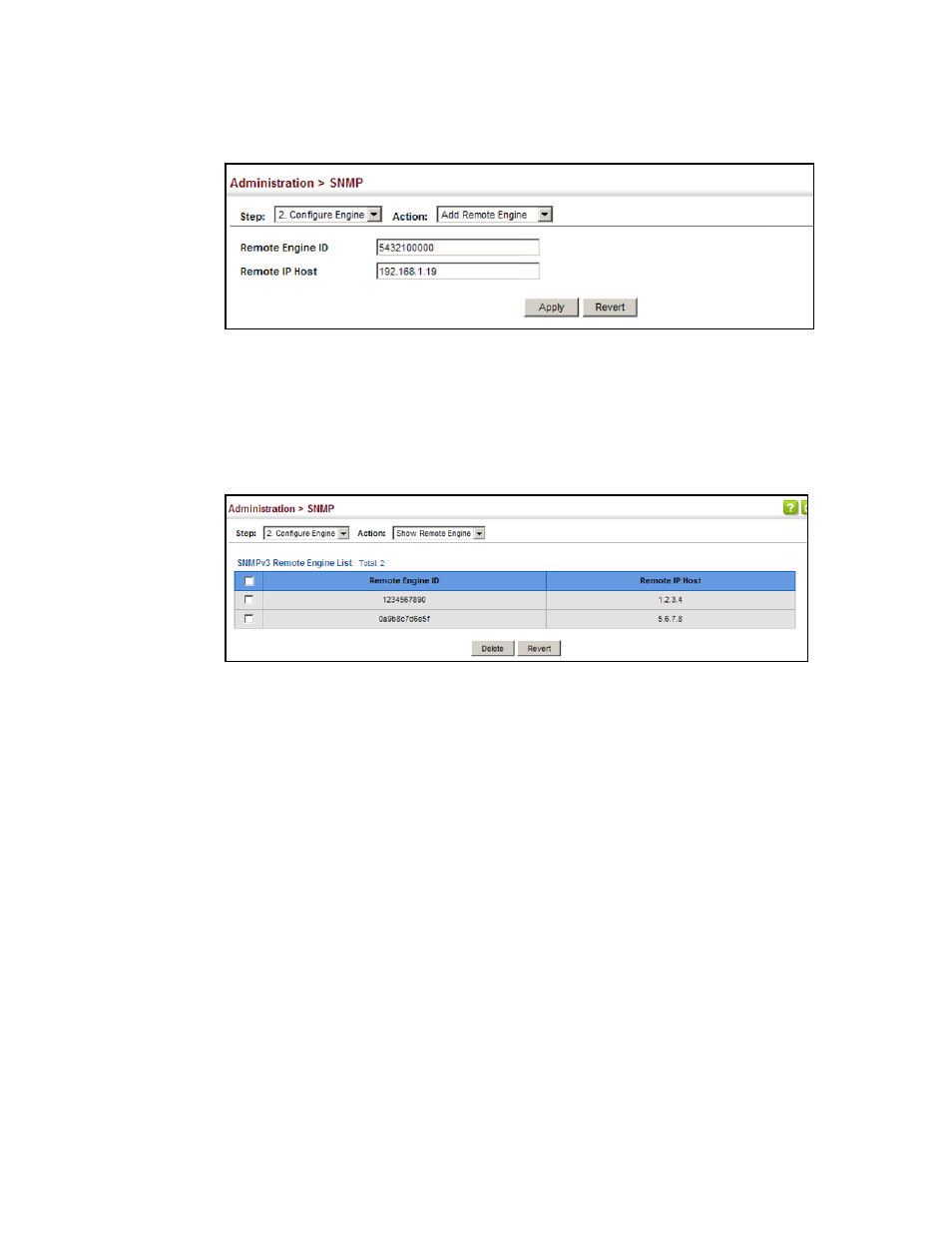

FIGURE 254
Configuring a Remote Engine ID for SNMP
To show the remote SNMP engine IDs:
1. Click Administration, SNMP.
2. Select Configure Engine from the Step list.
3. Select Show Remote Engine from the Action list.
FIGURE 255
Showing Remote Engine IDs for SNMP
Setting SNMPv3 Views
Use the Administration > SNMP (Configure View) page to configure SNMPv3 views which are used
to restrict user access to specified portions of the MIB tree. The predefined view “defaultview”
includes access to the entire MIB tree.
CLI References
•
Parameters
These parameters are displayed:
Add View
•
View Name – The name of the SNMP view. (Range: 1-32 characters)
•
OID Subtree – Specifies the initial object identifier of a branch within the MIB tree. Wild cards
can be used to mask a specific portion of the OID string. Use the Add OID Subtree page to
configure additional object identifiers.
•
Type – Indicates if the object identifier of a branch within the MIB tree is included or excluded
from the SNMP view.
