1106

Brocade 6910 Ethernet Access Switch Configuration Guide

53-1002651-02

47

Layer 2 IGMP (Snooping and Query)

Displaying Multicast Groups Discovered by IGMP Snooping

Use the Multicast > IGMP Snooping > Forwarding Entry page to display the forwarding entries
learned through IGMP Snooping.

CLI References

“show ip igmp snooping group”

on page 459

Command Usage
To display information about multicast groups, IGMP Snooping must first be enabled on the switch
(see

“Configuring IGMP Snooping and Query Parameters”

on page 1093).

Parameters
These parameters are displayed:

VLAN – An interface on the switch that is forwarding traffic to downstream ports for the
specified multicast group address.

Group Address – IP multicast group address with subscribers directly attached or downstream
from the switch, or a static multicast group assigned to this interface.

Interface – A downstream port or trunk that is receiving traffic for the specified multicast
group. This field may include both dynamically and statically configured multicast router ports.

Interface
To show multicast groups learned through IGMP snooping:

1. Click Multicast, IGMP Snooping, Forwarding Entry.

2. Select the VLAN for which to display this information.

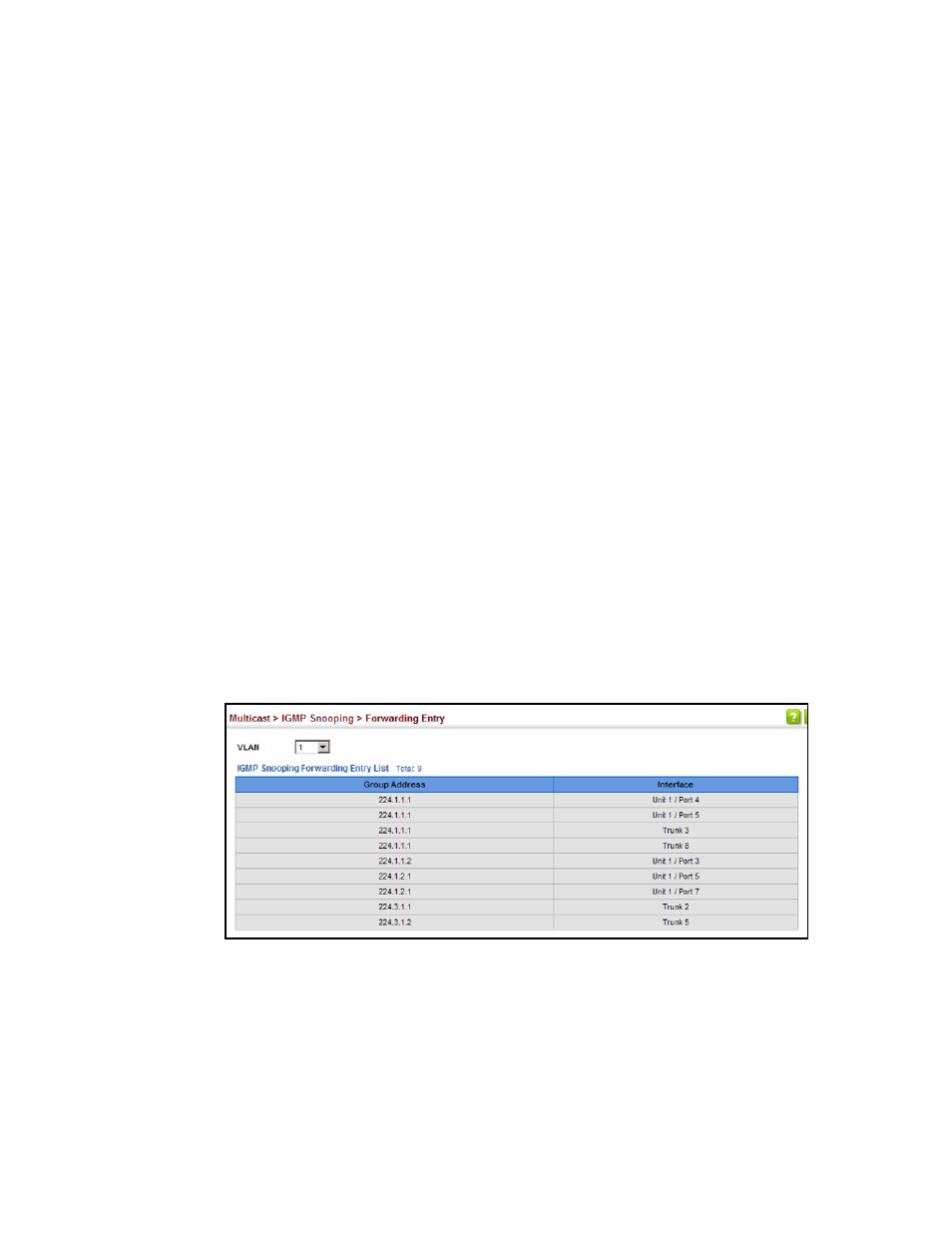

FIGURE 379

Showing Multicast Groups Learned by IGMP Snooping

Displaying IGMP Snooping Statistics

Use the Multicast > IGMP Snooping > Statistics pages to display IGMP snooping protocol-related
statistics for the specified interface.

CLI References

“show ip igmp snooping statistics”

on page 461
