Page 859: Interface settings for mstp

Brocade 6910 Ethernet Access Switch Configuration Guide
803
53-1002651-02
37
Configuring Interface Settings for MSTP

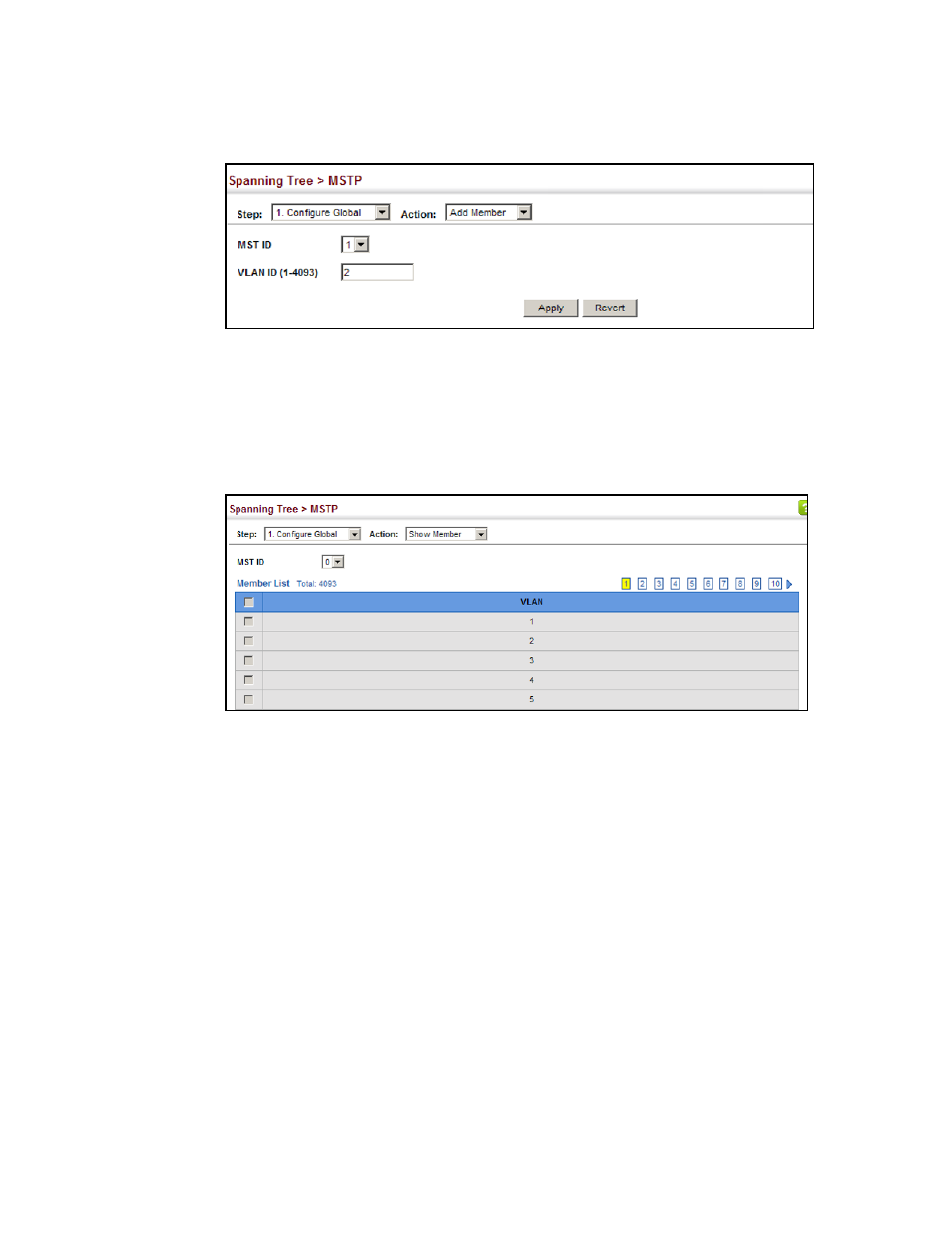

FIGURE 133
Adding a VLAN to an MST Instance
To show the VLAN members of an MSTP instance:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show Member from the Action list.
FIGURE 134
Displaying Members of an MST Instance
Configuring Interface Settings for MSTP
Use the Spanning Tree > MSTP (Configure Interface - Configure) page to configure the STA interface
settings for an MST instance.
CLI References
•
Parameters
These parameters are displayed:
•
MST ID – Instance identifier to configure. (Default: 0)
•
Interface – Displays a list of ports or trunks.
•
STA Status – Displays the current state of this interface within the Spanning Tree. (See
“Displaying Interface Settings for STA”
on page 797 for additional information.)
•
Discarding – Port receives STA configuration messages, but does not forward packets.
