802 Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
37
Configuring Multiple Spanning Trees

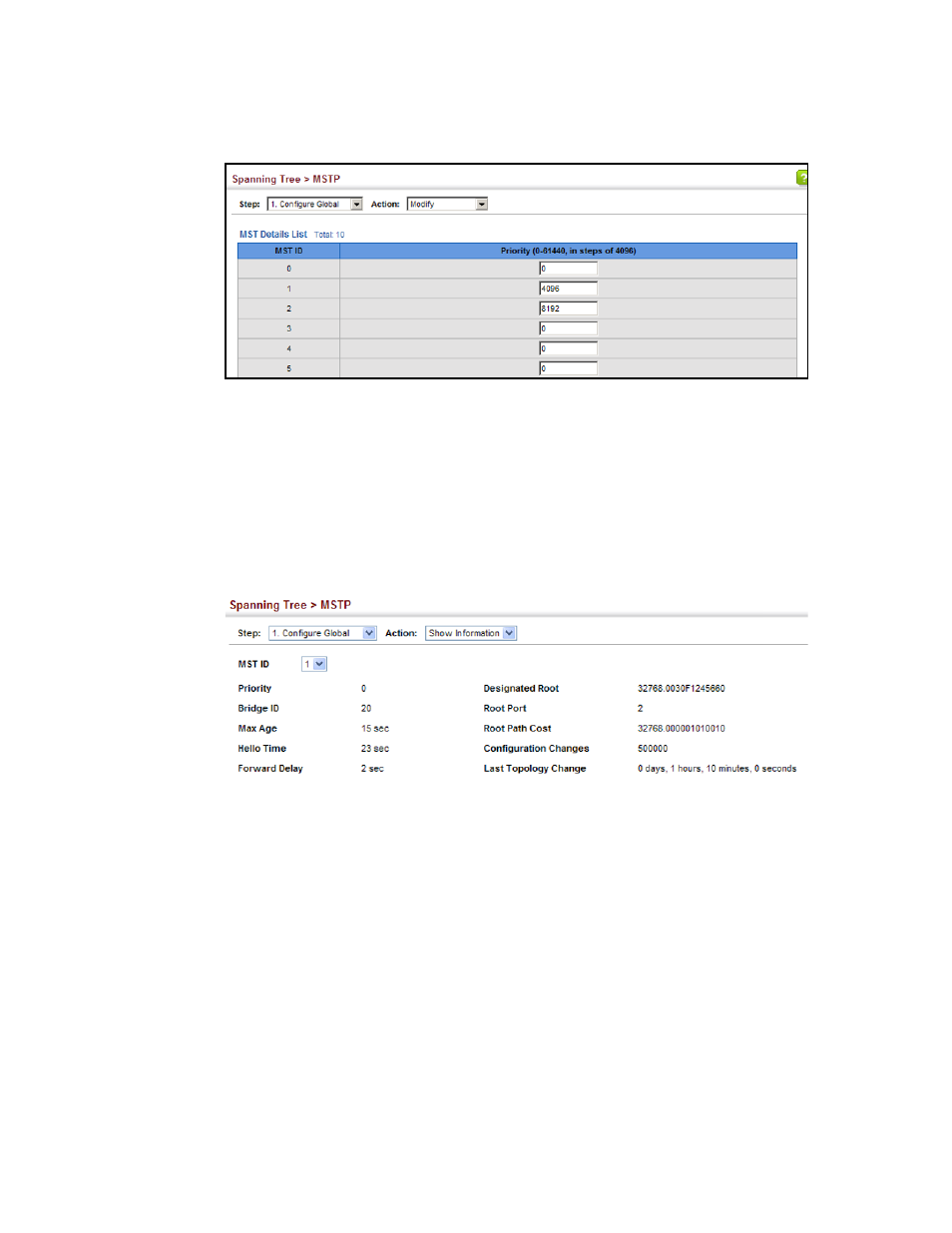

FIGURE 131 Modifying the Priority for an MST Instance
To display global settings for MSTP:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show Information from the Action list.
4. Select an MST ID. The attributes displayed on this page are described under “Displaying Global
Settings for STA” on page 793.
FIGURE 132 Displaying Global Settings for an MST Instance
To add additional VLAN groups to an MSTP instance:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Add Member from the Action list.
4. Select an MST instance from the MST ID list.
5. Enter the VLAN group to add to the instance in the VLAN ID field. Note that the specified
member does not have to be a configured VLAN.
6. Click Apply
