Navigating the Web Browser Interface
Configuration Options
Configurable parameters have a dialog box or a drop-down list. Once a configuration change has
been made on a page, be sure to click on the Apply button to confirm the new setting. The following
table summarizes the web page configuration buttons.
Panel Display
The web agent displays an image of the switch’s ports. The Mode can be set to display different
information for the ports, including Active (i.e., up or down), Duplex (i.e., half or full duplex), or Flow
Control (i.e., with or without flow control).

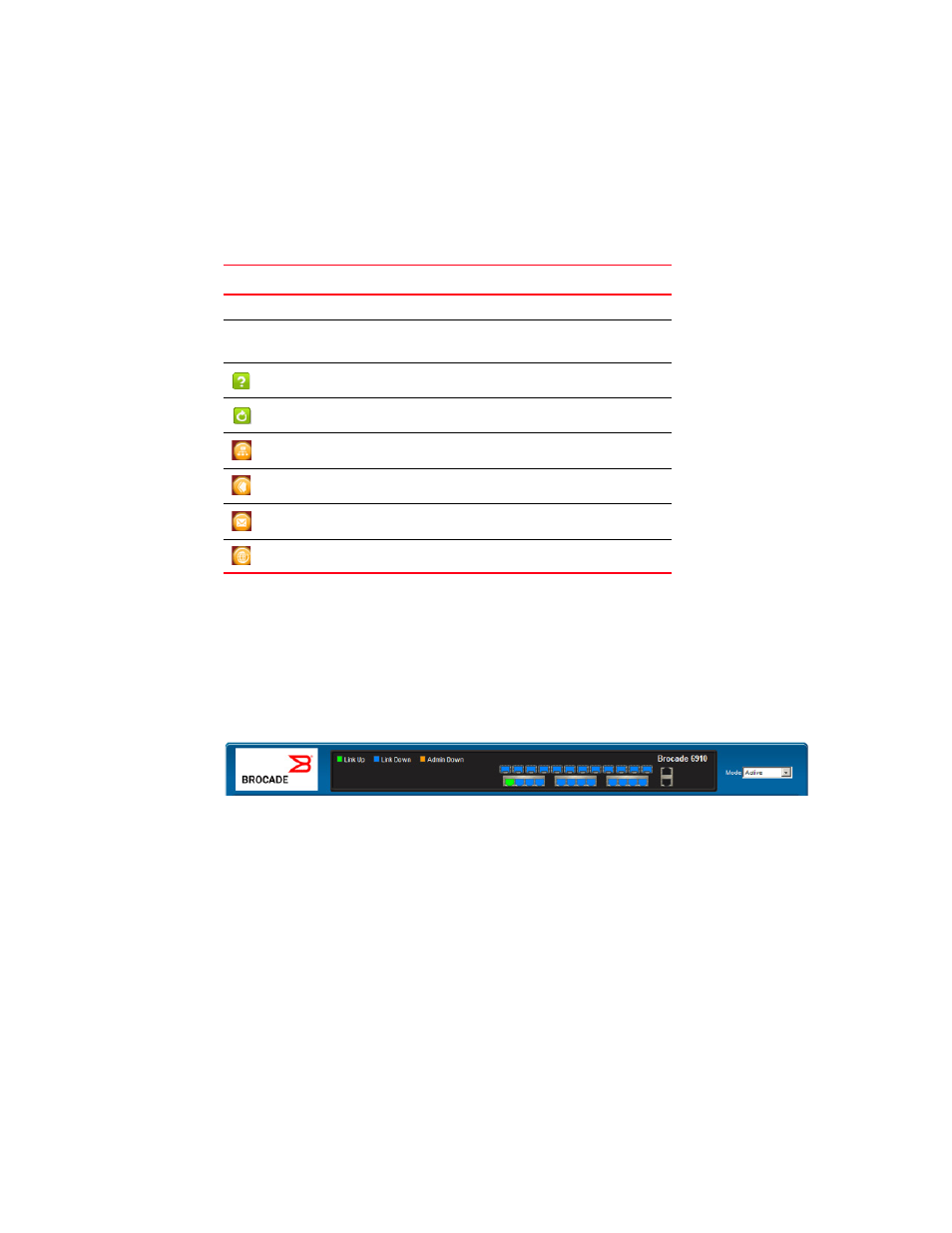

FIGURE 9 Front Panel Indicators
TABLE 152 Web Page Configuration Buttons
Button Action
Apply Sets specified values to the system.
Revert Cancels specified values and restores current
values prior to pressing “Apply.”
Displays help for the selected page.
Refreshes the current page.
Displays the site map.
Logs out of the management interface.
Sends mail to Brocade
Links to the Brocade web site.
