Brocade 6910 Ethernet Access Switch Configuration Guide

1041

53-1002651-02

43

OAM Configuration

Displaying Statistics for OAM Messages

Use the Administration > OAM > Counters page to display statistics for the various types of OAM
messages passed across each port.

CLI References

“show efm oam counters interface”

on page 576

Parameters
These parameters are displayed:

Port – Port identifier. (Range: 1-12)

Clear – Clears statistical counters for the selected ports.

OAMPDU – Message types transmitted and received by the OAM protocol, including
Information OAMPDUs, unique Event OAMPDUs, Loopback Control OAMPDUs, and Organization
Specific OAMPDUs.

Interface
To display statistics for OAM messages:

1. Click Administration, OAM, Counters.

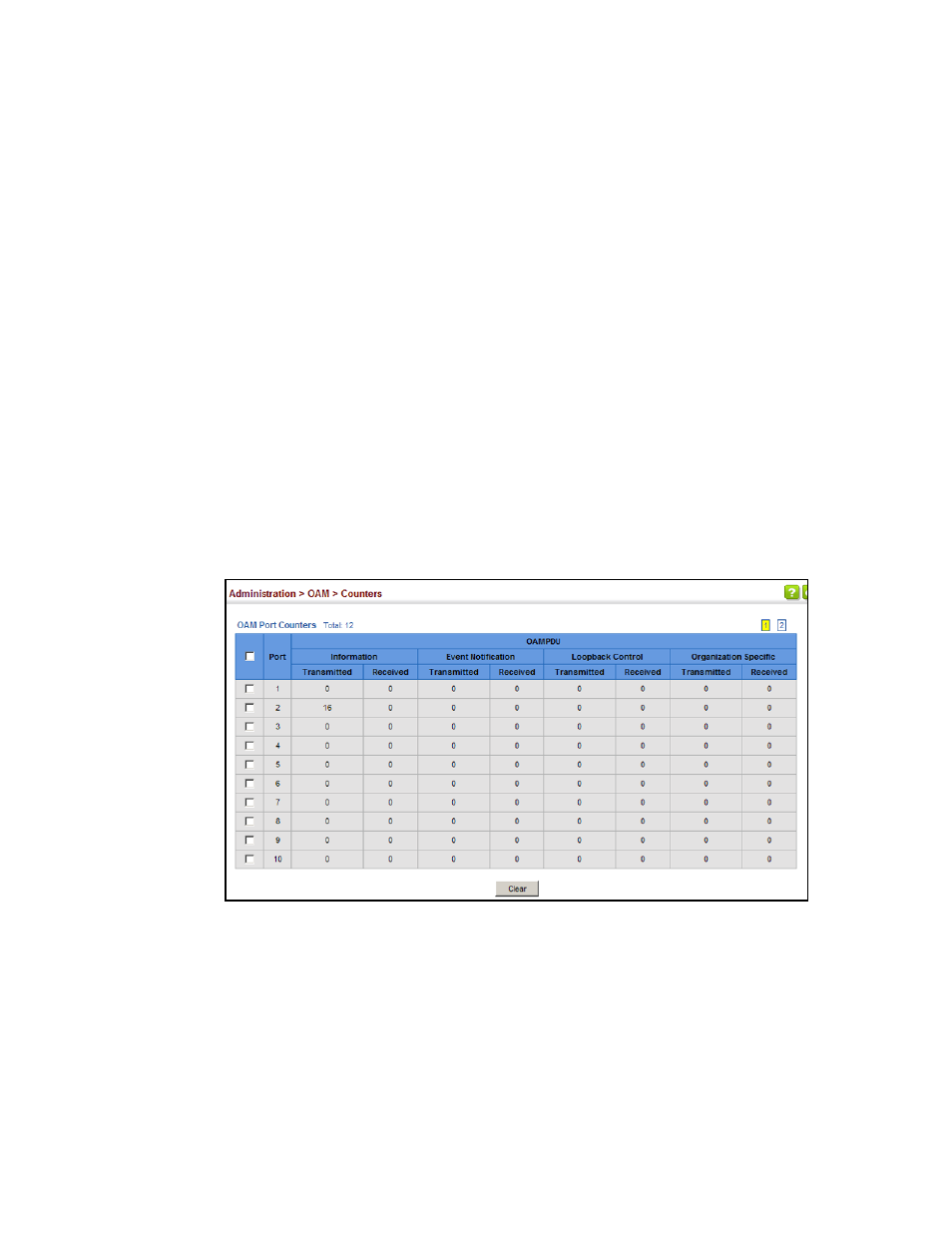

FIGURE 328

Displaying Statistics for OAM Messages
