1088

Brocade 6910 Ethernet Access Switch Configuration Guide

53-1002651-02

46

Dynamic Host Configuration Protocol

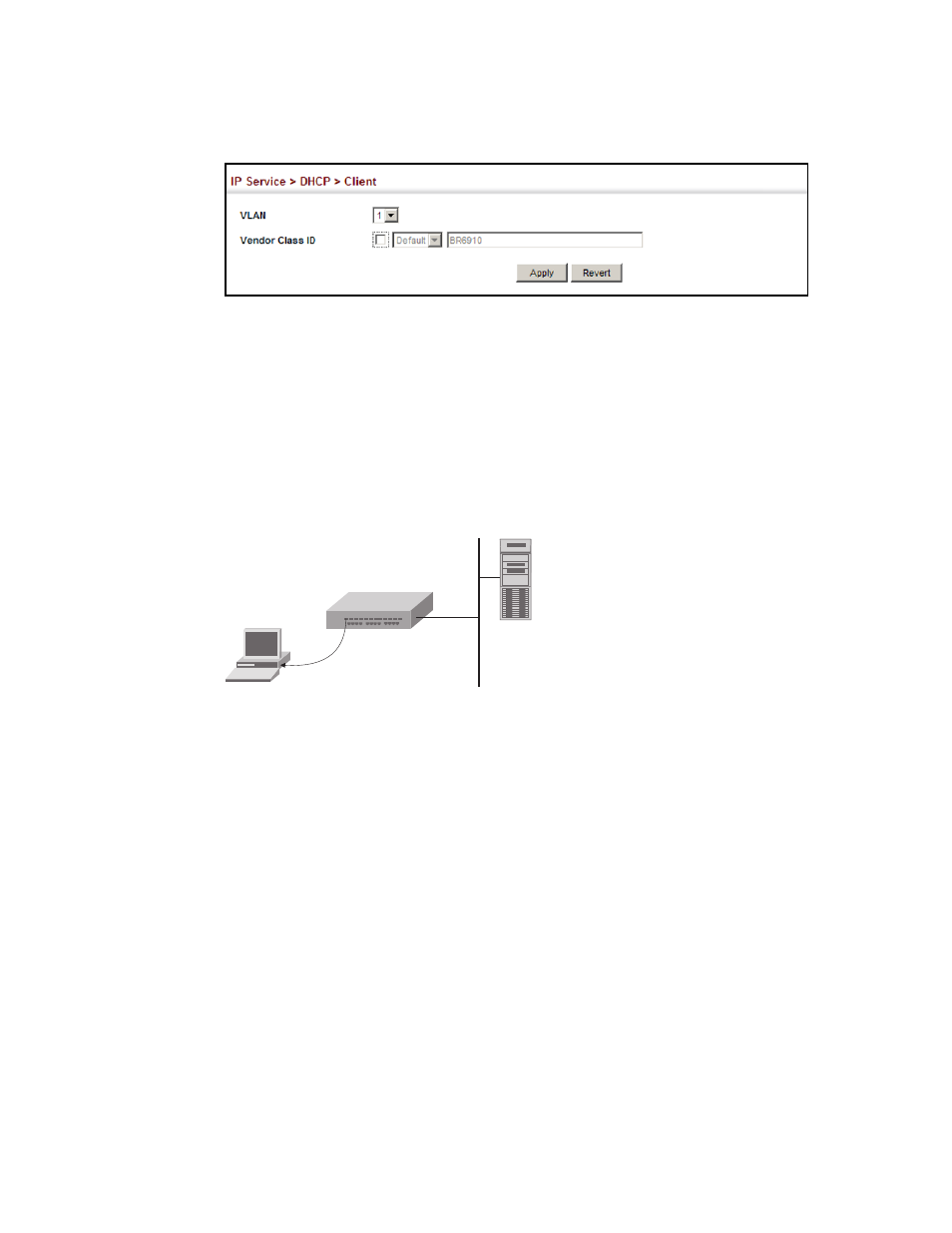

FIGURE 366

Specifying A DHCP Client Identifier

Configuring DHCP Relay Service

Use the IP Service > DHCP > Relay page to configure DHCP relay service for attached host devices.
If DHCP relay is enabled, and this switch sees a DHCP request broadcast, it inserts its own IP
address into the request so that the DHCP server will know the subnet where the client is located.
Then, the switch forwards the packet to the DHCP server. When the server receives the DHCP
request, it allocates a free IP address for the DHCP client from its defined scope for the DHCP
client’s subnet, and sends a DHCP response back to the DHCP relay agent (i.e., this switch). This
switch then broadcasts the DHCP response received from the server to the client.

FIGURE 367

Layer 3 DHCP Relay Service

CLI References

“ip dhcp relay server”

on page 593

“ip dhcp restart relay”

on page 593

Command Usage

You must specify the IP address for at least one DHCP server. Otherwise, the switch’s DHCP
relay agent will not forward client requests to a DHCP server.

DHCP relay configuration will be disabled if an active DHCP server is detected on the same
network segment.

Parameters
These parameters are displayed in the web interface:

VLAN ID – ID of configured VLAN.

Server IP Address – Addresses of DHCP servers to be used by the switch’s DHCP relay agent in
order of preference.

Restart DHCP Relay – Use this button to re-initialize DHCP relay service.

Provides IP address
compatible with switch
segment to which client
is attached

DHCP
Server
