676 Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
33
Displaying Hardware/Software Versions
Interface
To configure general system information:
1. Click System, General.
2. Specify the system name, location, and contact information for the system administrator.
3. Click Apply.

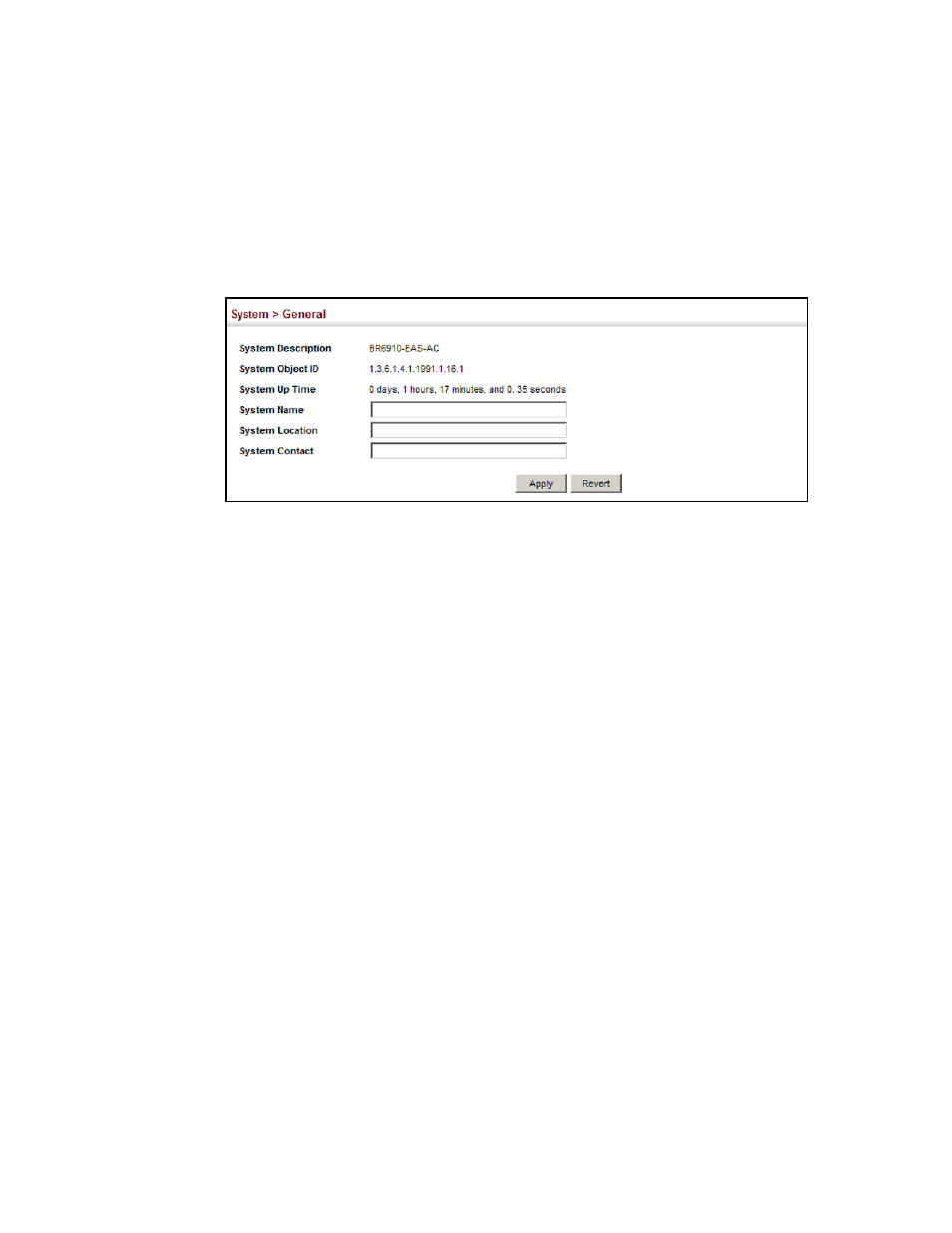

FIGURE 10 System Information
Displaying Hardware/Software Versions
Use the System > Switch page to display hardware/firmware version numbers for the main board
and management software, as well as the power status of the system.
CLI References
• “System Management Commands” on page 47
Parameters
The following parameters are displayed:
Main Board Information
• Serial Number – The serial number of the switch.
• Number of Ports – Number of built-in ports.
• Hardware Version – Hardware version of the main board.
• Internal Power Status – Displays the status of the internal power supply.
Management Software Information
• Role – Shows that this switch is operating as Master or Slave.
• EPLD Version – Version number of EEPROM Programmable Logic Device.
• Loader Version – Version number of loader code.
• Operation Code Version – Version number of runtime code.
• Thermal Detector – The first detector is located between the physical layer ASICs on the main
board. The second and third detector are located on the right and left side of the daughter
board.
• Temperature – Temperature at specified thermal detection point.
