812
Brocade 6910 Ethernet Access Switch Configuration Guide
53-1002651-02
38
Automatic Traffic Control
Parameters
These parameters are displayed in the web interface:
•
Broadcast Apply Timer – The interval after the upper threshold has been exceeded at which to
apply the control response to broadcast storms. (Range: 1-300 seconds; Default: 300
seconds)
•
Broadcast Release Timer – The time at which to release the control response after ingress
traffic has fallen beneath the lower threshold for broadcast storms. (Range: 1-900 seconds;
Default: 900 seconds)
•
Multicast Apply Timer – The interval after the upper threshold has been exceeded at which to
apply the control response to multicast storms. (Range: 1-300 seconds; Default: 300 seconds)
•
Multicast Release Timer – The time at which to release the control response after ingress
traffic has fallen beneath the lower threshold for multicast storms. (Range: 1-900 seconds;
Default: 900 seconds)
Interface
To configure the response timers for automatic storm control:
1. Click Traffic, Auto Traffic Control.
2. Select Configure Global from the Step field.
3. Set the apply and release timers for broadcast and multicast storms.
4. Click Apply.

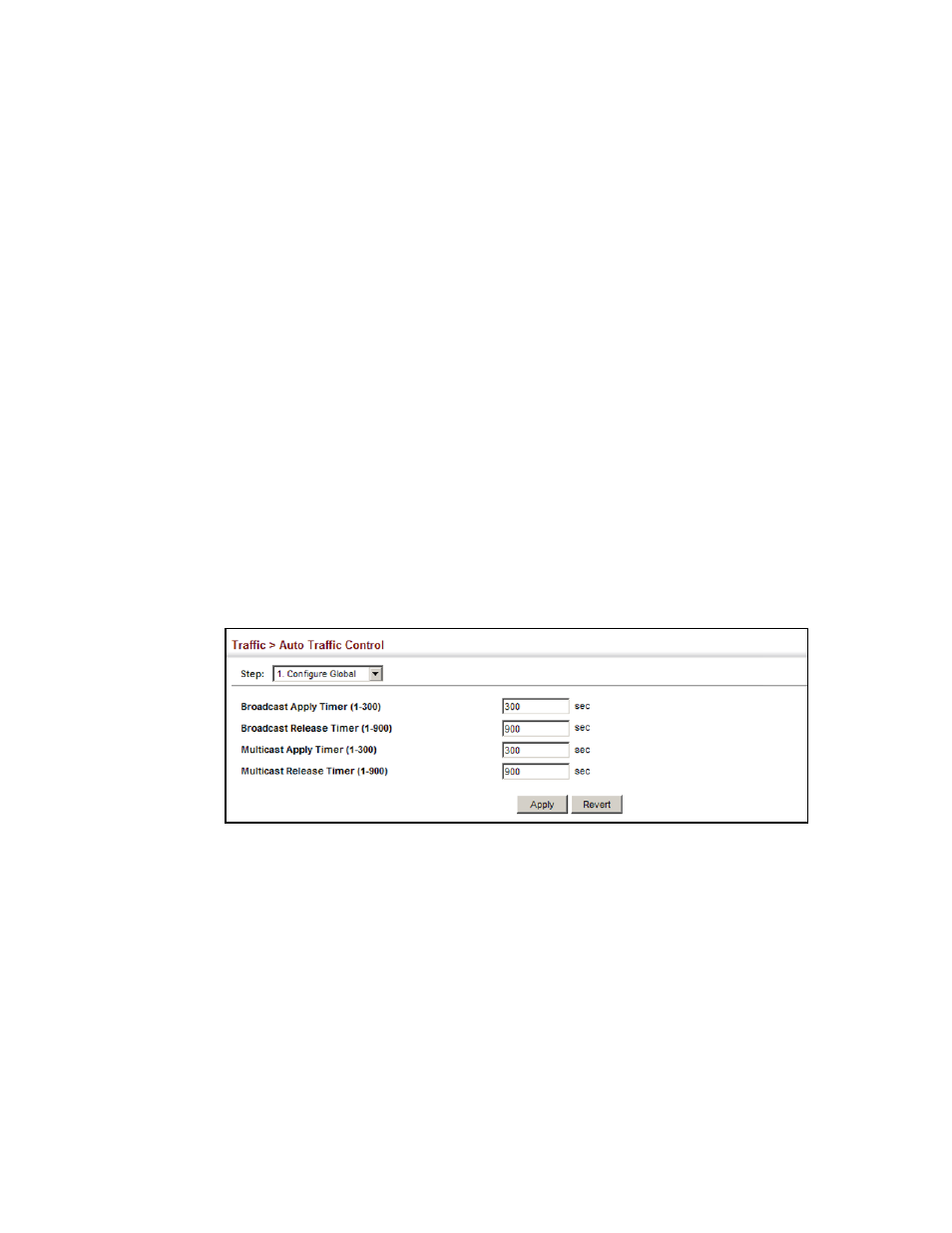

FIGURE 141
Configuring ATC Timers
Configuring ATC Thresholds and Responses
Use the Traffic > Auto Traffic Control (Configure Interface) page to set the storm control mode
(broadcast or multicast), the traffic thresholds, the control response, to automatically release a
response of rate limiting, or to send related SNMP trap messages.
CLI References
•
