Brocade 6910 Ethernet Access Switch Configuration Guide (Supporting R2.2.0.0) - Manual (Page 1027)

Brocade 6910 Ethernet Access Switch Configuration Guide 971
53-1002651-02
43
Simple Network Management Protocol

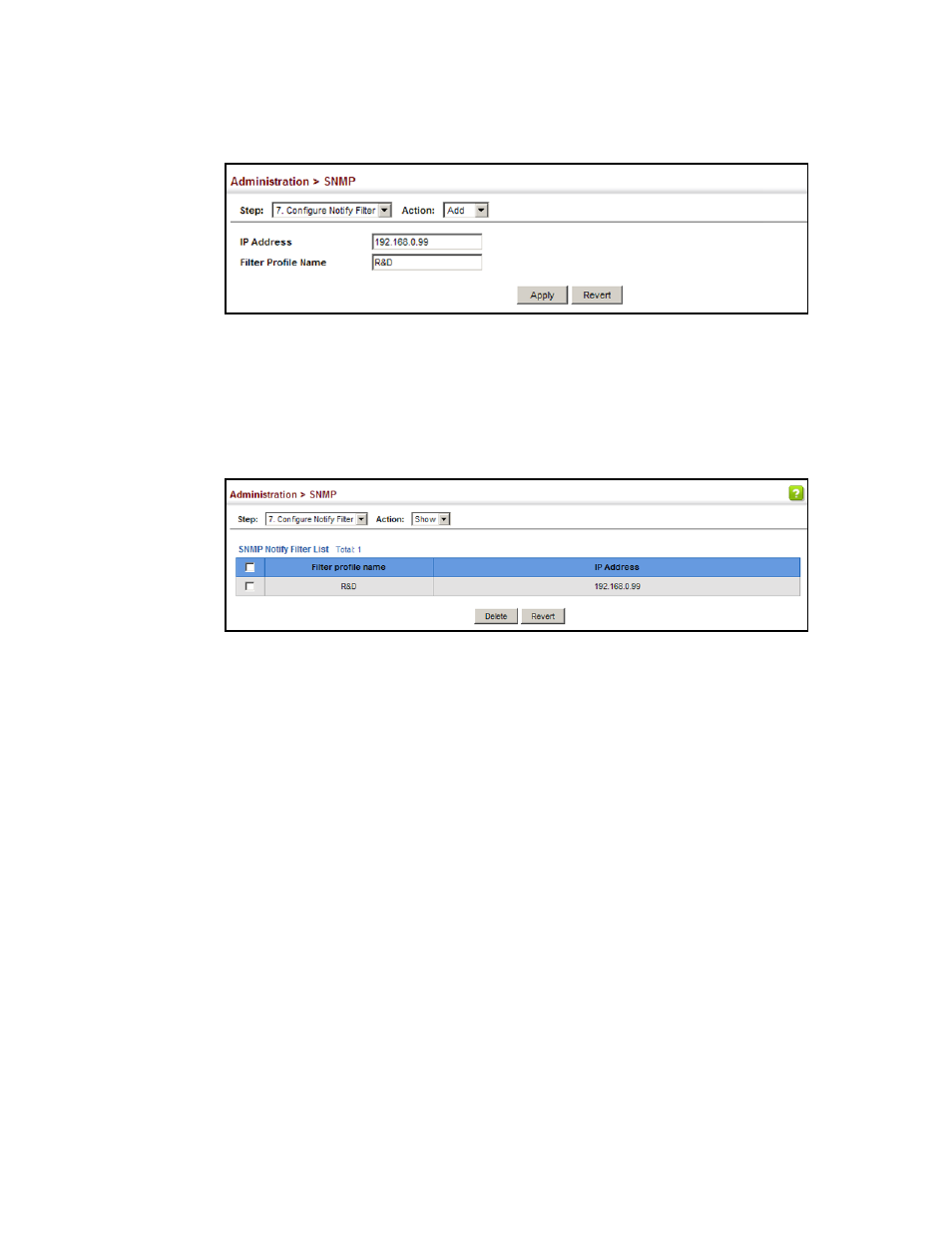

FIGURE 272 Creating SNMP Notification Logs
To show configured SNMP notification logs:
1. Click Administration, SNMP.
2. Select Configure Notify Filter from the Step list.
3. Select Show from the Action list.
FIGURE 273 Showing SNMP Notification Logs
Showing SNMP Statistics
Use the Administration > SNMP (Show Statistics) page to show counters for SNMP input and output
protocol data units.
CLI References
• “show snmp” on page 109
Parameters
The following counters are displayed:
• SNMP packets input – The total number of messages delivered to the SNMP entity from the
transport service.
• Bad SNMP version errors – The total number of SNMP messages which were delivered to the
SNMP entity and were for an unsupported SNMP version.
• Unknown community name – The total number of SNMP messages delivered to the SNMP
entity which used a SNMP community name not known to said entity.
• Illegal operation for community name supplied – The total number of SNMP messages
delivered to the SNMP entity which represented an SNMP operation which was not allowed by
the SNMP community named in the message.
• Encoding errors – The total number of ASN.1 or BER errors encountered by the SNMP entity
when decoding received SNMP messages.
