Brocade 6910 Ethernet Access Switch Configuration Guide

1031

53-1002651-02

43

Connectivity Fault Management

Interface
To show information for remote MEPs:

1. Click Administration, CFM.

2. Select Show Information from the Step list.

3. Select Show Remote MEP from the Action list.

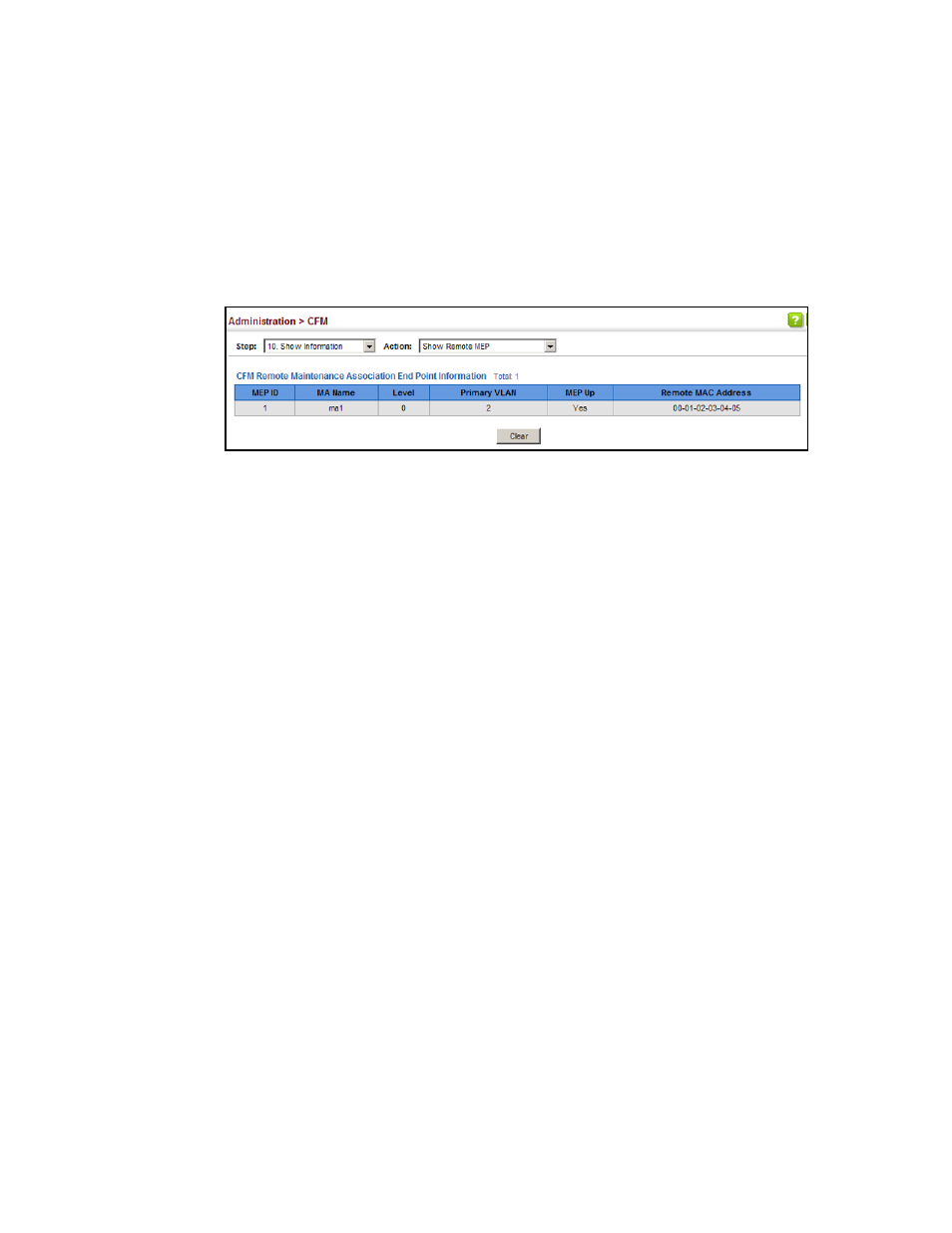

FIGURE 320

Showing Information on Remote MEPs

Displaying Details for Remote MEPs

Use the Administration > CFM > Show Information (Show Remote MEP Details) page to show
detailed information for MEPs located on other devices which have been discovered through
continuity check messages, or statically configured in the MEP database and verified through
cross-check messages.

CLI References

“show ethernet cfm maintenance-points remote detail”

on page 535

Parameters
These parameters are displayed:

MD Index – Domain index. (Range: 1-65535)

MA Index – MA identifier. (Range: 1-2147483647)

MEP ID – Maintenance end point identifier. (Range: 1-8191)

MD Name – Maintenance domain name.

MA Name – Maintenance association name.

Level – Authorized maintenance level for this domain.

MAC Address – MAC address of this MEP entry.

Primary VLAN – Service VLAN ID.

Incoming Port – Port to which this remote MEP is attached.

CC Lifetime – Length of time to hold messages about this MEP in the CCM database.

Age of Last CC Message – Length of time the last CCM message about this MEP has been in
the CCM database.

Frame Loss – Percentage of transmitted frames lost.

CC Packet Statistics – The number of CCM packets received successfully and those with
errors.

Port State – Port states include:
