Displaying the Status of Remote Interfaces

Use the Administration > OAM > Remote Interface page to display information about attached
OAM-enabled devices.

CLI References

“show efm oam status remote interface”

on page 578

Parameters
These parameters are displayed:

Port – Port identifier. (Range: 1-12)

MAC Address – MAC address of the OAM peer.

OUI – Organizational Unit Identifier of the OAM peer.

Remote Loopback – Shows if remote loopback is supported by the OAM peer.

Unidirectional Function – Shows if this function is supported by the OAM peer.
If supported, this indicates that the OAM entity supports the transmission of OAMPDUs on links
that are operating in unidirectional mode (where traffic flows in one direction only). Some
newer physical layer devices support the optional ability to encode and transmit data while one
direction of the link is non-operational. This function allows OAM remote fault indication during
fault conditions. This switch does not support the unidirectional function, but can parse error
messages sent from a peer with unidirectional capability.

Link Monitor – Shows if the OAM entity can send and receive Event Notification OAMPDUs.

MIB Variable Retrieval – Shows if the OAM entity can send and receive Variable Request and
Response OAMPDUs.

Interface
To display information about attached OAM-enabled devices:

1. Click Administration, OAM, Remote Interface.

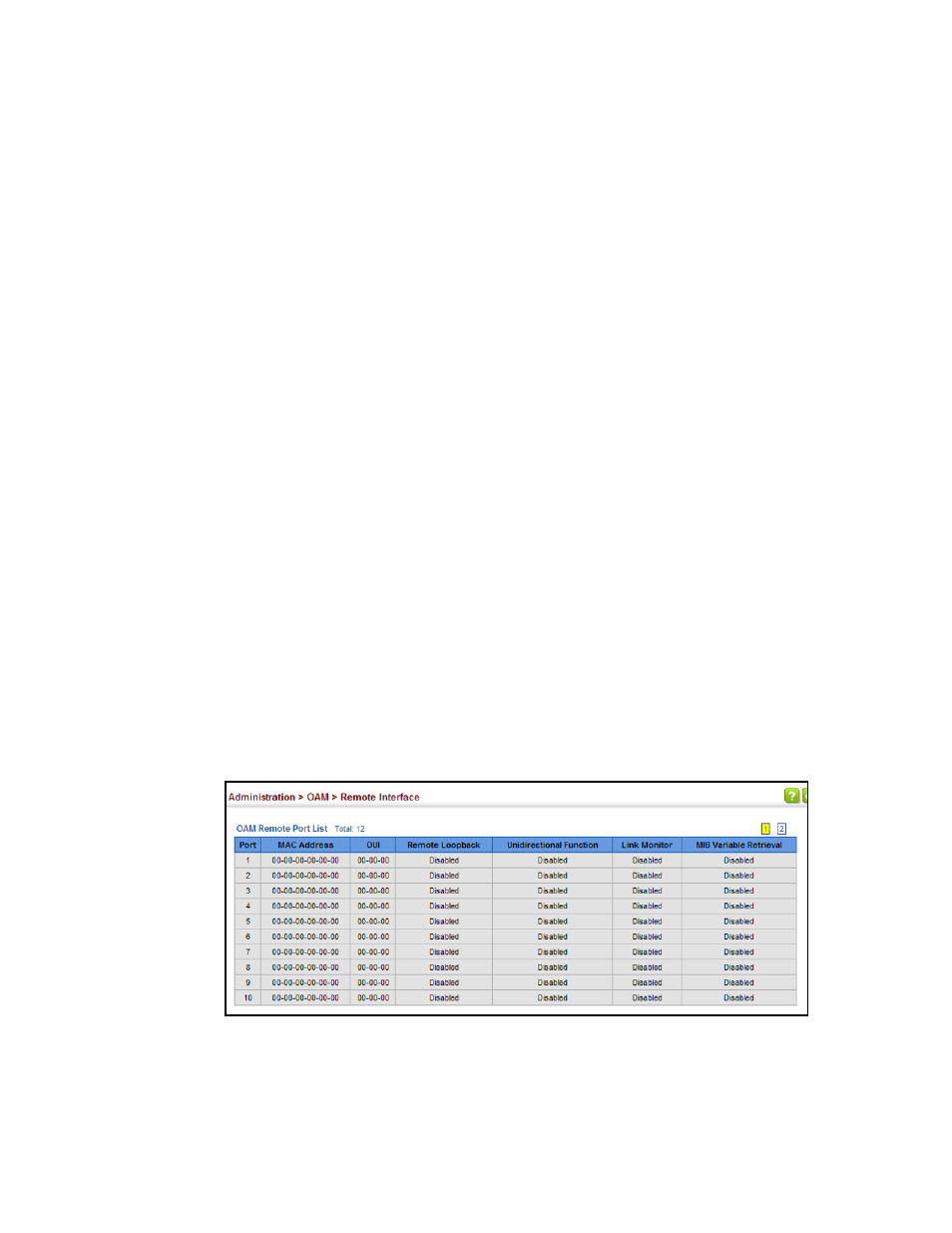

FIGURE 330

Displaying Status of Remote Interfaces
