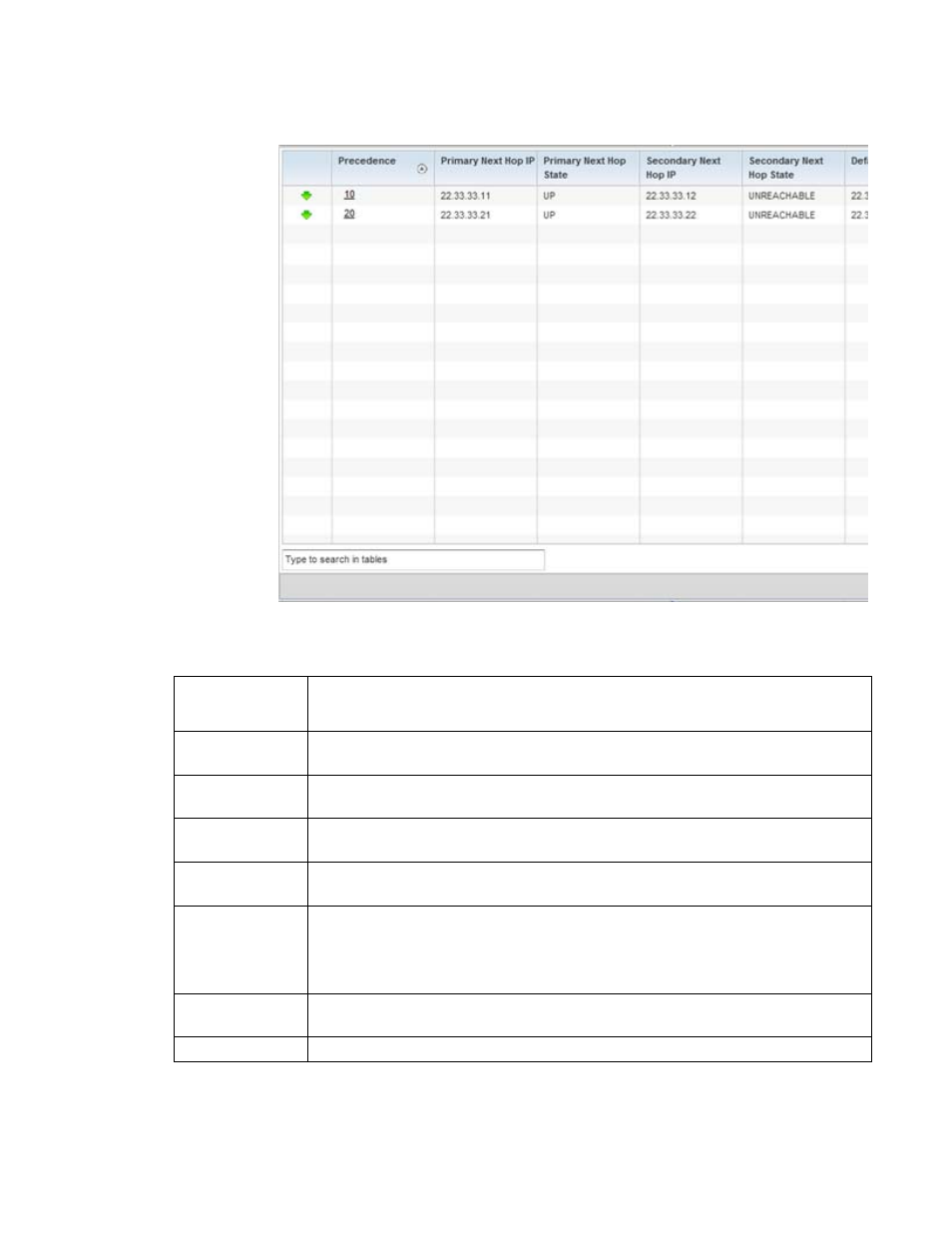

FIGURE 41 Access Point - Policy Based Routing screen
The Policy Based Routing screen displays the following:
Precedence Lists the numeric precedence (priority) assigned to each listed PBR configuration. A route-map
consists of multiple entries, each carrying a precedence value. An incoming packet is matched
against the route-map with the highest precedence (lowest numerical value).
Primary Next Hop
IP Lists the IP address of the virtual resource that, if available, is used with no additional route
considerations.
Primary Next Hop
State Displays whether the primary hop is applied to incoming routed packets (UP/UNREACHABLE).
Secondary Next
Hop IP If the primary hop is unavailable, a second resource is used. This column lists the address set for the
alternate route in the election process.
Secondary Next
Hop State Displays whether the secondary hop is applied to incoming routed packets (UP/UNREACHABLE).
Default Next Hop
IP If a packet subjected to PBR does not have an explicit route to the destination, the configured
default next hop is used. This is either the IP address of the next hop or the outgoing interface. Only
one default next hop is available. The difference between the next hop and the default next-hop is in
case of former, PBR occurs first, then destination based routing. In case of the latter, the order is
reverse.
Default Next Hop
State Displays whether the default hop is being applied to incoming routed packets.
Refresh Select the Refresh button to update the screen’s statistics counters to their latest values.
