Brocade Mobility Access Point System Reference Guide 29
53-1003100-01
3

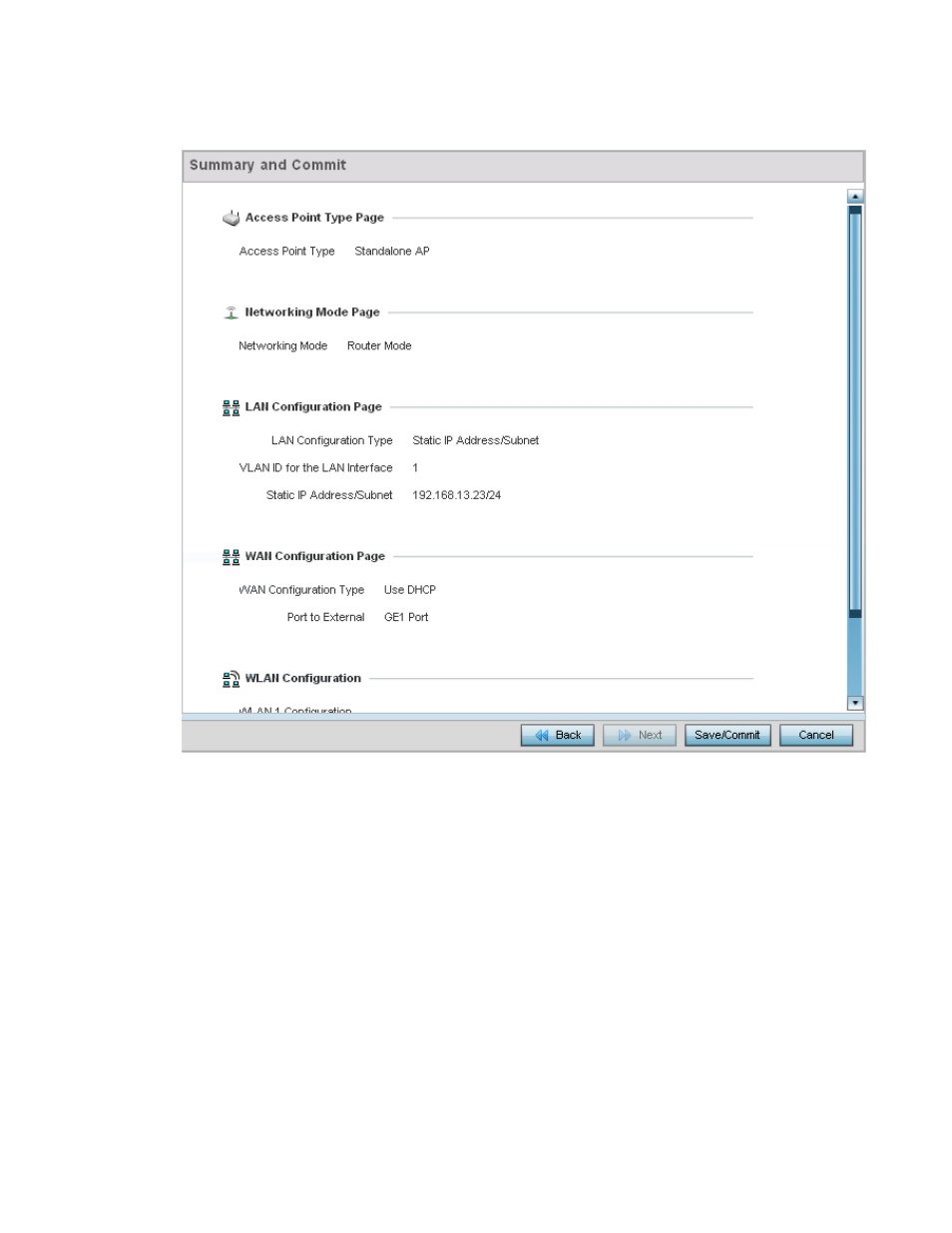

FIGURE 12 Initial Setup Wizard - Summary And Commit Screen of the Typical Setup Wizard
If the configuration displays as intended, select the Save/Commit button to implement these
settings to the access point’s configuration. If additional changes are warranted based on the
summary, either select the target page from the Navigation Panel, or use the Back button.
Advanced Setup Wizard
Using the Initial Setup Wizard
The Advanced Setup is the recommended wizard for users who want more control on how the
access point is configured beyond minimum default settings. This wizard provides additional radio
and system information settings.
The Advanced Setup wizard consists of the following:
• Network Topology Selection
• LAN Configuration
• WAN Configuration
