36 Brocade Mobility Access Point System Reference Guide
53-1003100-01
3
Radio Configuration
Advanced Setup Wizard
Use the Radio Configuration screen to define radio support for the 2.4 GHz radio band, 5.0 GHz
radio band or set the radio as a dedicated sensor.
NOTE
The Radio Configuration screen displays separate configurable fields for each access point radio.
Supported access point models can have from one to three (Brocade Mobility 7131 Access Point)
radios. The ADSP Sensor Server field displays at the bottom of the screen only if one of the radios
has been dedicated as a sensor.

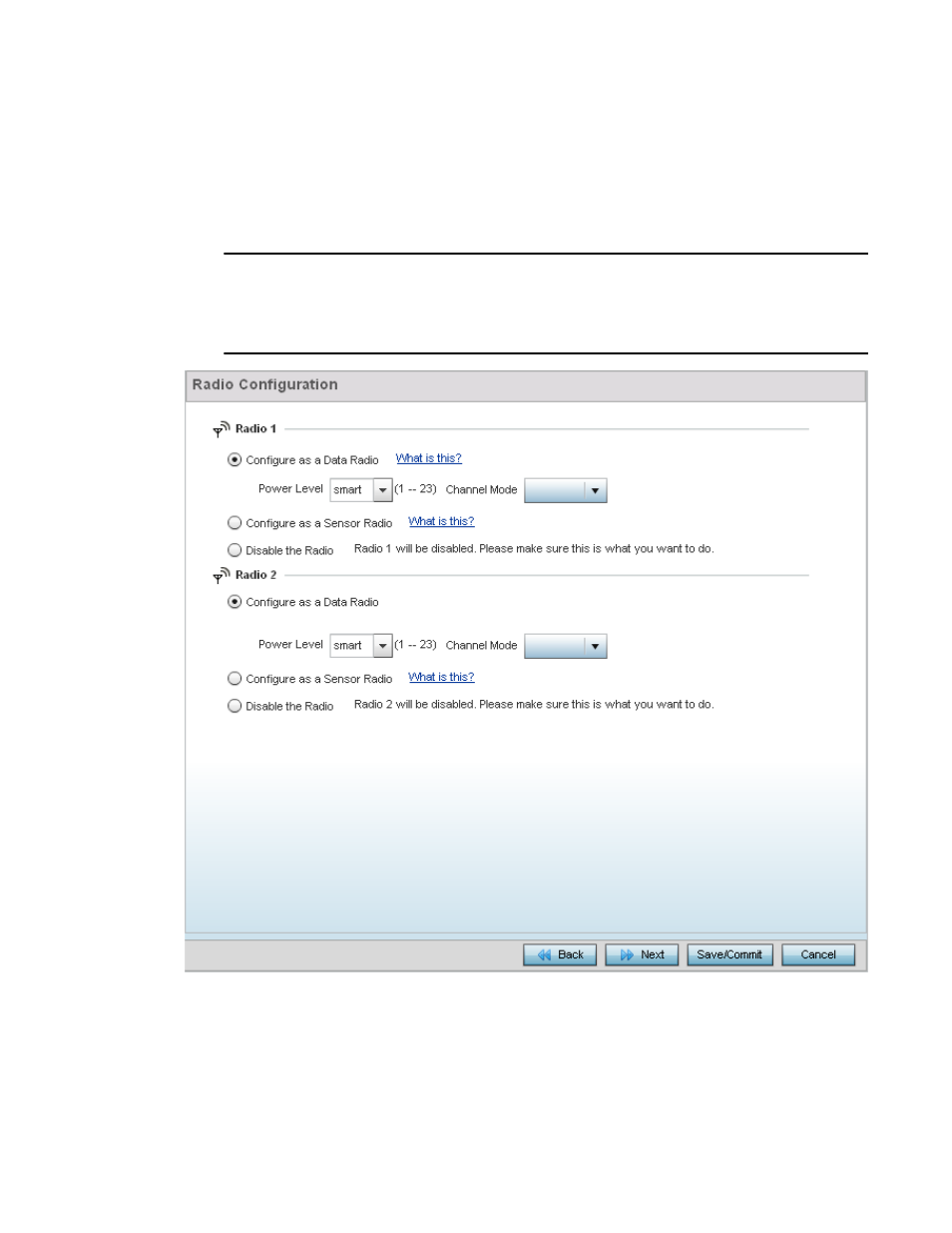

FIGURE 17 Initial Setup Wizard - Radio Configuration screen of the Advanced Setup Wizard
Set the following for each radio:
• Configure as a Data Radio - Select this option to dedicate this radio to WLAN client support
in the selected 2.4 GHz or 5.0 GHz radio band.
