7 Application Instructions API 50-99

D V P - P L C A P P L I C AT I O N M A N U A L

7-77

CR #10

CR #9

Lower 16-bit

Designated CR number

Higher 16-bit

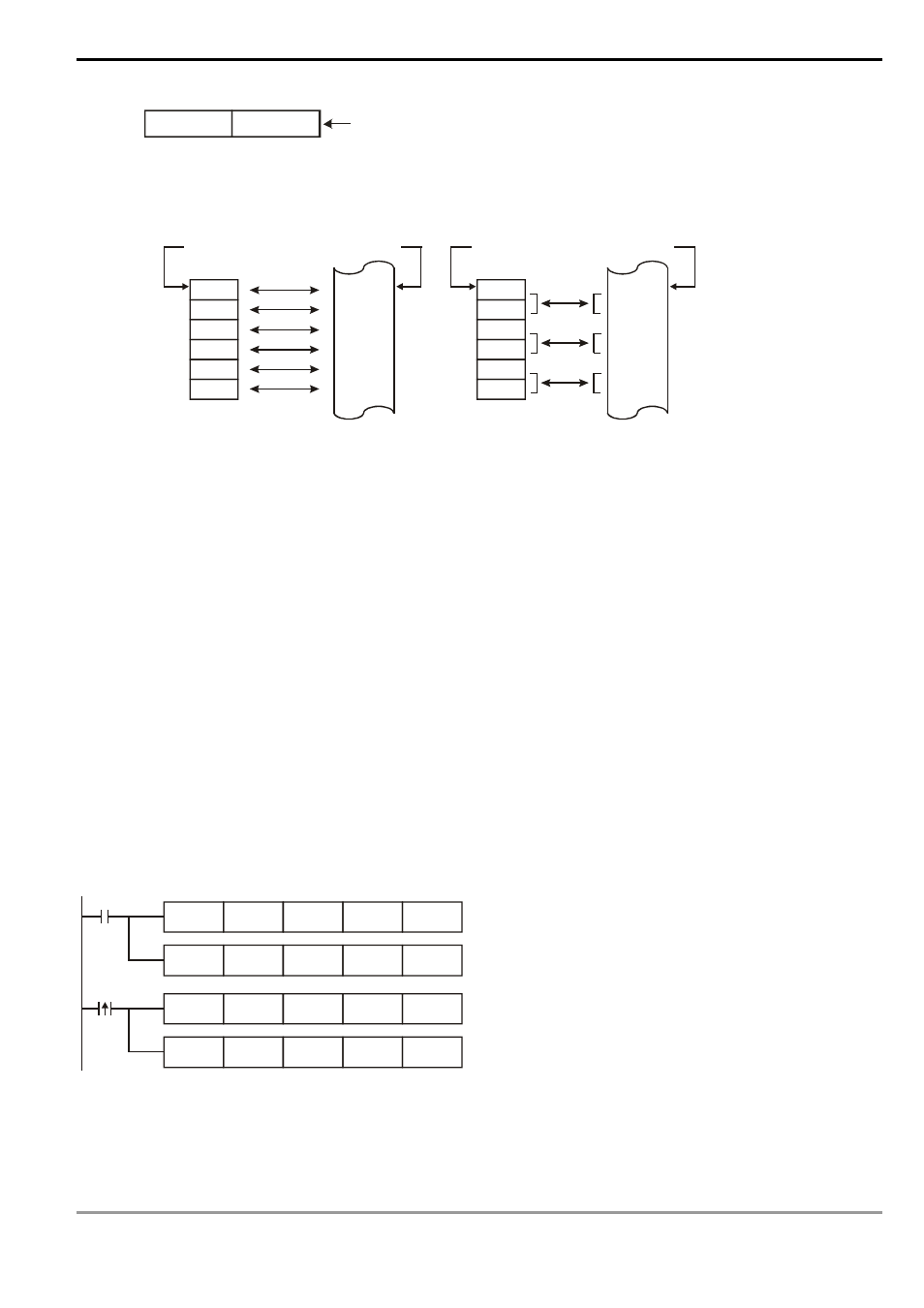

d) Number of groups “n” to be transmitted: n = 2 in 16-bit instructions and n = 1 in 32-bit instructions mean

the same.

D0
D1
D2
D3
D4
D5

CR #5
CR #6
CR #7
CR #8
CR #9
CR #10

D0
D1
D2
D3
D4
D5

CR #5
CR #6
CR #7
CR #8
CR #9
CR #10

Designated device

Designated CR

Designated device Designated CR

16-bit instruction when n=6

32-bit instruction when n=3

4. ES/EX/SS series MPU does not have M1083. During the execution of FROM/TO instruction, all external or

internal interruption subroutines will be forbidden. The interruptions are allowed only after FROM/TO instruction

finishes its execution. FROM/TO instruction can also be used in an interruption subroutine.

5. M1083 for switching instruction modes in SA/SX/SC/EH/EH2/SV series MPU:

a) When M1083 = Off, during the execution of FROM/TO instruction, all external or internal interruption

subroutines will be forbidden. The interruptions are allowed only after FROM/TO instruction finishes its

execution. FROM/TO instruction can also be used in an interruption subroutine.

b) When M1083 = On and an interruption signal occurs during the execution of FROM/TO instruction, the

interruption will be processed first (with a 100us delay) and the execution of FROM/TO will be stopped. After

the interruption subroutine finishes its execution, the program will jump to the next instructio of FROM/TO.

FROM/TO cannot be used in an interruption subroutine.

FROM/TO Application Example 1:

Adjust the A/D conversion curve of DVP-04AD. Set the OFFSET value of CH1 as 0V (= K0

LSB

) and GAIN value as

2.5V (= K2,000

LSB

).

M1002

TO

K0

K1

H0

K1

TO

K0

K33

H0

K1

X0

TO

K0

K18

K0

K1

TO

K0

K24

K2000

K1

1. Write H0 to CR#1 of anlog input module No. 0 and set CH1 as mode 0 (voltage input: -10V ~ +10V).

2. Write H0 to CR#33 and allow OFFSET/GAIN tuning in CH1 ~ CH4.

3. When X0 goes from Off to On, write the OFFSET value K0

LSB

into CR#18 and the GAIN value K2,000

LSB

into
