5 Categories & Use of Application Instructions

DVP-PLC Application Manual

5-11

API 103 REV (ES/SA/EH), API 104 STOP (ES/SA/EH), API 105 RDST (ES/SA/EH), API 106 RSTEF

(ES/SA/EH), API 150 MODRW (ES/SA/EH), API 151 PWD (EH).

2. Instructions which can be executed only twice: API 57 PLSY (EH), API 58 PWM (SA/EH), API 59 PLSR (SA/EH),

API 72 DSW (EH).

3. Instructions which can be executed only 4 times: API 57 PLSY (EH2/SV), API 58 PWM (EH2/SV), API 169

HOUR (EH).

4. Instructions which can be executed only 8 times: API 64 TTMR (EH).

5. In SA series MPU, there is on limitation on the times of using the high-speed output instructions PLSY, PWM and

PLSR, bit only one high-speed output instruction will be enabled in every scan.

6. In EH series MPU, there is no limitation on the times of using hardware high-speed counter instructions DHSCS,

DHSCR and DHSZ, but when the three instructions are enabled at the same time, DHSCS will occupy 1 memory

unit, DHSCR 1 memory unit, and DHSZ 2 memory units. The total memeory units occupied by the three

instructions cannot be more than 8 units. If there are more than 8 memory units occupied, the PLC system will

execute the instruction that is first scanned and enabled and ignore the rest.

5.3 Handling of Numeric Values

ƒ

Devices only with On/Off status are called bit devices, e.g. X, Y, M and S. Devices used exclusively for storing

numeric values are called word devices, e.g. T, C, D, E and F. Bit device plus a specific bit device (place a digit

before the bit device in Kn) can be used in the operand of an application instruction in the form of numeric value.

ƒ

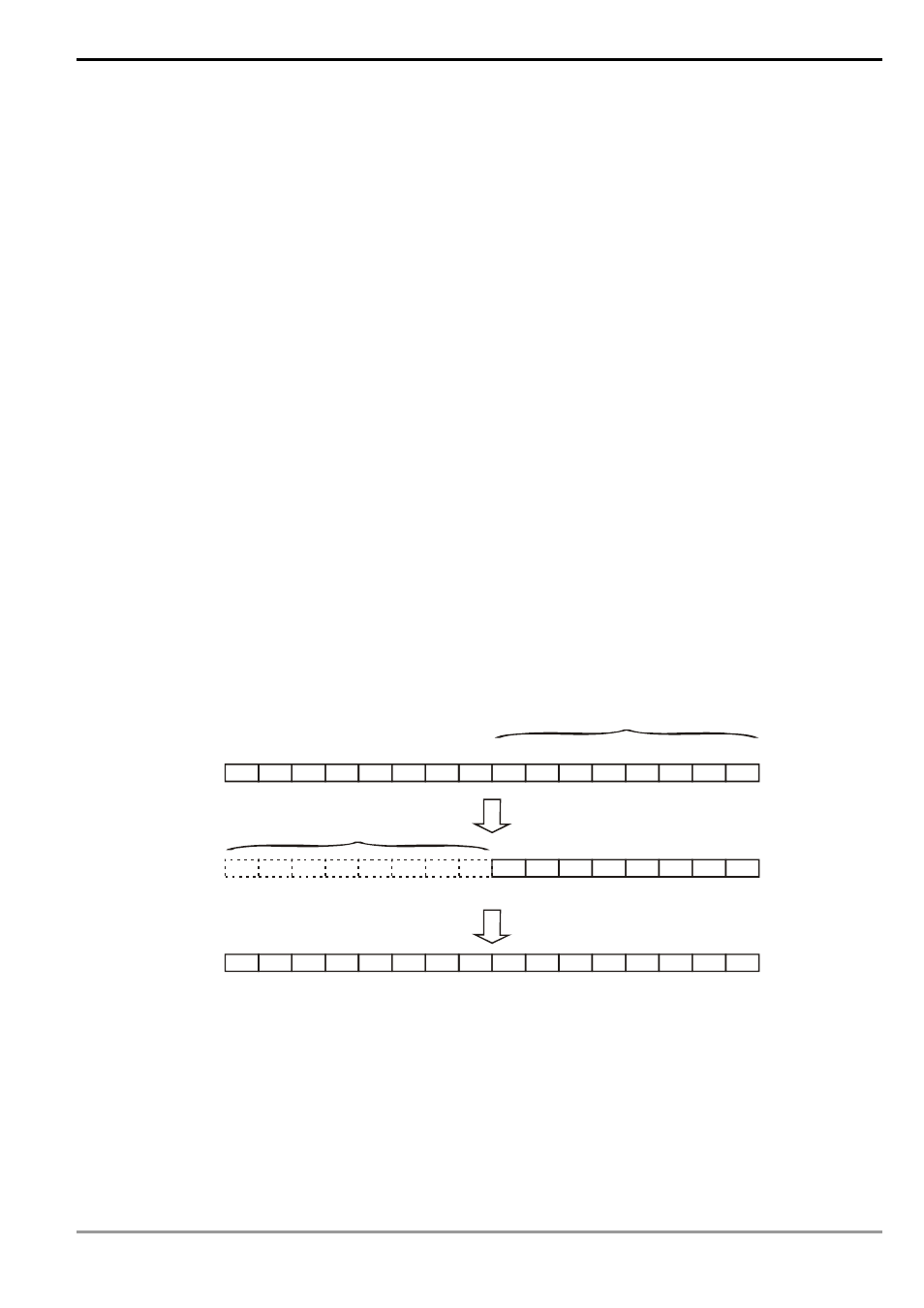

n = K1 ~ K4 for a 16-bit value; n = K1 ~ K8 for a 32-bit value. For example, K2M0 refers to a 8-bit value composed of

M0 ~ M7.

M15

M14 M13 M12

M11 M10

M9

M8

M7

M6

M5

M4

M3

M2

M0

M1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

D1

D1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

b15

b14

b13 b12

b11

b10

b9

b8

b7

b6

b5

b4

b3

b2

b0

b1

0

0

0

0

0

0

0

0

Valid data

Reset to 0

Transmit to

Equals

Low byte

Low byte

ƒ

K1M0, K2M0, and K3M0 are transmitted to 16-bit registers and the vacant high bits will be filled in “0”. The same

rule applied to when K1M0, K2M0, K3M0, K4M0, K5M0, K6M0, and K7M0 are transmitted to 32-bit registers and

the vacant high bits will be filled in “0”.

ƒ

In the 16-bit (or 32-bit) operation, if the contents of the operand are designated as bit devices K1 ~ K3 (or K4 ~ K7),

the vacant high bits will be regarded as “0”. Therefore, the operation is a positive-value one.
