Brocade Network Advisor IP User Manual v12.1.0 User Manual
Page 947
Brocade Network Advisor IP User Manual
893
53-1002947-01
LSP
30
3. Click the Add button.
The Admin Group Configuration dialog box of the Admin Group Configuration wizard displays
(
).

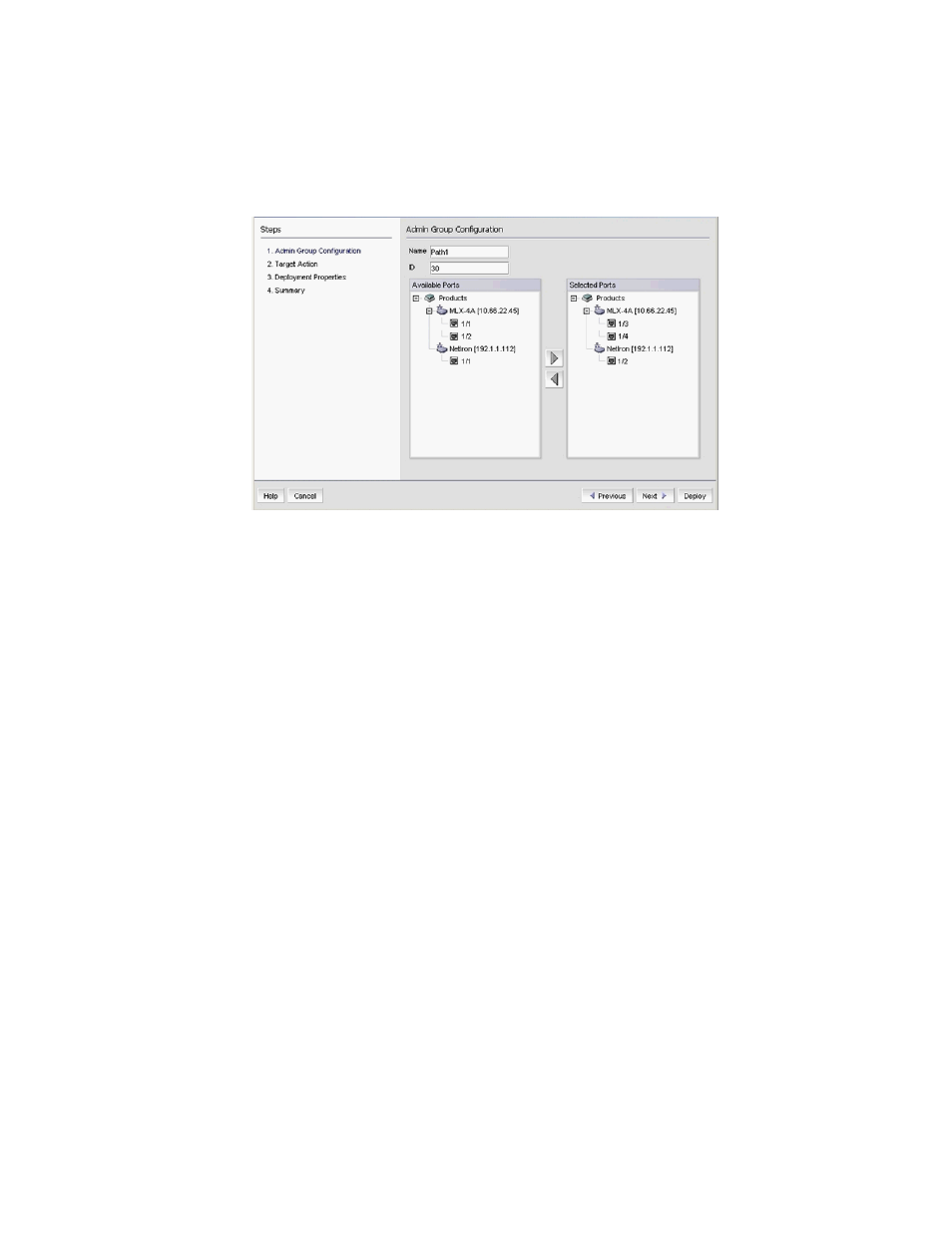

FIGURE 326
Add Admin Groups Configuration dialog box, Configuration Info pane
4. Enter an a name for the Admin Group in the Name field. A maximum of 32 ASCII characters is
allowed.
5. Enter an Admin Group ID in the ID field. The ID must be an integer from 0 to 31.
6. Under Available Ports, select the ports you want to include in the admin group and click the
right arrow button to move the ports to Selected Ports. Note that only those physical interfaces
(ports) which have an IP address assigned are shown. All other interfaces are filtered out do
not display.
7. If this is a one-time deployment and you don’t want to save the admin group configuration to
flash, click Deploy. If you want the configuration to persist, click Next.
If you click Next, the Persistence Properties dialog box of the Admin Group Configuration wizard
displays (
).
