516 Brocade Network Advisor IP User Manual
53-1002947-01
Adapter port WWN virtualization
17

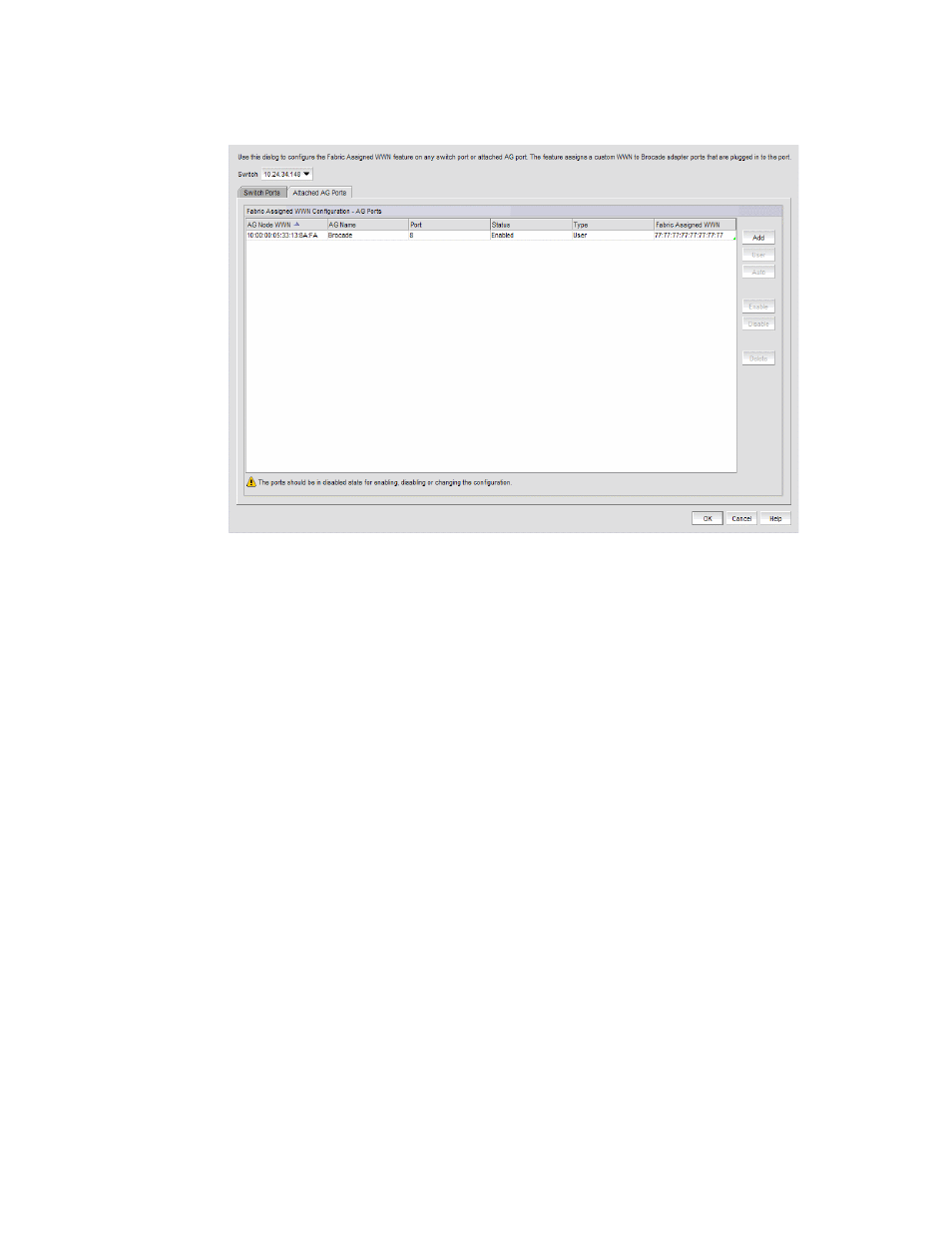

FIGURE 183 Configure Fabric Assigned WWNs dialog box--Attached AG Ports tab
Adding AG port FAWWNs
1. Select Configure > Fabric Assigned WWN.
or
Right-click the switch and select Fabric Assigned WWN.
The Configure Fabric Assigned WWNs dialog box displays.
2. Click the Attached AG Ports tab.
3. Select a row in the Fabric Assigned WWN Configuration - AG Ports list.
4. Click Add.
The Add AG Fabric Assigned WWN Configuration dialog box displays.
5. Enter a valid world wide name (WWN), with or without colons, for the Access Gateway node.
Optionally, you can select an existing AG Node WWN from the list. The AG Node WWN box
includes all discovered AG Node WWNs that are connected to the selected switch.
6. Enter a port or a port range using numbers or a hyphen (-). For example, you can enter a range
as 1-6 or you can separate values with a comma; for example: 1, 2, 5, 7-10, 20.
7. Click the Enable button to enable the FAWWN.
8. Set the FAWWN type to one of the following map types:
• Auto — If the switch port does not have an Auto FAWWN map type and the FAWWN feature
is not yet enabled on the port, a message displays.
• User defined — If this option is selected, you must enter a valid world wide name, with or
without colons. The User defined text box cannot be empty.
