Configuration snapshots
25
Searching the configuration snaphots
The Search Pre/Post Snapshots dialog box allows searching for products that have a particular
snapshot in the management server’s repository. Use the search feature to refine the snapshot
repository based on the filter criteria described in this section.
1. Click the IP tab.
2. Select Configure > Configuration > Configuration Repository.
3. Click the Configuration Snapshots tab.
4. Click the Search button.
The Search Pre/Post Snapshots dialog box, as shown in Figure 289 , displays.

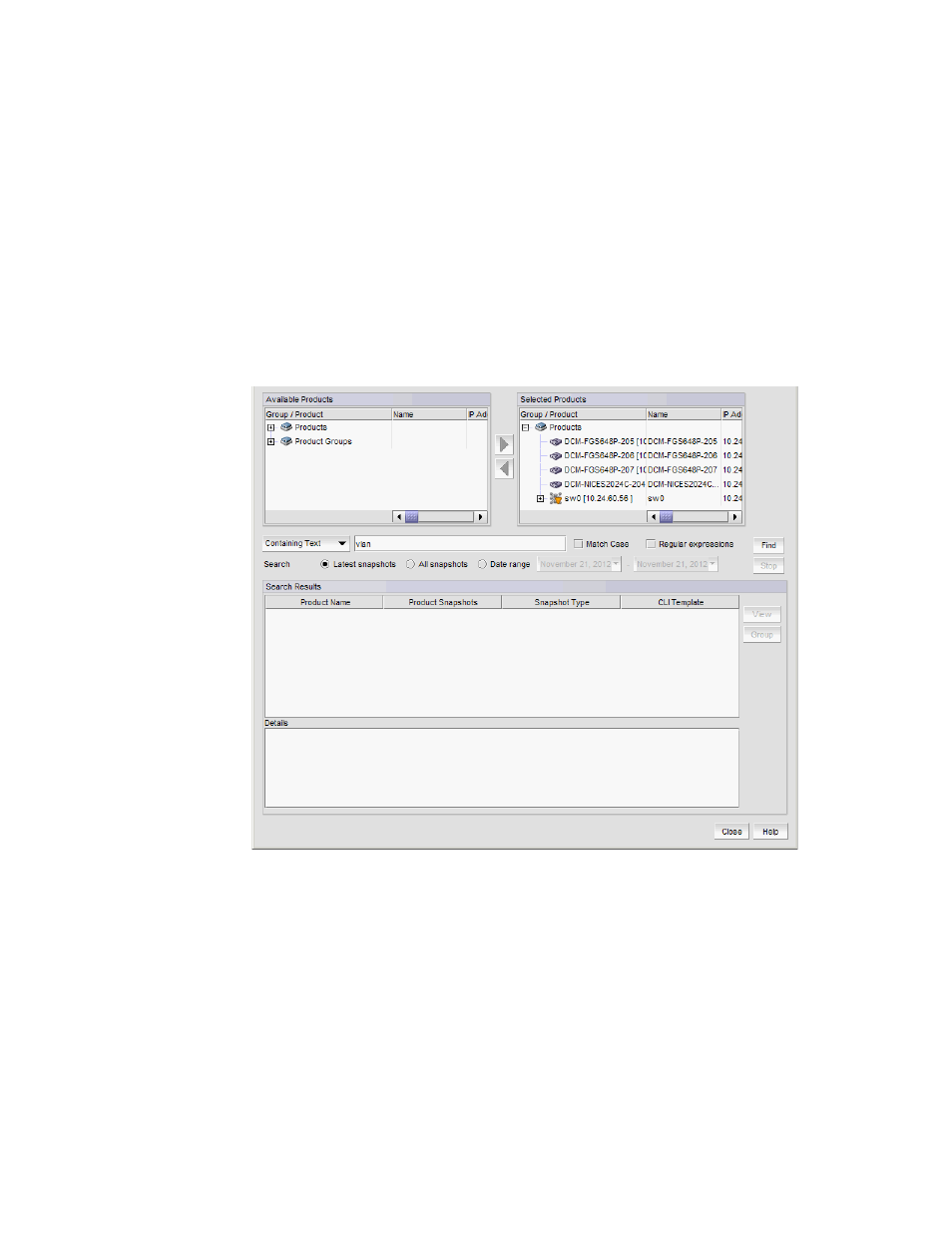

FIGURE 289 Search Pre/Post Snapshots dialog box
5. Select a product from the Available Products list and click the right arrow button to move one or
more products to the Selected Products list.
Press Ctrl or Shift and then click each product to select more than one product.
6. Enter a search text string, with a limit of 255 characters, into the Containing Text field. This text
string is used to search on snapshots of the selected products.
Press Ctrl or Shift and then click each product to select more than one product.
7. Enable the following options, as required:
