• Zoom in on an area of the widget by dragging the mouse (upper left corner to lower right
corner) to select one or more bars.
NOTE
If the ratio between the longest and shortest bar reaches 5000:1, you should maximize the
widget prior to using zoom.
To return the widget to its original state, reverse the selection (drag from lower right corner to
upper left corner).
Accessing additional data from the Host Adapter Inventory widget
Double-click a bar in the Host Adapter Inventory widget to navigate to the Host Adapter Inventory
Report.
IP Inventory widget
The IP Inventory widget ( Figure 90 ) displays the IP products inventory as stacked bar graphs.
For a VCS fabric, each VCS fabric is counted as an individual product.

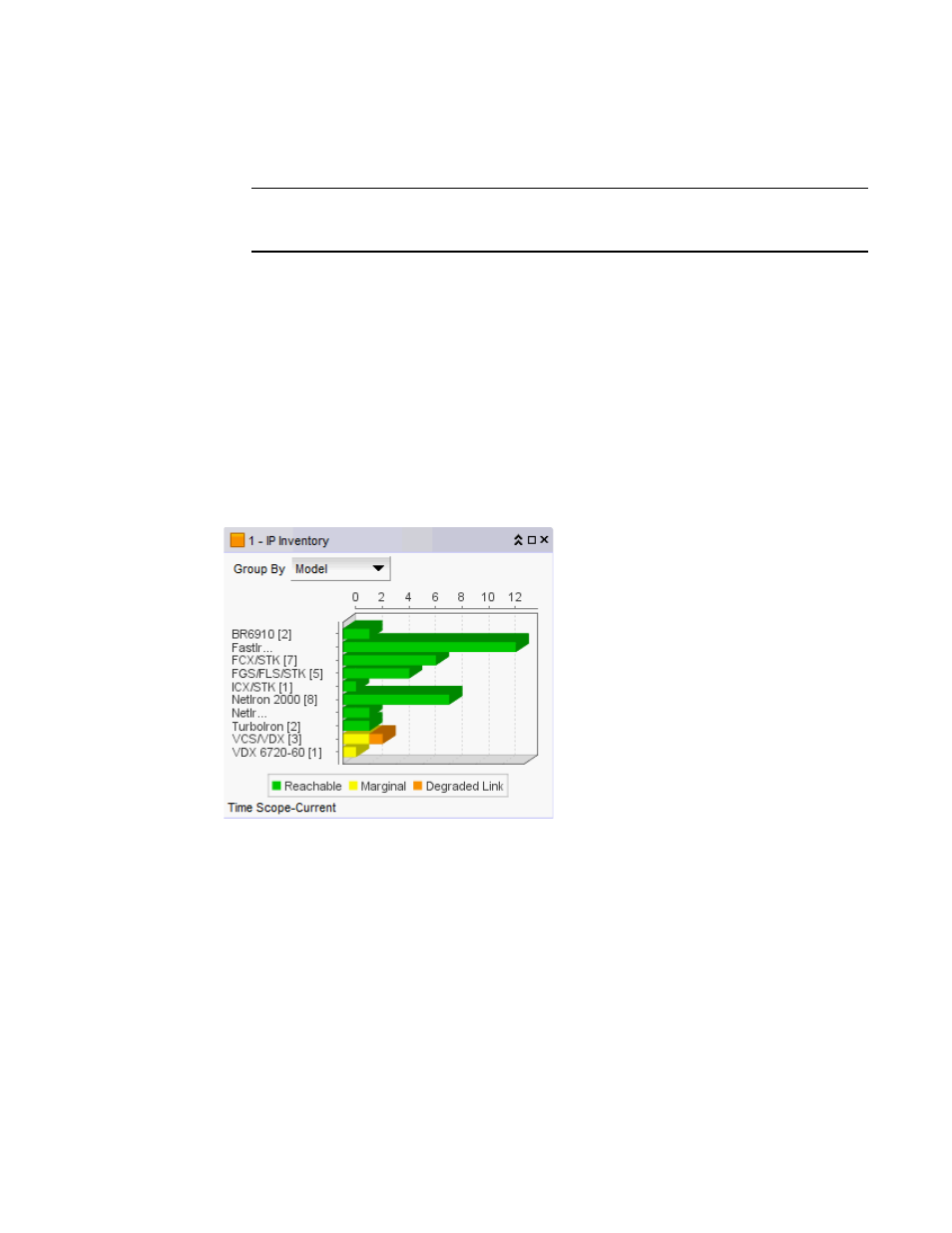

FIGURE 90 IP Inventory widget
The IP Inventory widget includes the following data:
• Severity icon/product count/widget title — The color of the worst severity followed by the IP
product count with that severity displays before the widget title.
• Group By list — Use to customize this widget to display a specific group of products. Options
include: Firmware, Model, Product Type, Location, and Contact.
• Bar chart — Displays each group as a separate bar on the graph. Displays the current state of
all products discovered for a group in various colors on each bar. Displays the color legend
below the x-axis. Tooltips showing the number of devices in that state are shown when you
pause on the bar.
