Reports Template Manager overview
42
Detailed Cluster Report
The Detailed Cluster Report report displays general and detailed configuration information about
fabrics (
Figure 507 ).

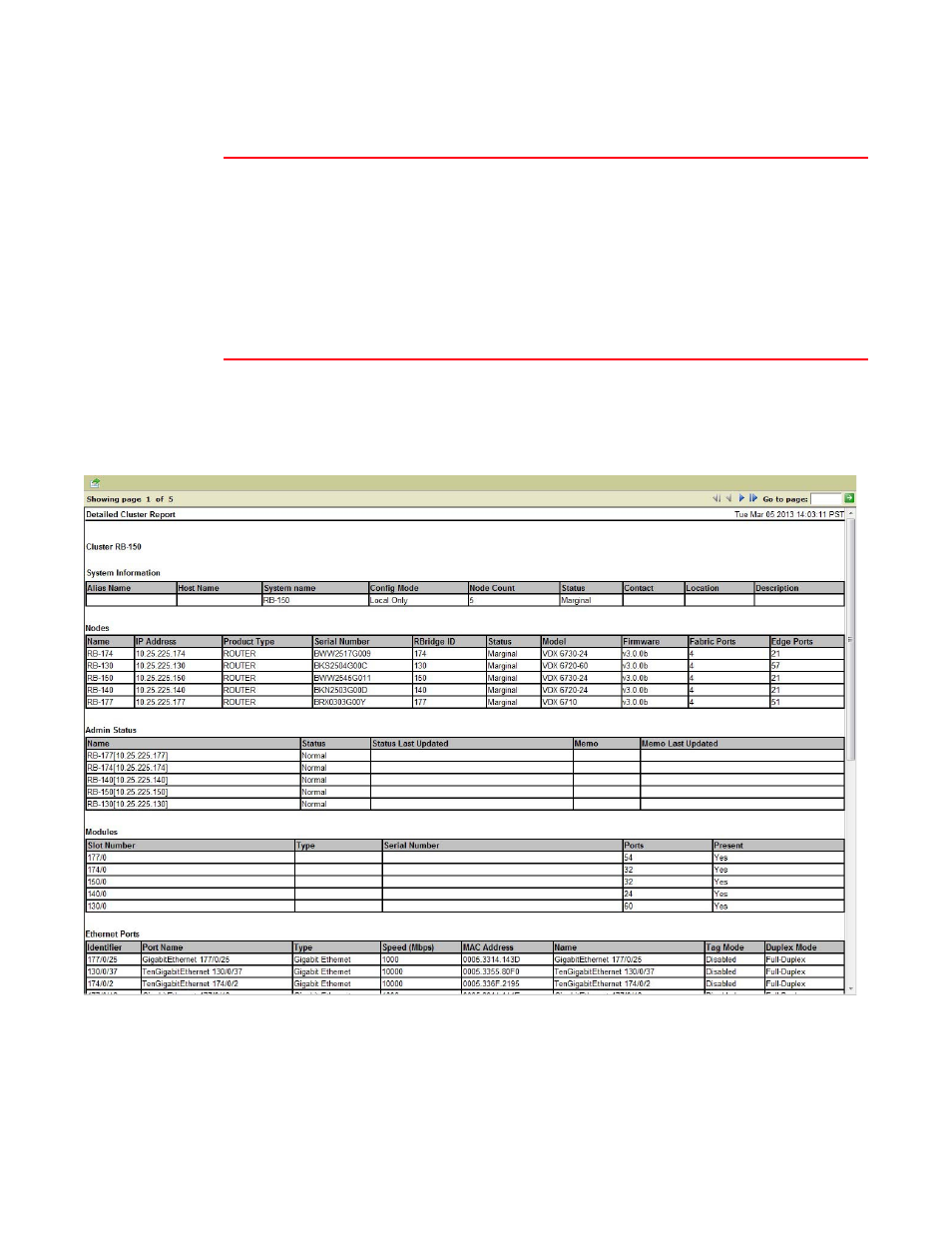

FIGURE 507 Detailed Cluster Report
Physical Ports Physical port information for each port on the product.
•
Identifier — The port identifier of the physical interfaces on the product.
•
Port Name — The port name of the physical interfaces on the product.
•
Type — The type of port of the physical interfaces on the product.
•
Speed (Mbps) — The speed of the physical interfaces on the product.
•
MAC Address — The MAC address of the physical interfaces on the product. Displays
as 0000.0000.0000 for module interfaces.
•
Name — The name of the port on the product.
•
Tag Mode — The tag mode (tagged, untagged, dual, or blank) of the physical
interfaces on the product.
•
Duplex Mode — The duplex mode of the physical interfaces on the product.
TABLE 128 Detailed Product Report fields and components (Continued)
