Event action definitions
39
Selecting source address products and ports
The Sources pane of the Add Event Action dialog box, shown in Figure 477 , allows you to enter the
IP address, the world wide name, or the name of the source to use as event senders. Alternatively,
you can select source address products to use as event senders from the available list of sources.
You can select from the available list of SAN products, IP products, or hosts by selecting the
appropriate tab.

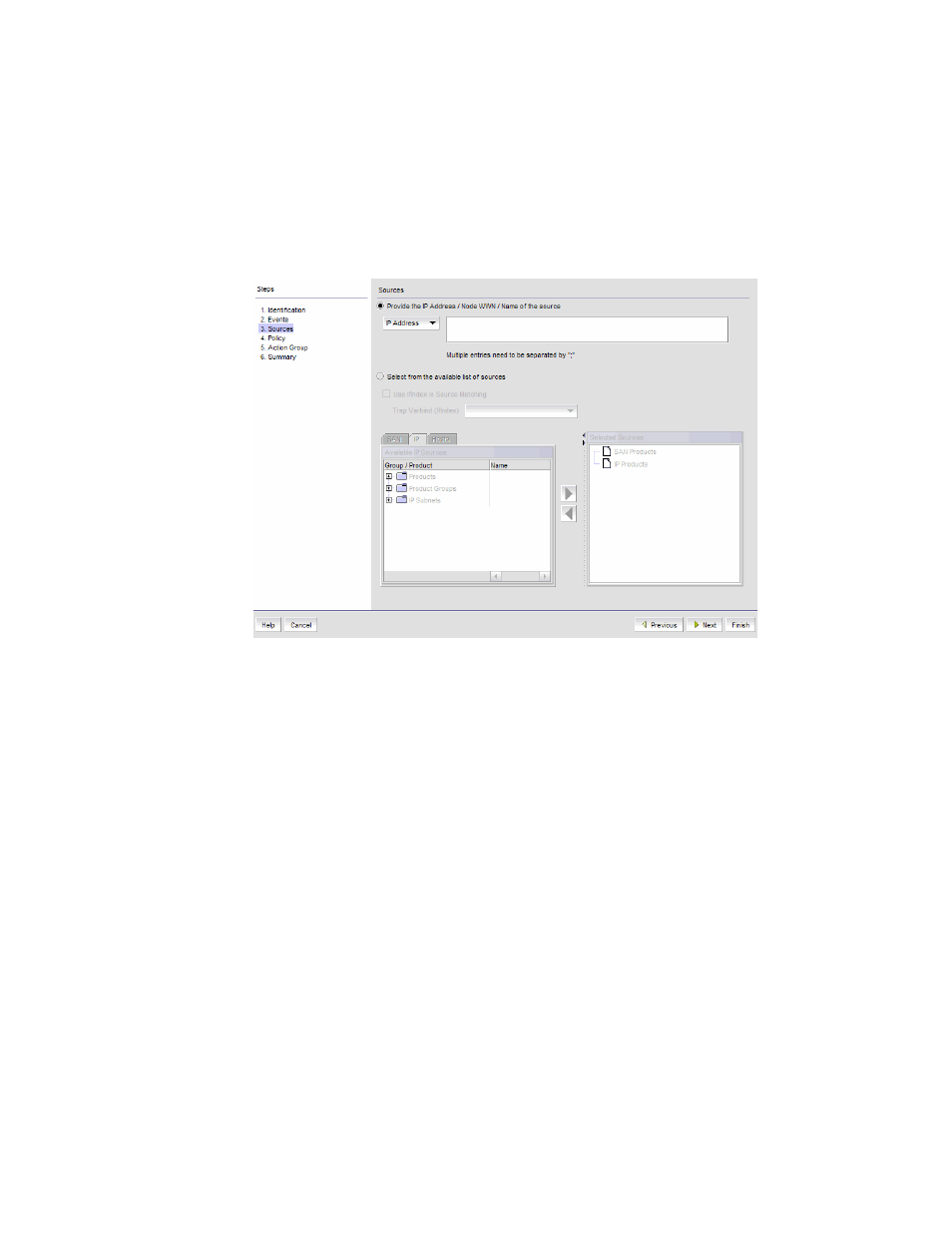

FIGURE 477 Sources pane of the Add Event Action dialog box
To configure the identity of the event action source, complete the following steps.
1. Select Monitor > Event Processing > Event Actions.
The Event Actions dialog box displays.
2. Click Next to advance to the Sources pane.
3. Click the Provide the IP Address / Node WWN / Name of the source button if you want to
manually enter the IP address, the world wide name (WWN), or the name of the source in the IP
Address field.
4. Click the Select from the available list of sources button as an alternative to manually entering
the IP address, WWN, or name of the source. You can select source address products or ports
to use as event senders from the available list of sources.
5. Select the Use If index in source matching check box if you want to use if Index to filter traps on
a specific port of a product; otherwise, the filter is applied globally on a product.
6. If the Use IfIndex in source matching check box is selected, select the varbind to be used from
the Trap Varbind (IfIndex) list.
