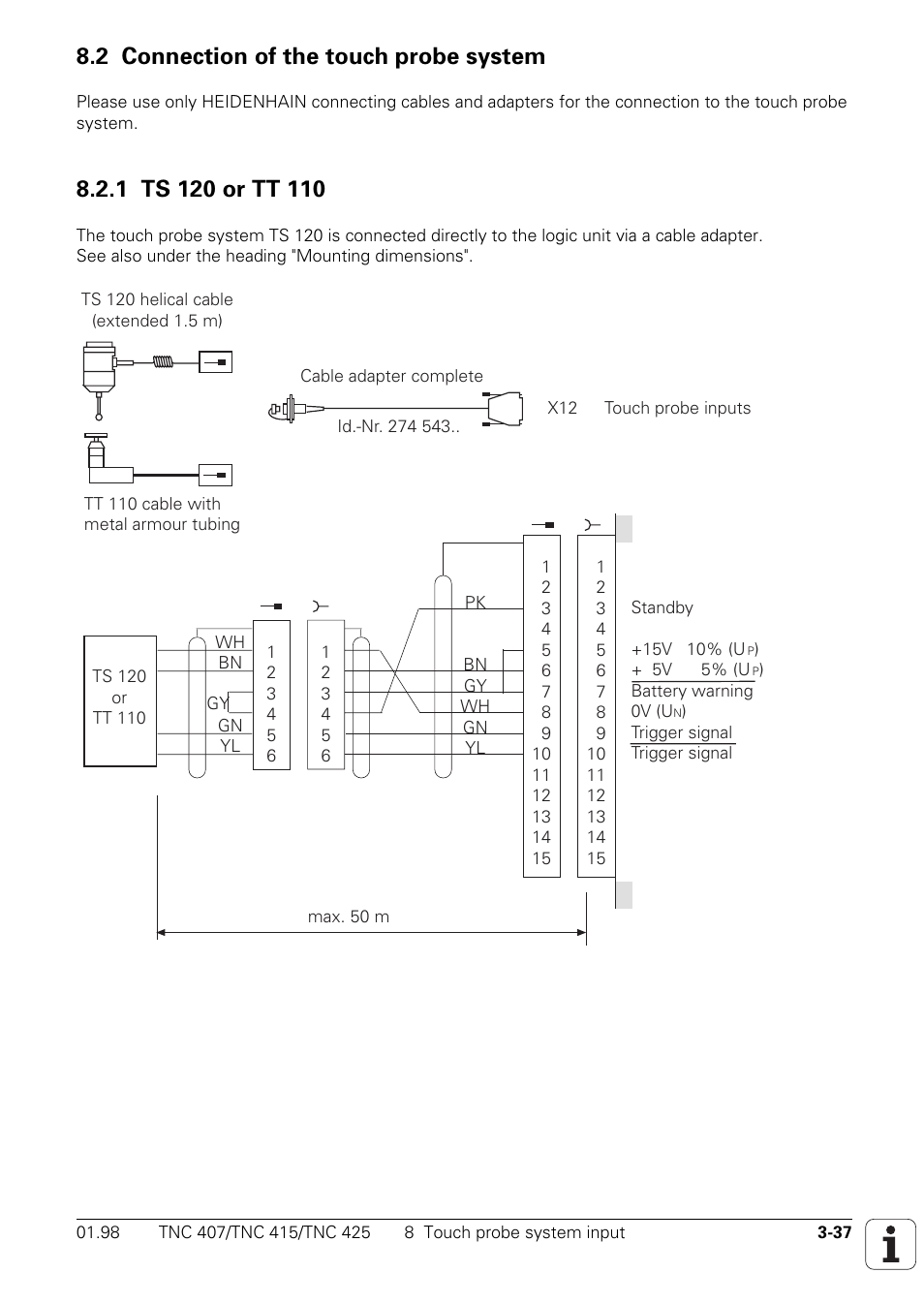

Connection of the touch probe system, 1 ts 120, X12 = touch trigger probe – HEIDENHAIN TNC 407 (243 020) Technical Manual User Manual

Page 67: X12 = triggering touch probe, 2 connection of the touch probe system

Text mode
Original mode

Connection of the touch probe system, 1 ts 120, X12 = touch trigger probe | X12 = triggering touch probe, 2 connection of the touch probe system | HEIDENHAIN TNC 407 (243 020) Technical Manual User Manual | Page 67 / 752
