Earthing plan, Signal ground, 3 earthing plan – HEIDENHAIN TNC 407 (243 020) Technical Manual User Manual

Page 50: Unit le power supply, Unit pl 410b, Machine encoders

Text mode
Original mode

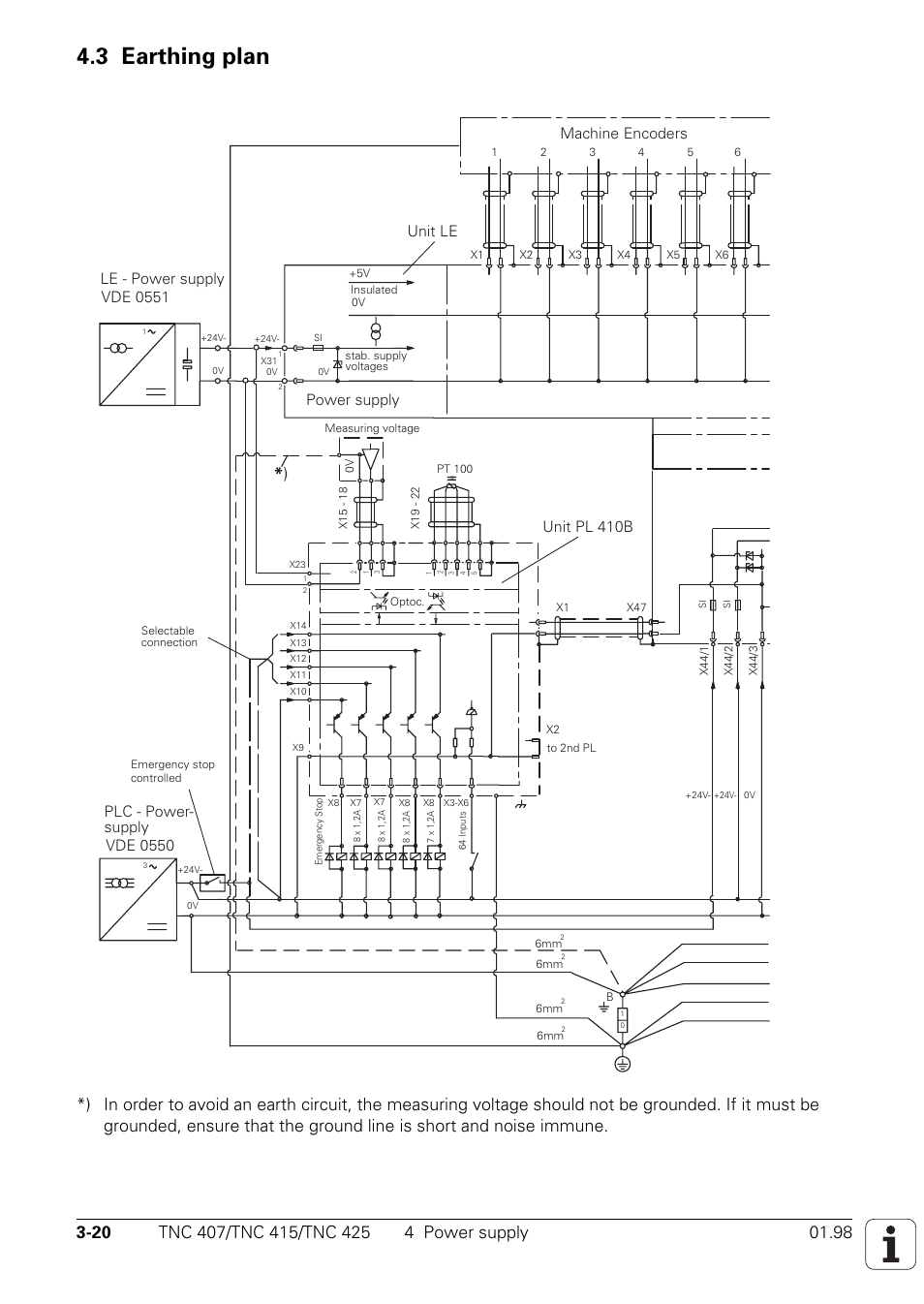

Earthing plan, Signal ground, 3 earthing plan | Unit le power supply, Unit pl 410b, Machine encoders | HEIDENHAIN TNC 407 (243 020) Technical Manual User Manual | Page 50 / 752
