When the master button is set to off area is not being recorded and the map will stop drawing.
The box will remain red until the button is pushed again to set it to auto.
R
UN
S
CREEN
- M
AIN
T
ABS
Tillage Tab
The tillage tab on the Run Screen contains controls related to
data logging during tillage operations.
• Use the master switch to turn area logging off and on.
• The Swath display allows you to change the amount of swath that
is being mapped for area calculation. The full implement width is displayed as 10 sections and can be
changed in 10% increments. To adjust the swath width use the arrow keys on either side of the swath display.
The full swath button allows you to go from any partial swath back to the full swath position.
Field Notes Tab
Map Tab
F
IELD
B
UTTON
(W
HILE
N
OT
L
OGGING
)

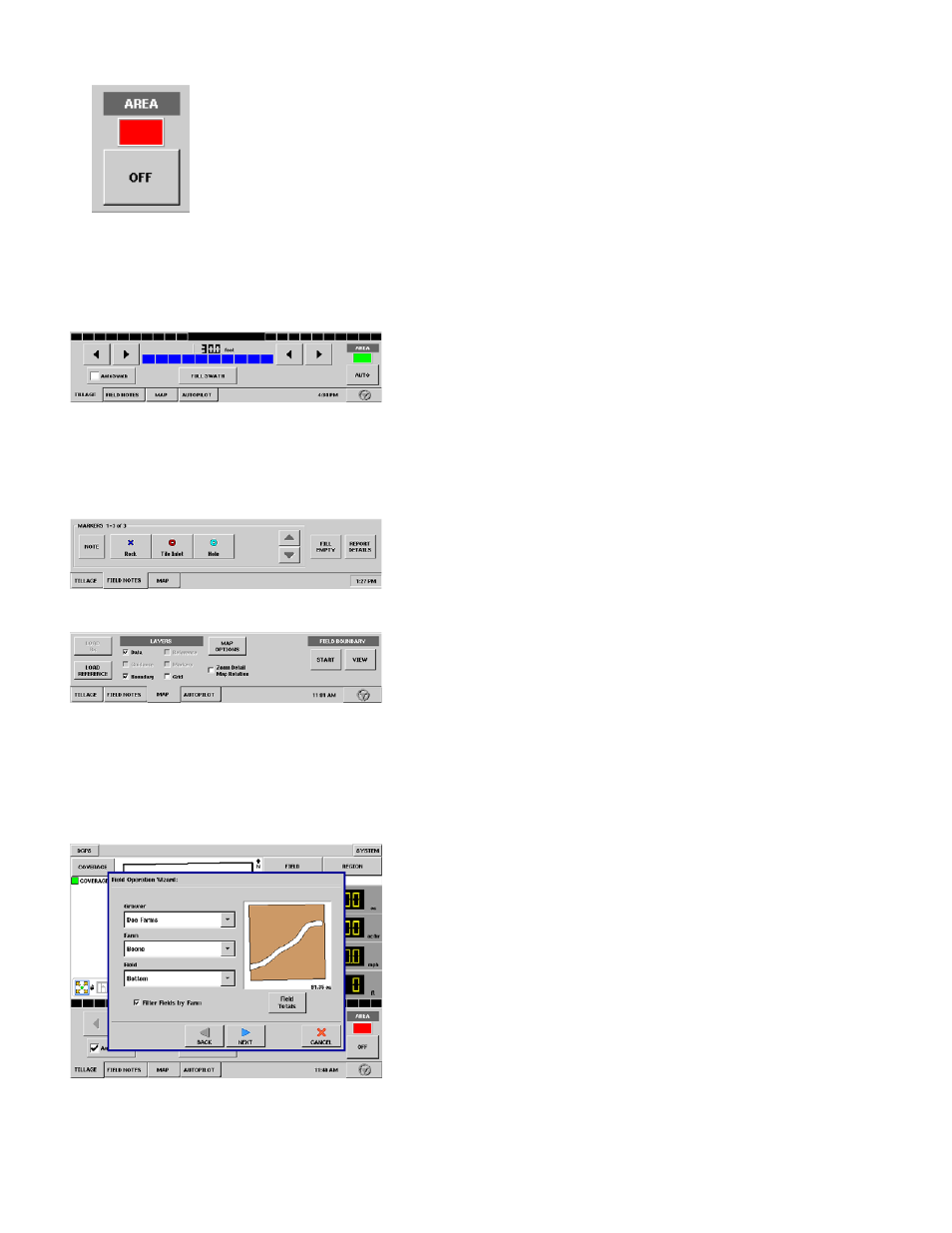

Start of tillage in a field is accomplished by setting up a Field Operation at the Run Screen. This process
is similar regardless of the type of field operation currently taking place. To begin, press the Field button
on the Run screen, and the Field Operation Wizard appears, as shown.
1. Select Grower, Farm, Field
Choose the field for tillage by making the proper selections from
the Grower, Farm, and Field list boxes.
If the Filter Fields by Farm check is cleared, the display will
display all fields in the Field list box regardless of what farm the
fields are associated with.
Press NEXT to continue.
