258

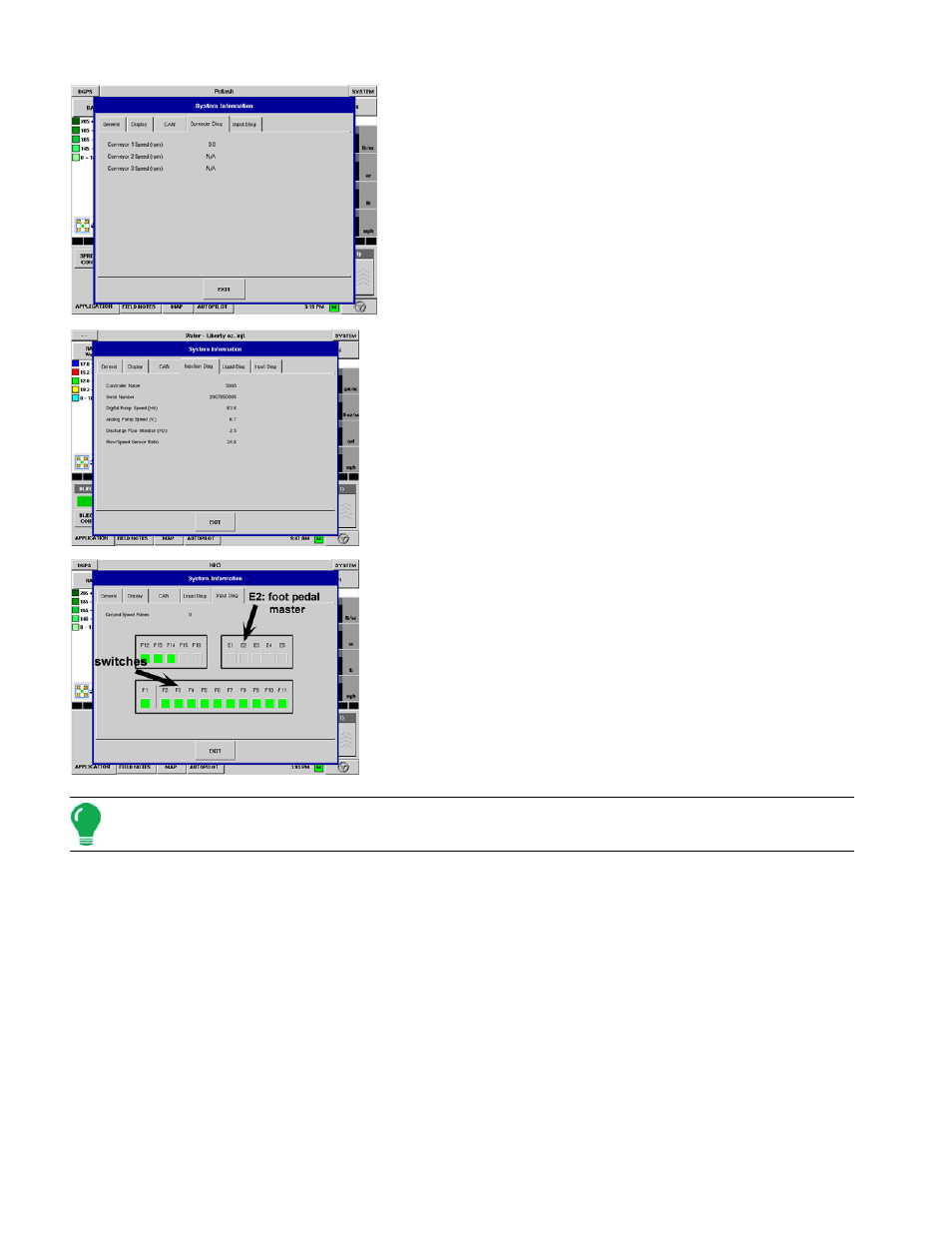

Spreader Diagnostics (for Spinner Spreaders)
The Spreader Diagnostic Tab includes the speed of the
conveyor, shown in revolutions per minute (rpm).
Injection Diagnostics (for Direct Injection)
The Injection Diagnostic Tab provides raw values from sensors
verifying that the pump’s output is working.
• Digital Pump Speed: Displays volume information, shown in Hz.
• Analog Pump Speed: Displays varying voltage as pump speed is
increased or decreased.
• Discharge Flow Monitor: Displays information showing that flow is
being discharged for every piston stroke.
• Flow/Speed Sensor Ratio: The ratio that the display derived for
calibration.
Input Diagnostics
The Input Diagnostic Tab lists the number of Ground Speed
Pulses coming in from the radar to the Auxiliary Module.
Additionally, the bottom row of boxes lists the active switches.
These color-coded boxes display the following diagnostics:
• Green: The switches connected to the Auxiliary Module are in the On
position.
• Black: The switches connected to the Auxiliary Module are in the Off
position.
• Grey: The switches are not connected to the Auxiliary Module.
Note: The E2 position is the indicator for the foot pedal master.
T
ROUBLESHOOTING
T
ROUBLESHOOTING
D
IRECT
C
OMMAND
L
IQUID
A
PPLICATIONS
Boom indicators on the run screen do not turn blue.
1. Make sure ground speed is registering a value greater than zero on the display.
2. Verify a target rate greater than zero is entered into the display.
3. Check the switch status found on the Run screen under System and Input Diagnostics. As the boom
switches are turned on and off, the Input Diagnostics window should change from black to green (if they
do not, then refer to the installation instructions to verify boom switch connections).
4. Check high current connection into the Liquid Control Module.
