Ag Leader InSight Ver.8.0 Users Manual - Manual (Page 268)

254

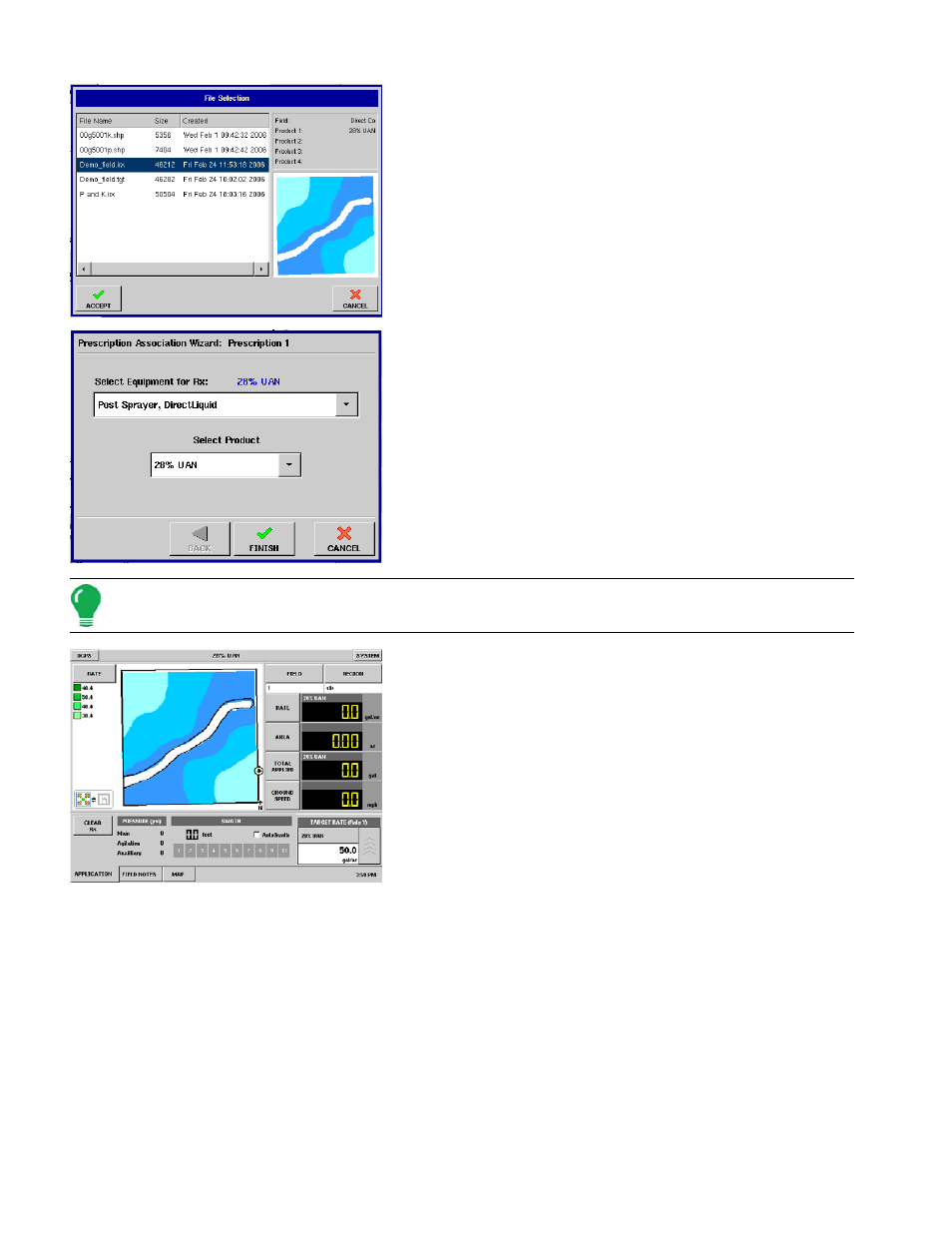

1. .irx File Selection
Press the Load Rx on the Map Tab of the Run Screen to load
a variable rate prescription file.
Select the desired *.irx file from the file selection dialog
shown at left.
2. Select Product Component
The Prescription Association Wizard appears, as shown at
left.
• From the Select Equipment for Rx (top), select the control channel
that will dispense the product (28% in this instance).
• From the Select Product list (bottom), make the selection that
matches the units that the Rx map was exported for. For example,
the map could have been made to represent gallons of 28% UAN or
pounds of actual nitrogen.
To continue, press Finish.
Note: In situations where a multi-product file is being used, repeat this step for all channels of product control.
3. Run Screen After Loading Rx File
Run Screen after loading a product recommendation file for
28% UAN.
