For help with the adding a New Implement Wizard, see “Adding A New Implement” on page 82 .
Press Next to continue.
3. Select Implement Switch Polarity
If you will be using an implement switch, choose standard or reversed polarity. If an implement switch is not
in use, select None.
Press Next to continue.
4. Select Ground Speed Source
Select your ground speed source. If you will be using GPS as the primary you will need to select a
secondary source.
Press Next to continue.

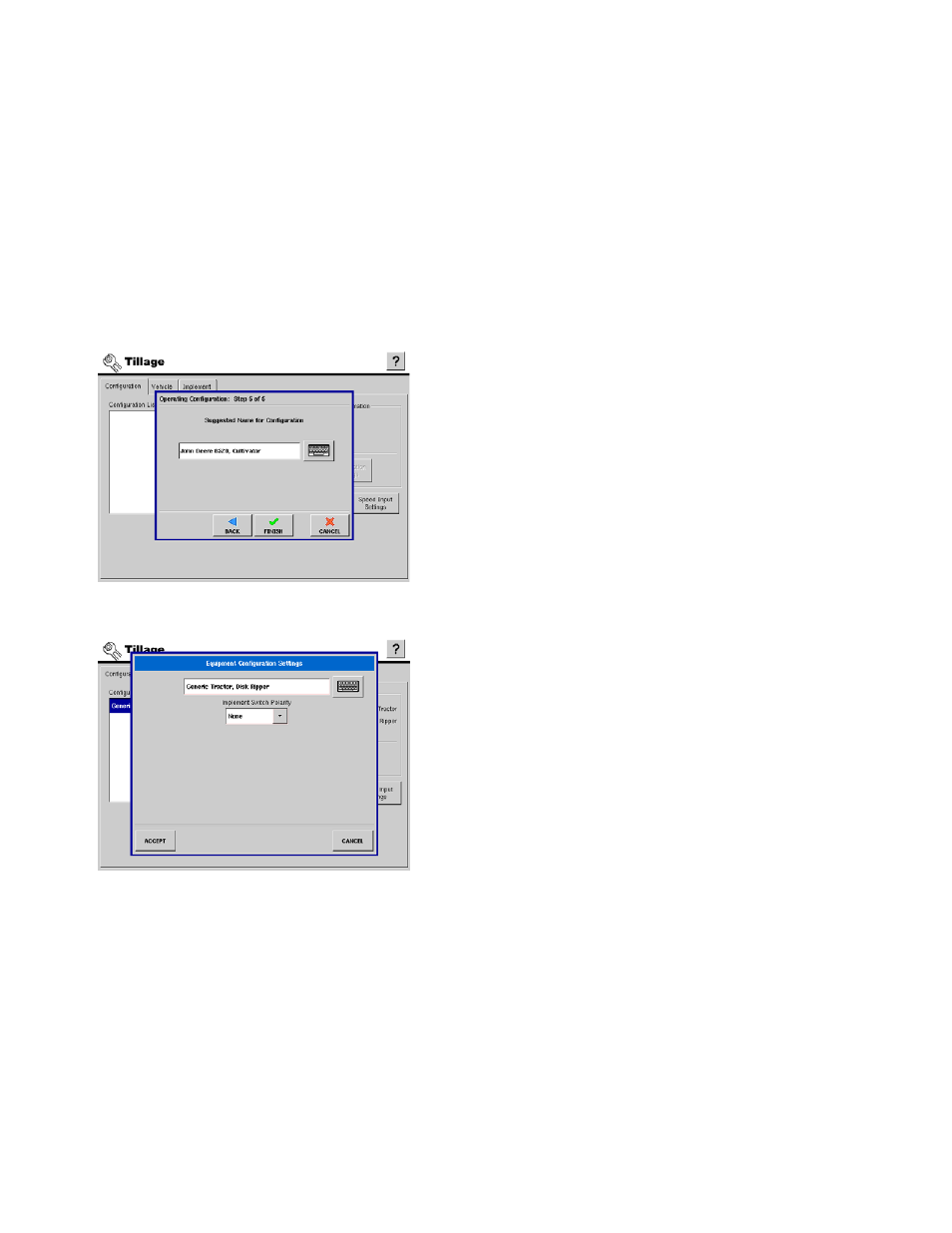

5. Edit Configuration Name
Use the Keyboard button to edit the suggested configuration
name. Press Finish to complete the configuration process.
C
ONFIGURATION
S
ETTINGS
To access the equipment configuration settings screen first
highlight a configuration in the list and then press the
Configuration Settings button.
Implement Switch Setting
If you will be using an implement switch choose standard or
reversed polarity. If an implement switch is not in use, select
none. Press Accept when done.
C
ALIBRATE
D
ISTANCE
If you are not using GPS for ground speed, then after you have created a configuration you must
calibrate the ground speed input for accurate speed and area calculations. If you are using GPS, it is
recommended to calibrate distance in the event of GPS loss.
Select a Configuration from the list and press the Calibrate Distance button to calibrate the radar,
track or wheel speed sensor. This calibration is specific to that combination of Vehicle, Implement, and
Controller.
