87
T
ILLAGE

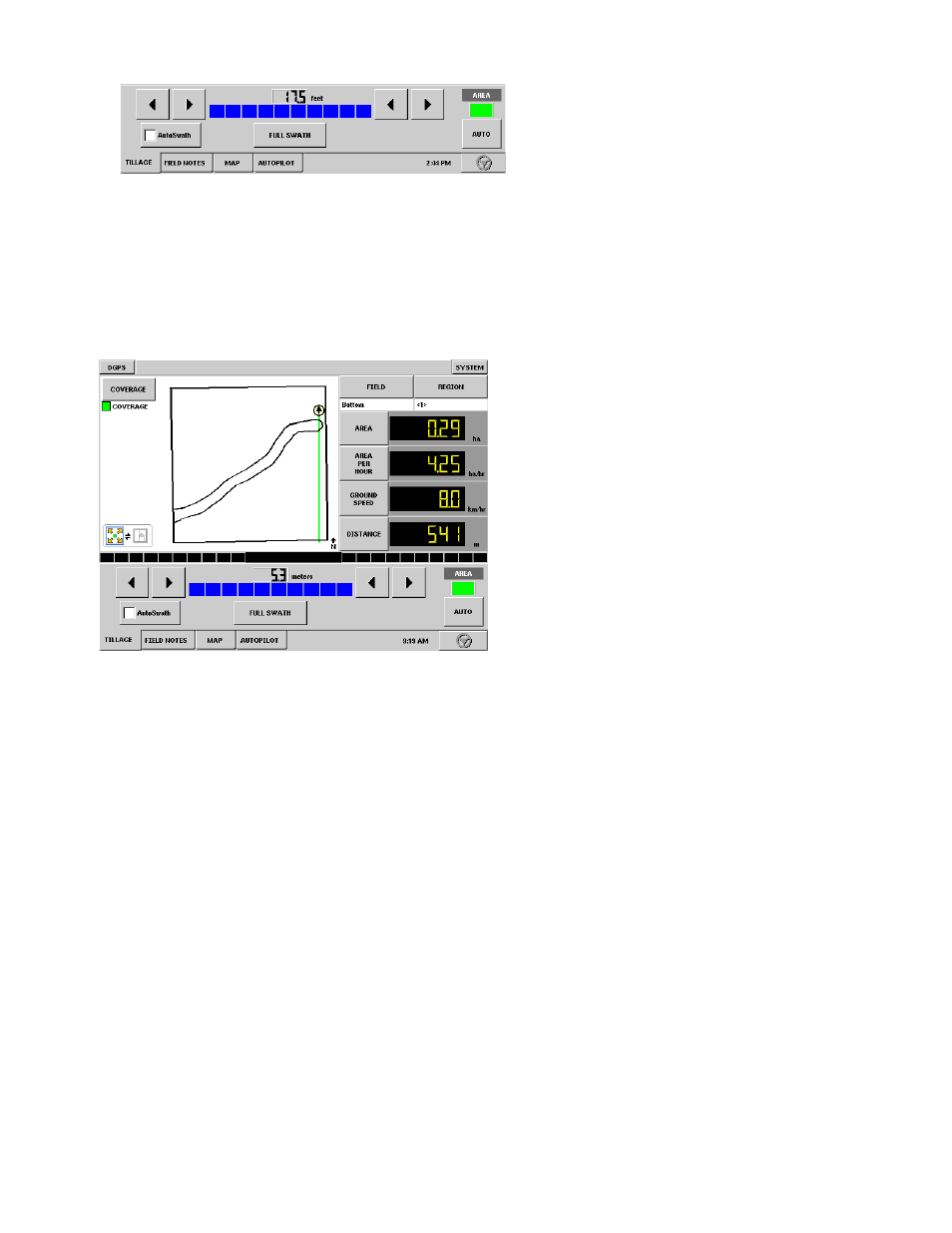

Select the AutoSwath Checkbox
To enable the AutoSwath feature, select the
AutoSwath checkbox, located at the bottom left-hand
side of the Run screen, above the tabs.
The section width represented by the indicator bar
was automatically configured for you when you created the configuration on your implement. At times, this
section width may change if you make adjustments to the AutoSwath's sensitivity settings. These sensitivity
levels compensate for varying degrees of GPS performance.
For more information, see “AutoSwath Sensitivity Settings” on page 78 .
T
ILLAGE
C
OVERAGE
M
AP
During a tillage operation, a coverage map
showing all worked areas of the field will be
displayed. Coverage area mapping is turned off
and on by the implement switch or on-screen Area
logging button..
